Powered navigation for urban deliveries, small markets and limited stock areas.

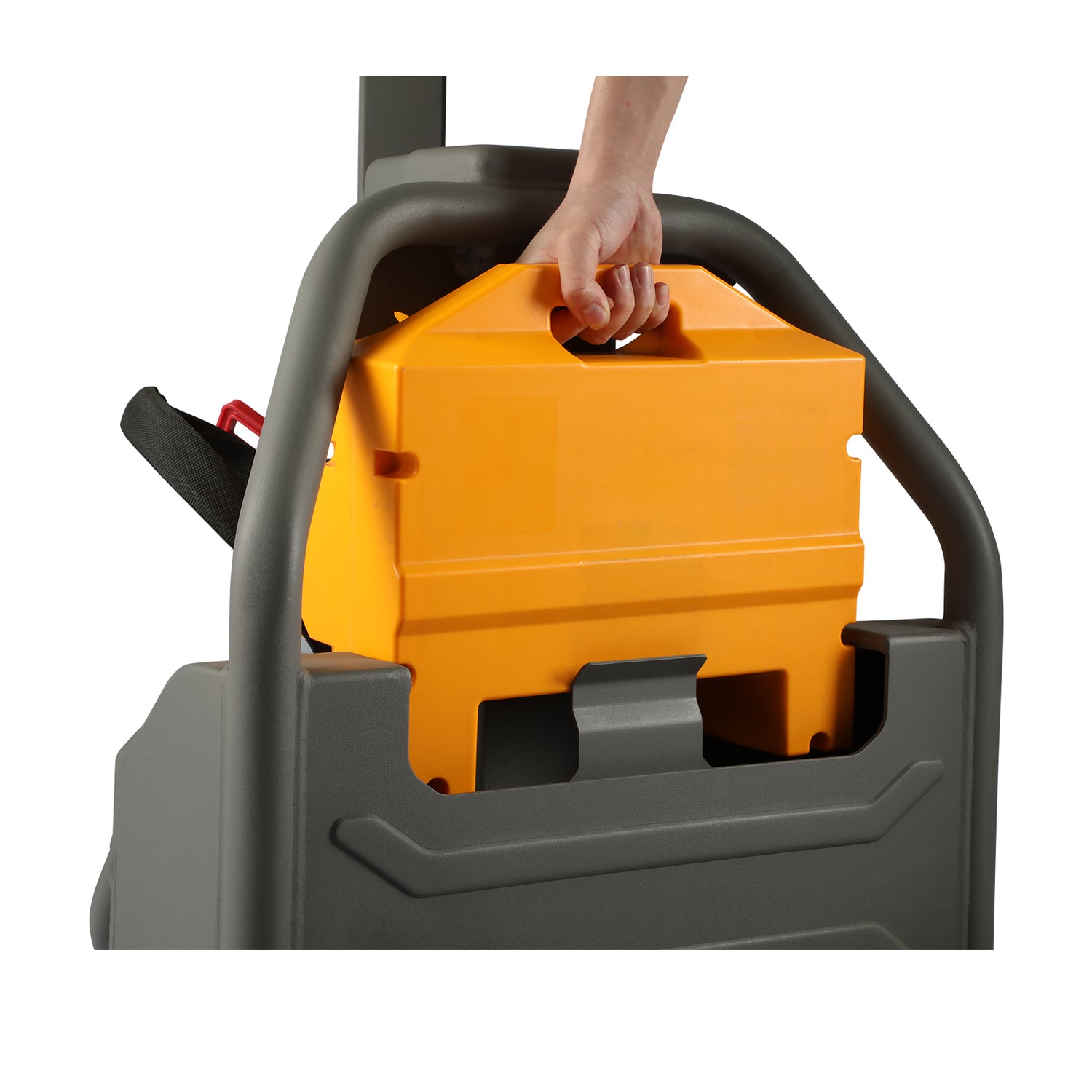

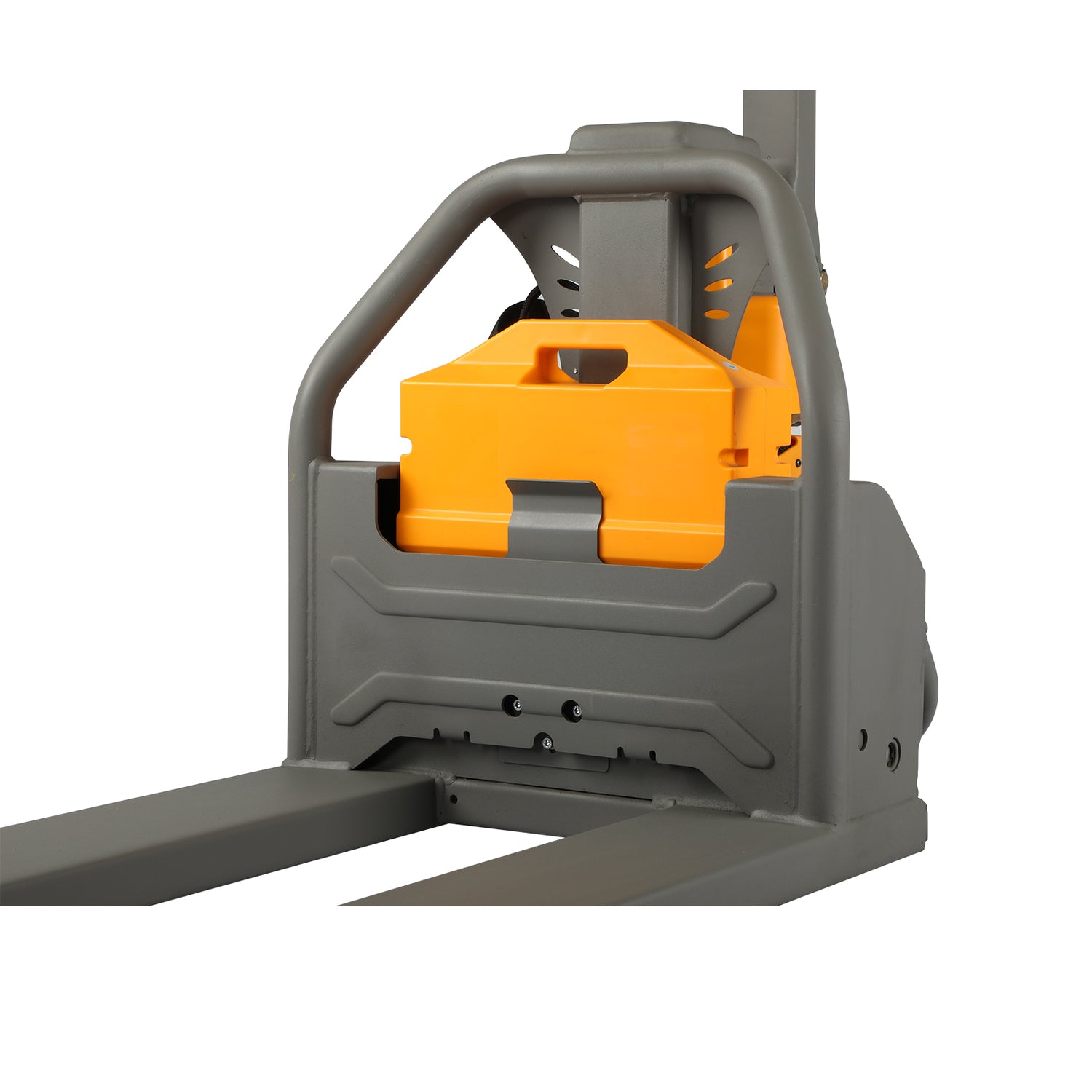

- 10 seconds to change battery reduces downtime.

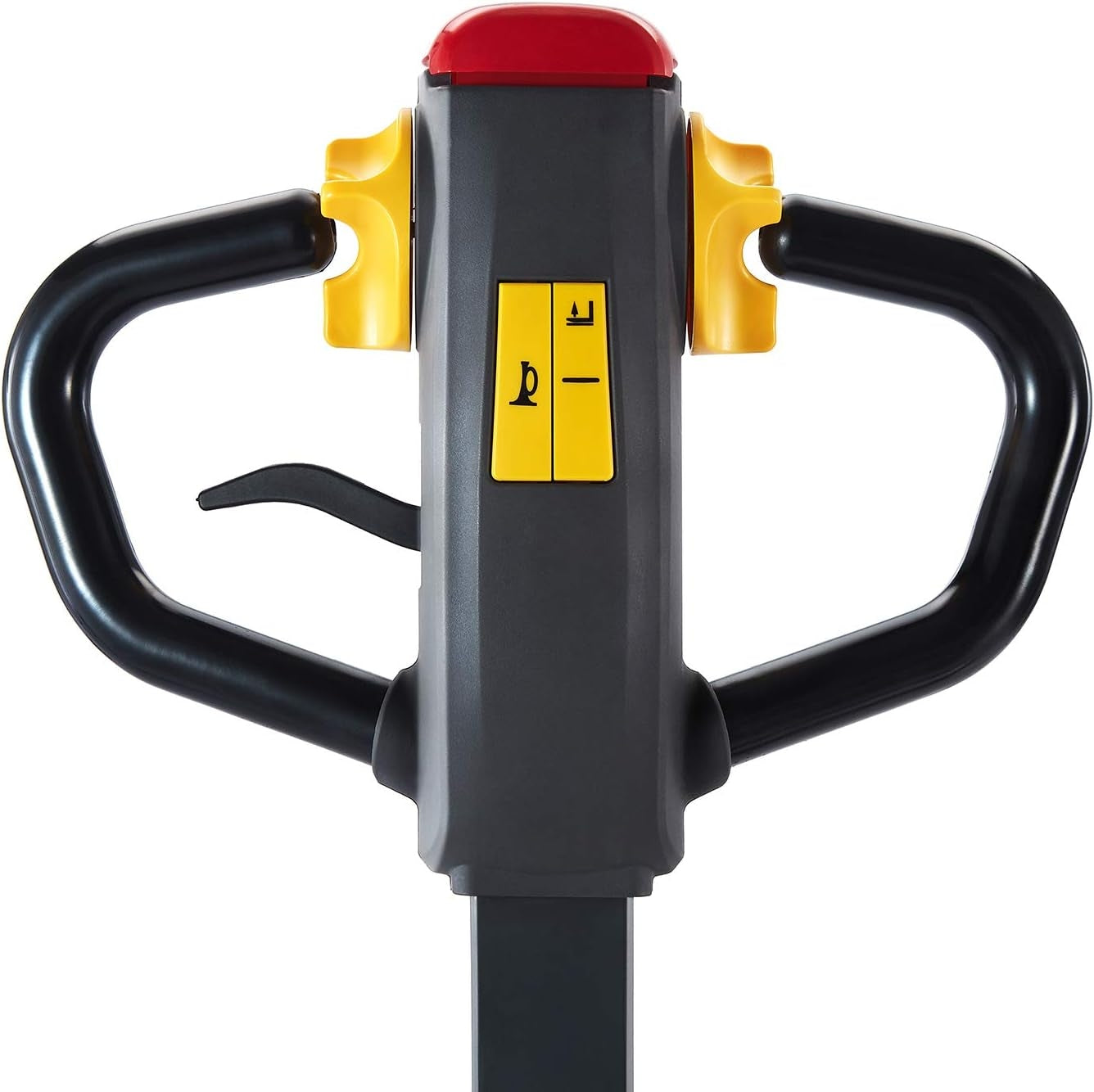

- Push-button lift control and forward/reverse thumb wheels on handle.

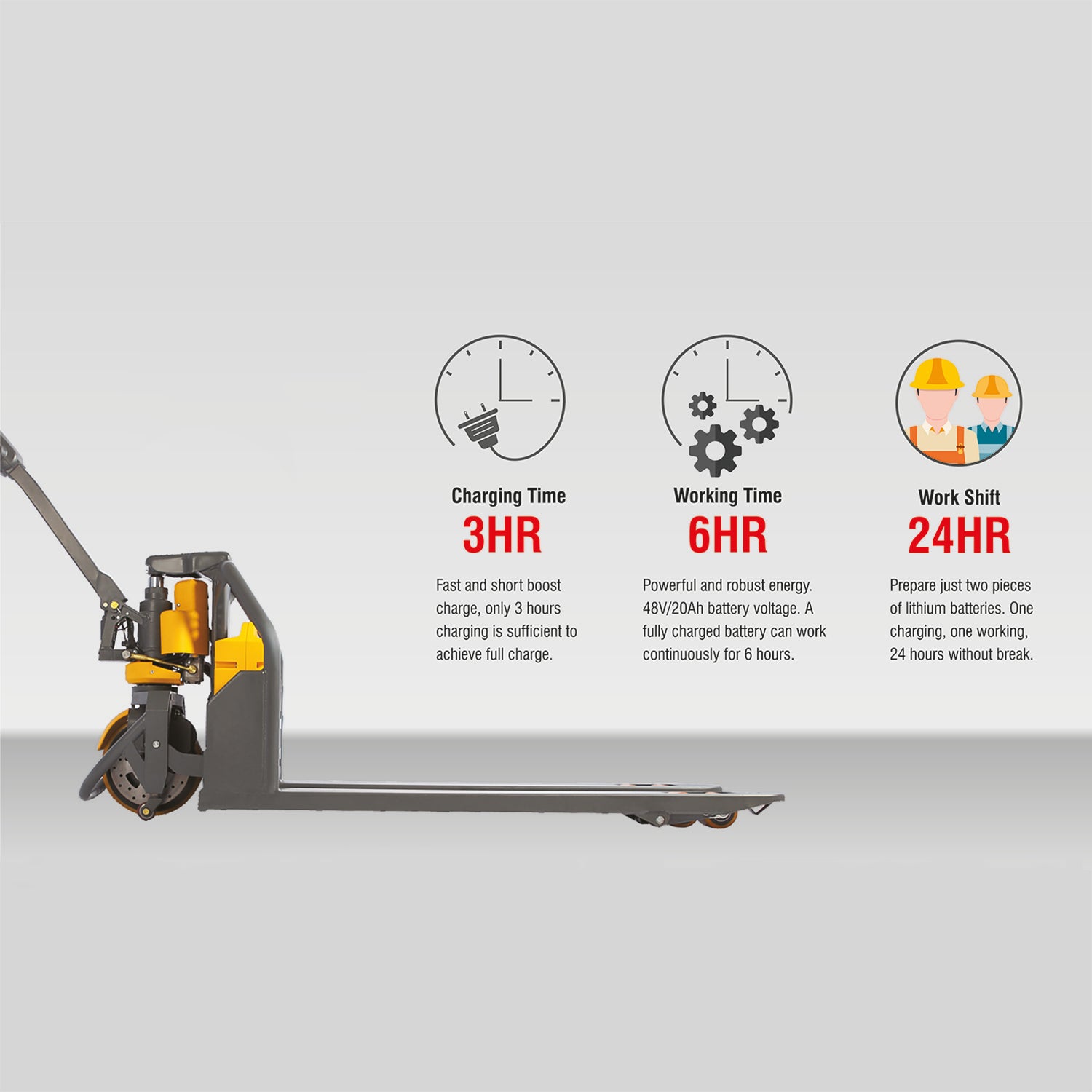

- 4-6 hours service per charge. 3 hour charge time. It may vary depending on the usage and environment.
- 24 hours without break just need one extra battery.
- Gradeability(laden/unladen): 5%/20%

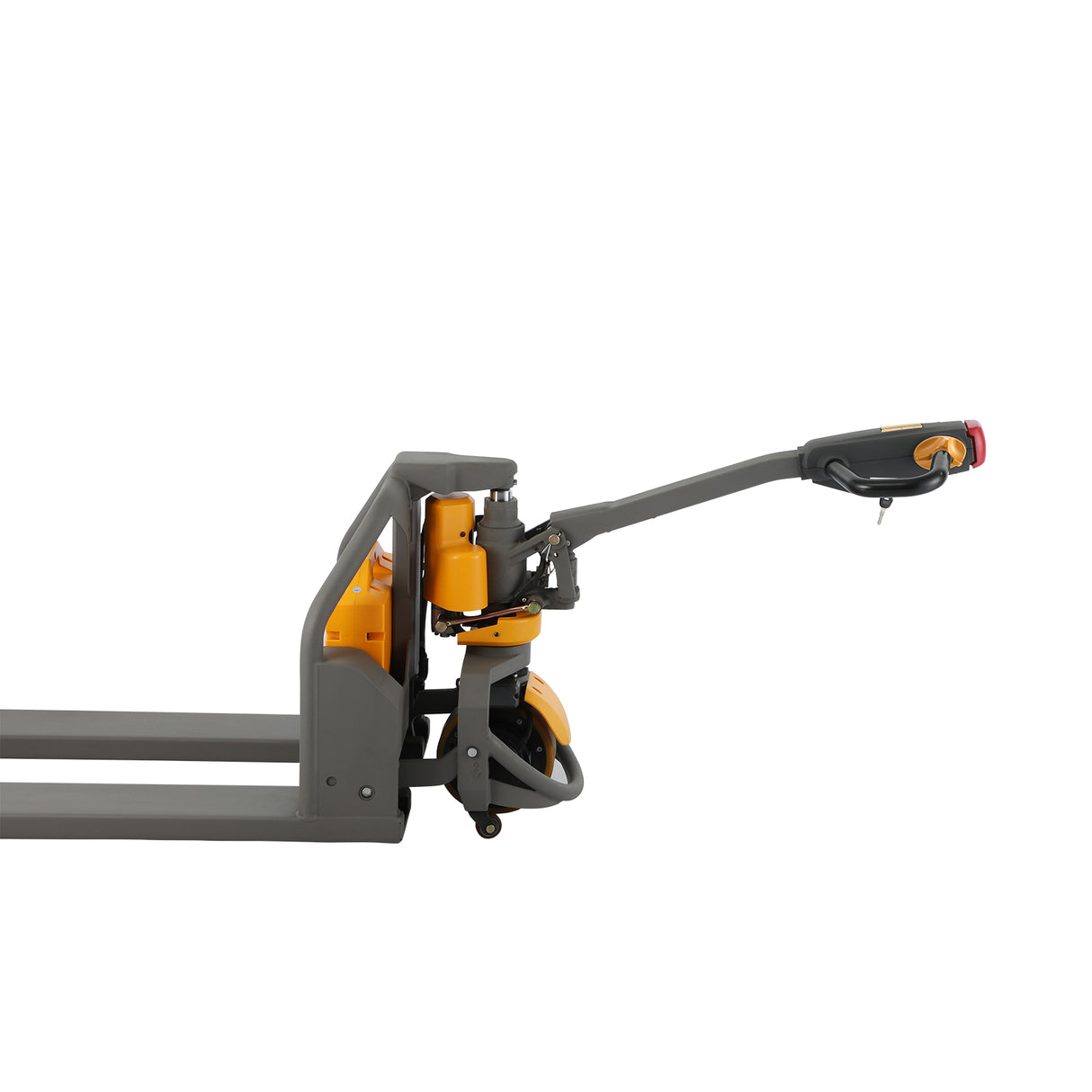

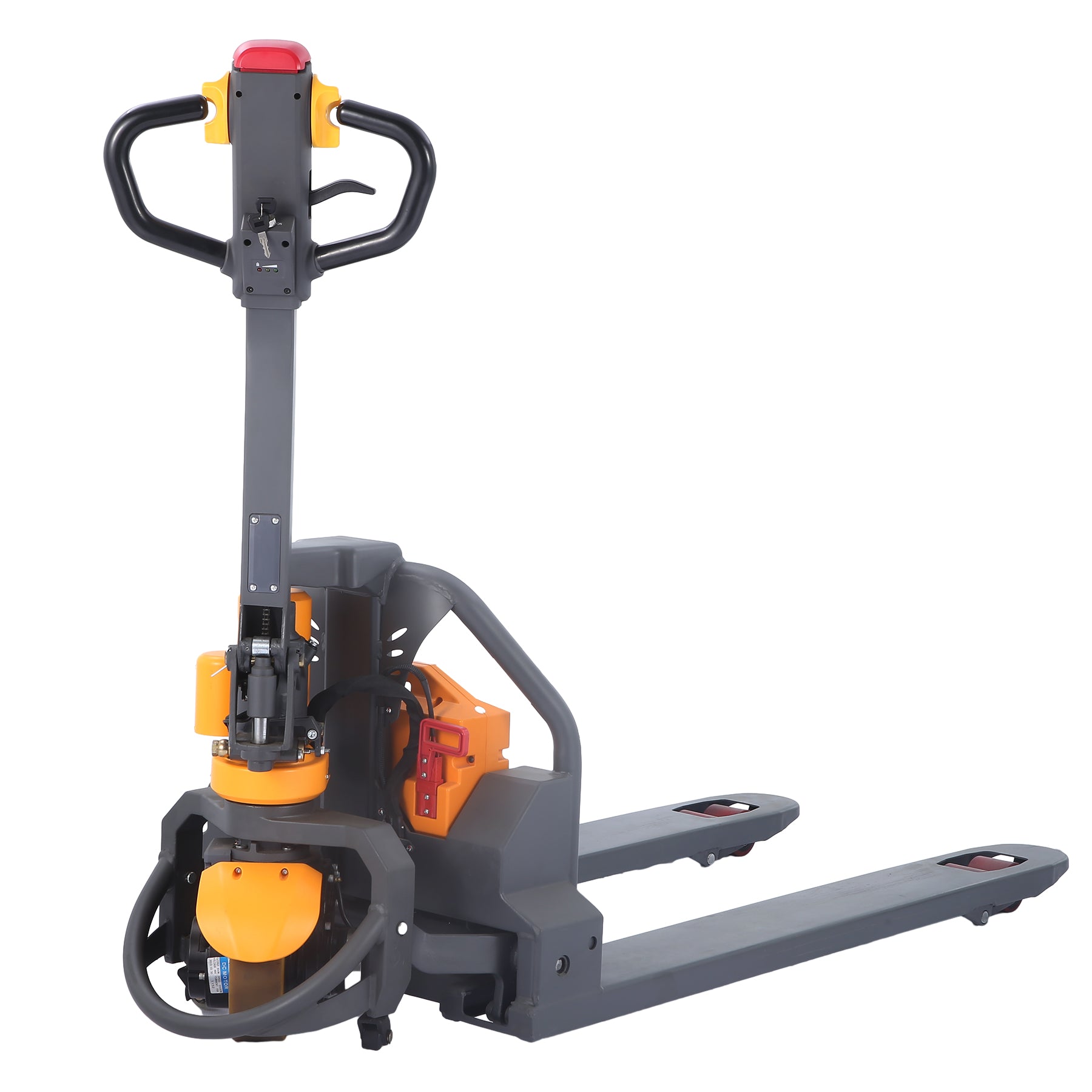

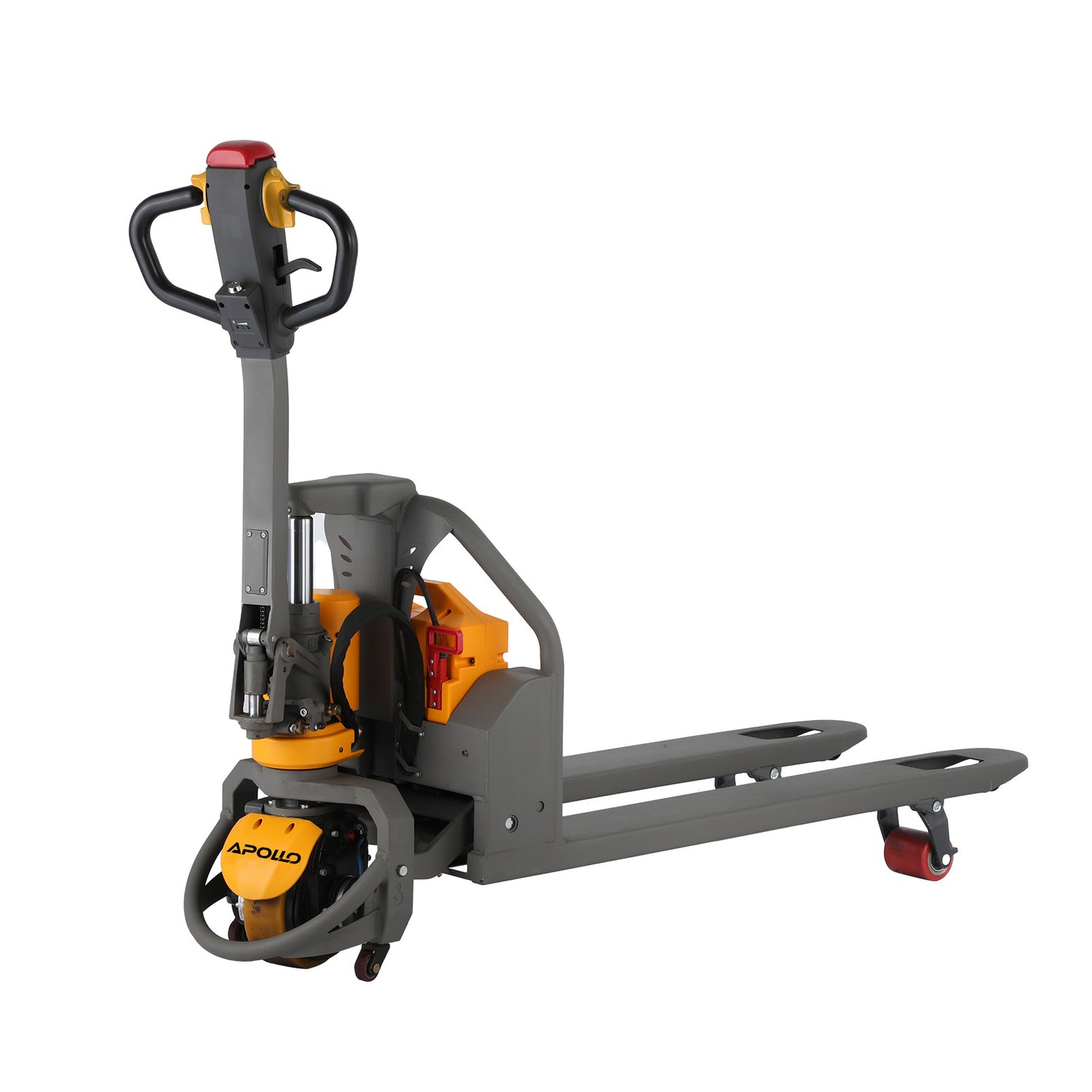

BATTERY POWERED PALLET TRUCKS
MODEL NO. | FORK SIZE L x W | LOAD CAPACITY | WT.(LBS) | RECHARGEABLE BATTERY |
DRIVE MOTOR |
WHEEL DIAMETER |
PRICE EACH |
A-1018 | 48x27" | 3,300 lbs. | 298 | 48V/20AH | .65 kw DC | 9.8"/3.15" | $2,290 |
A-1019 | 45x21" | 3,300 lbs. | 288 | 48V/20AH | .65 kw DC | 9.8"/3.15" | $2,250 |

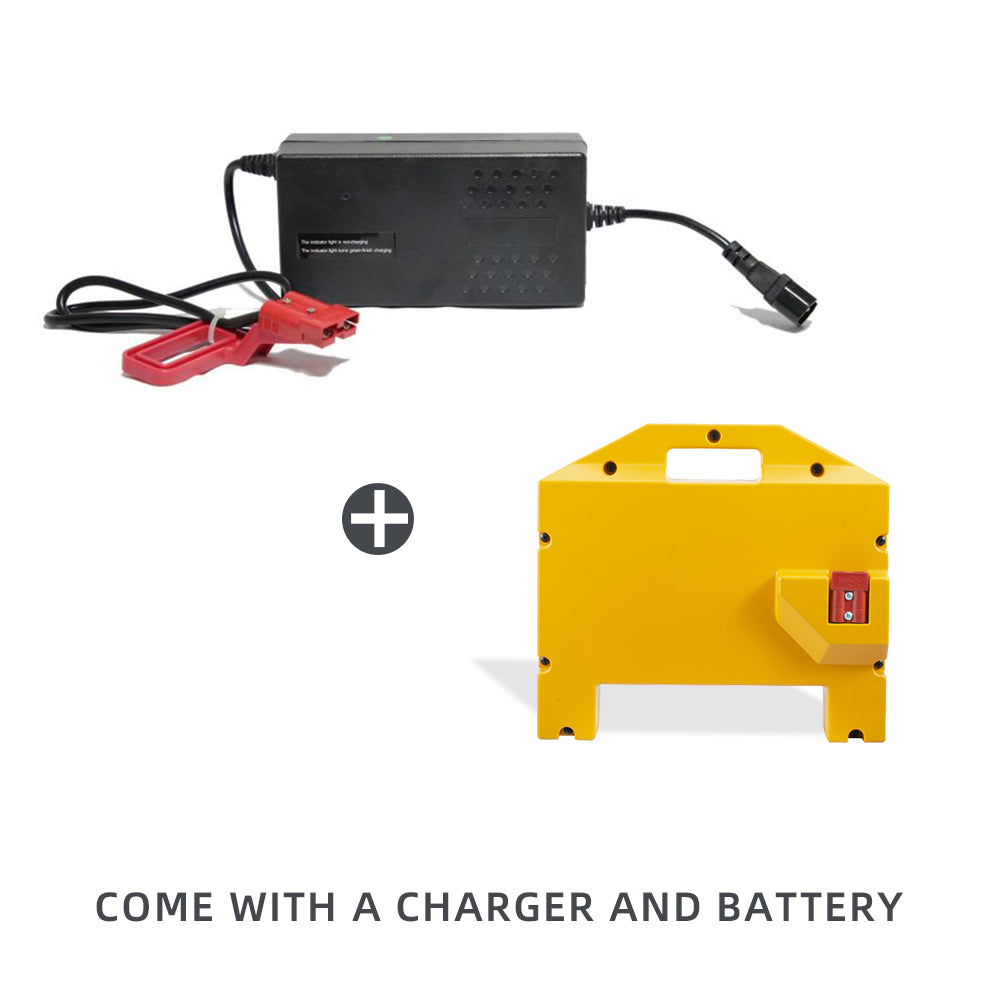

*Includes one lithium ion battery and charger
REPLACEMENT PARTS
Model No. | Description | Specification | WT.(LBS) | Price Each |

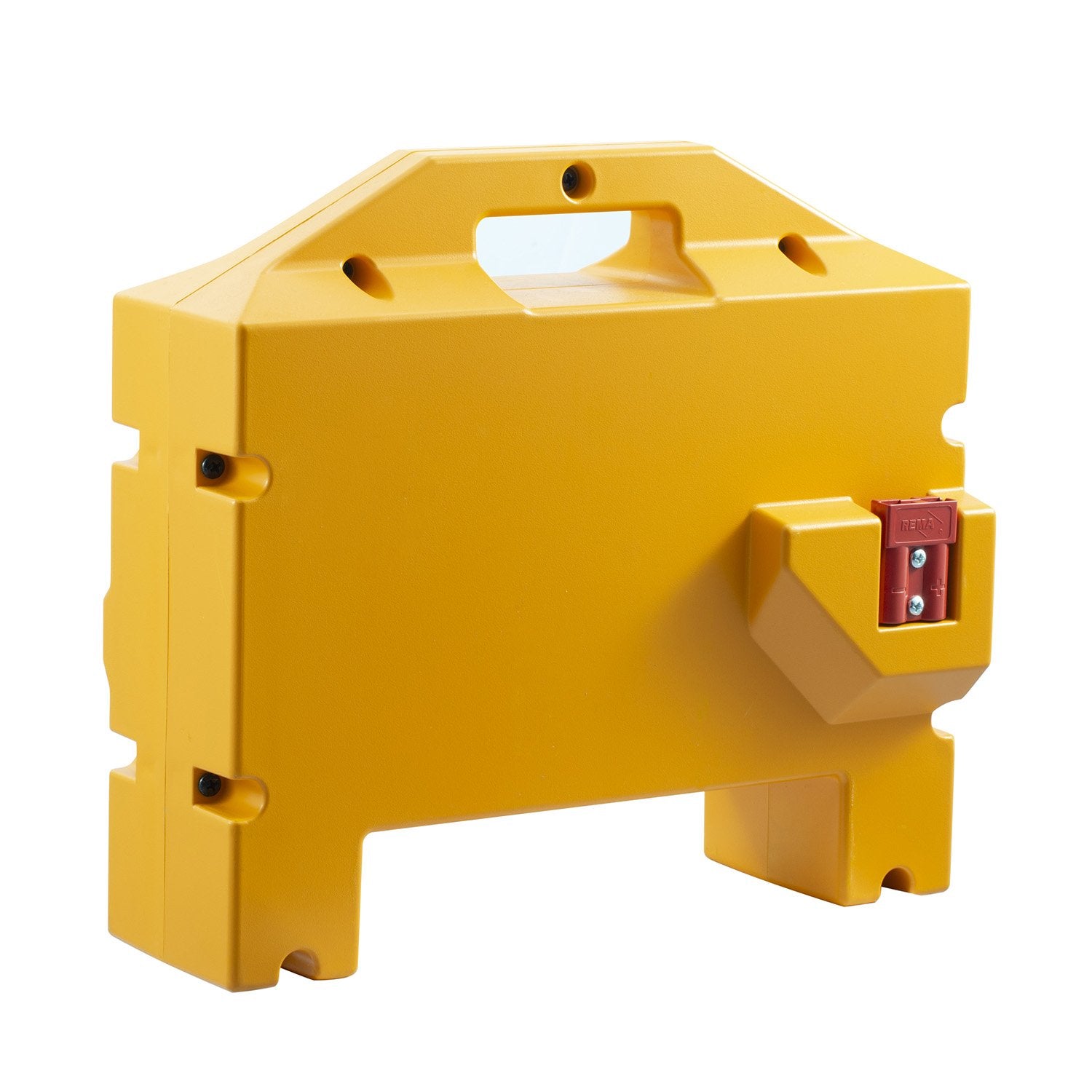

S-1003 | Replacement Lithium Ion Battery | 48V/20AH | 22 | $579 |
S-1010 | Replacement Charger | 48V/6A | 11 | $280 |
S-1016 | Controller | PVM48S05 | $293 |
Unable to find what you're looking for? Please contact us.
Additional Info
DIMENSIONS
Overall: 66.6" x 27"x47.24" (L xWx H)
FORKS
- Actual: 48*27"
- Width: 6.3"
- Thickness: 1.8"
- Distance Between Forks (Inside): 14.37"
- Lowered height: 3.3''
- Raised height: 7½"
FEATURES
Non-marking polyurethane wheels.
SPEED
- Empty: 3.1mph
- Loaded: 2.98 mph
- 180° steering arc

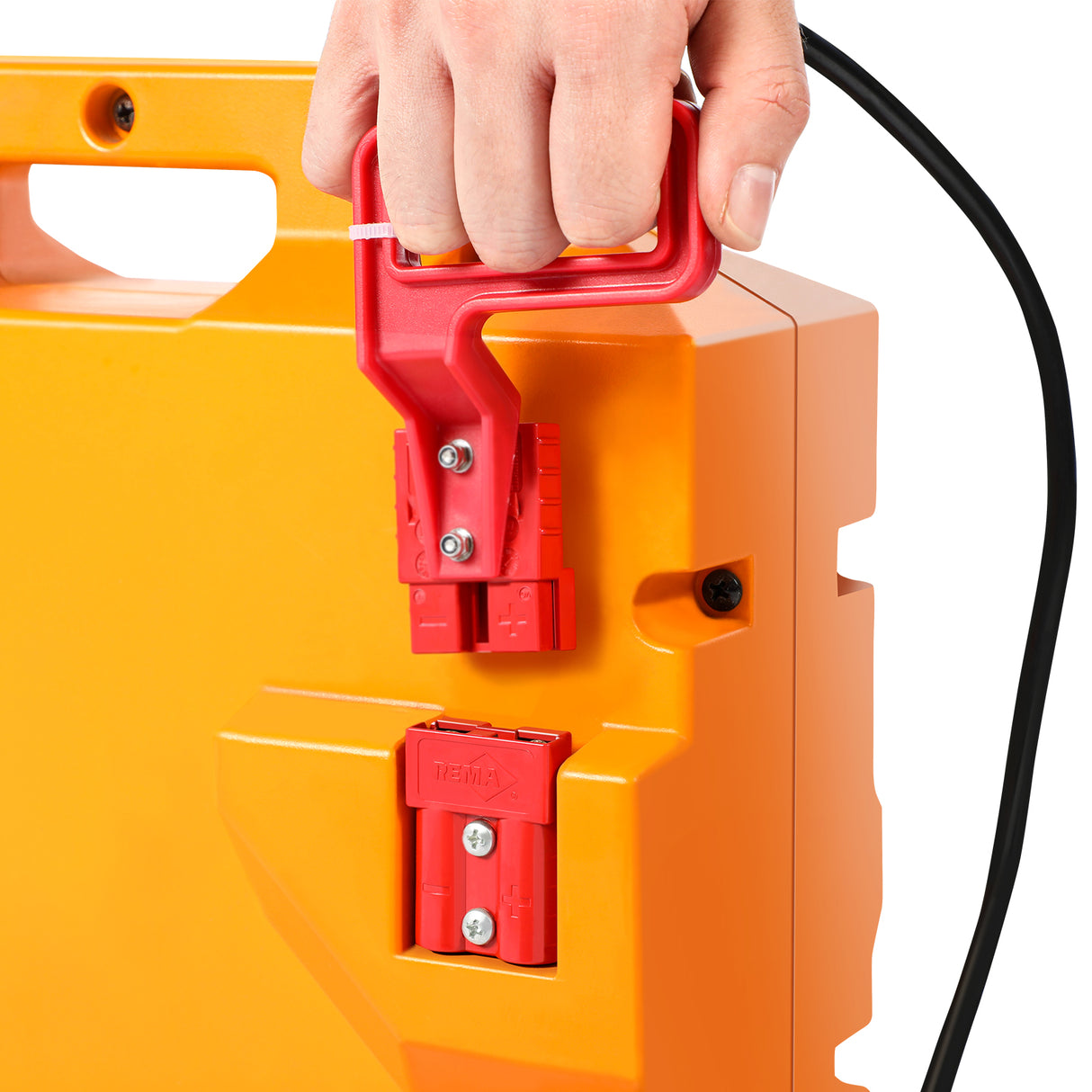

CHARGING
- Charger plugs into standard 110V-120V outlets.
- Fully charge battery before use to avoid damaging cells.
- Charge the truck once a month even it's not in use.
- LED light on the outside of the charger frame shows battery charge status.
- Green: Fully Charged
- Yellow Flash: Charging
SPECIFICATIONS
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Temperature range of working environment below 50˚F~104˚F.

Click Here :A-1018 Detail Page
Click Here :Charge Electric Lithium Pallet Trucks.
Apollo Forklift provides 1 Year limited warranty upon the date of product’s receipt, easy-wearing parts and human damages are not covered by warranty. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty.
1- Within 30 days of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided. In case our after-sale department determines the product needs to return for repair, all round-trip shipping costs will be borne by us."
2- Within 30 days-1 year of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided, if the product needs to return for repair as necessary, the customer needs to bear half of the shipping costs.
3- After 1 year of the receipt, if the product exists any quality problem, free technical guidance will be provided, however the customer needs to pay for the replacement parts, and if needs to return for repair, related maintenance costs as well as all round-trip shipping costs will be charged, which will be quoted in depends
Please note for spare parts orders, the warranty period is 3months, battery is 6months.
- We deliver the goods from multiple warehouses and using different freight carriers depending on customer’s location.
- The standard shipping cost is based on delivery to a freight terminal or to a commercial business address with self-unload type.
- The standard shipping cost is excluded the additional services, such as Lift Gate Service, Residential Delivery Service, or Phone Call Service, please specify at the time of ordering.
- For remote or difficult to reach addresses it is possible that additional shipping charges can apply. Including but not limited to Alaska Hawaii, Puerto Rico.
- For delivery to Canada and Mexico country, involving with customs clearance policies and procedures, pls contact with our sales before purchase.
