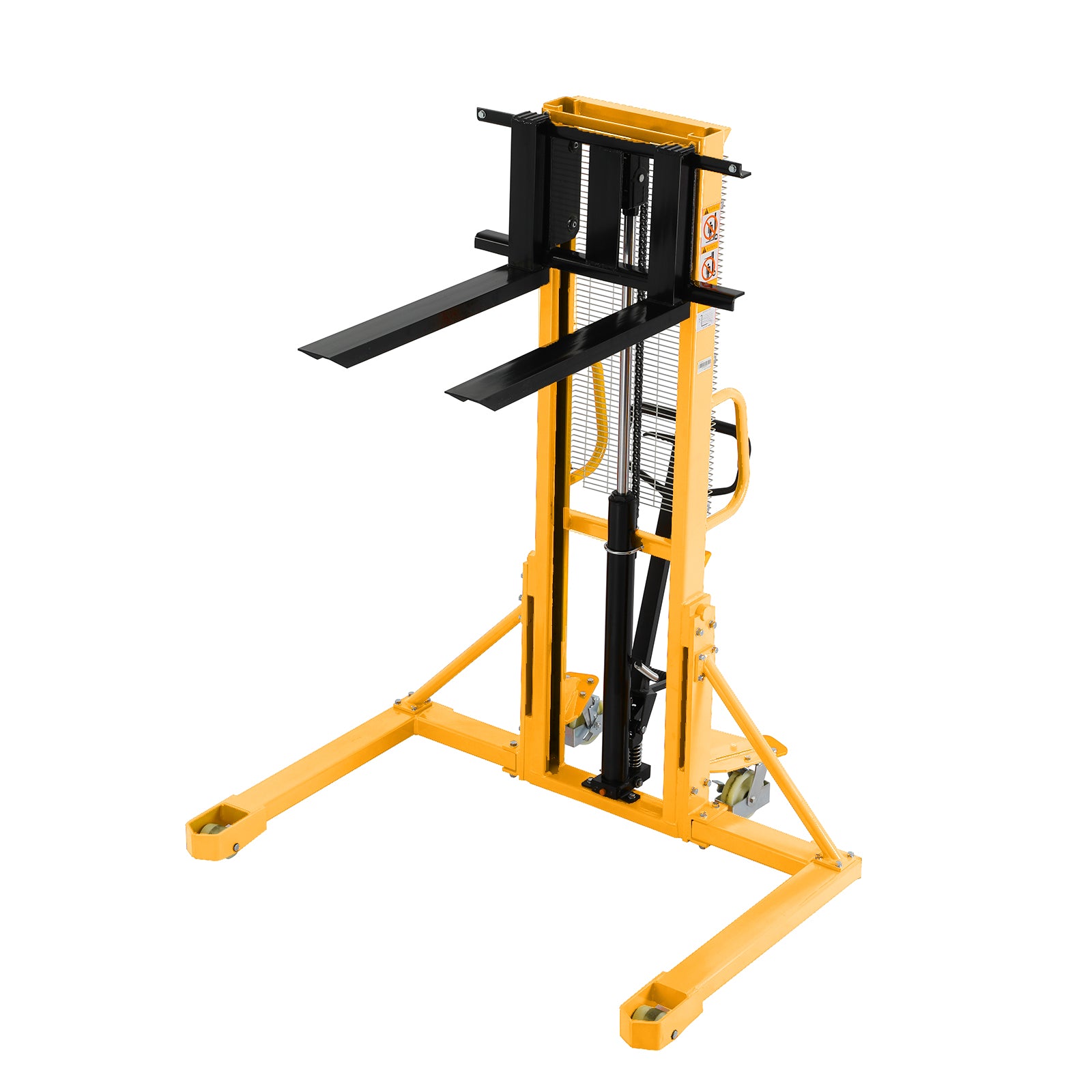

- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability
- High efficient pumps makes the control easier to operate
- Metal grid protects user from lift chains
- With safety wheel guard and brake system to ensure safety during operation
- Manually raise and lower loads with foot pump and handle operation.
| *MANUAL STACKERS | |||||
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | PRICE EACH |
| A-3004 | 1100 lbs | 63'' | 5.8'' | 490 lbs | $1799 |
| A-3005 | 2200 lbs | 63'' | 5.8'' | 647 lbs | $1999 |
DIMENSIONS:
- Overall width: 60''
- Overall length: 52.7''
- Load center: 19.7''
- Recommended Aisle Width: 77.8"
- Turning radius: 47.2''
MAST:
- Lifting height: 63''
- Mast lowered height: 78.7''
- Mast extended height: 82.7''
FORKS:
- Adjustable width: 7.9-29.3''
- Thickness: 1.9''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 2.8''
STRADDLE LEGS:
- Inner width: 51.1''
- Height: 4.3''
FEATURES:

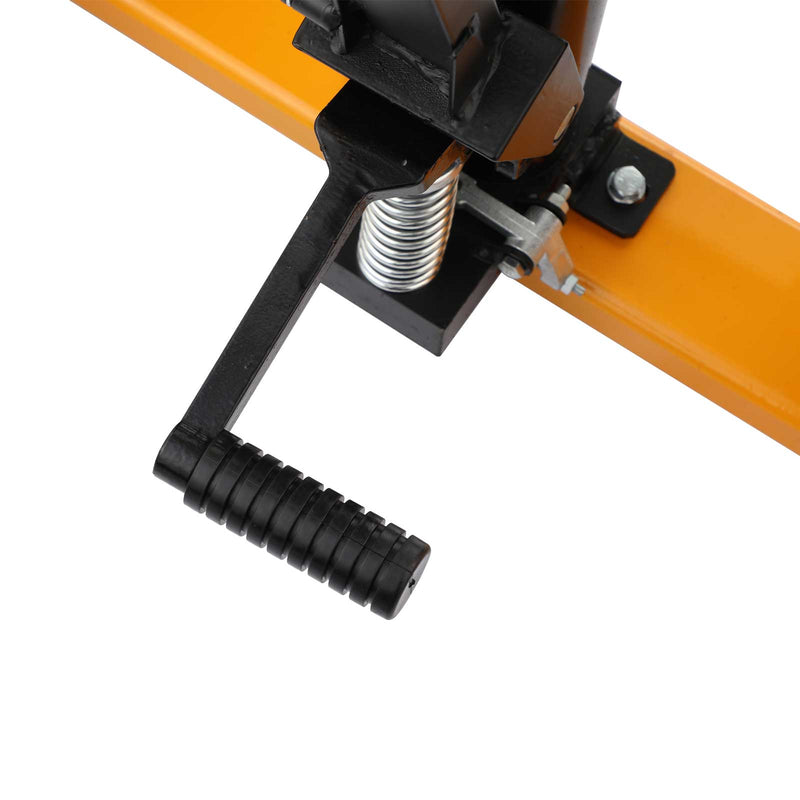

- Foot Operated Pump: Lift Height nearly 1'' per stroke
CLICK HERE :Assemble the staddle leg of Manual Stacker.
