Straddle Legs 2200lbs Cap. 63" Lift Height

APOLLOLIFT SKU: A-3005
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
wix SDJAS pallet.jpeg
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height
Straddle Legs 2200lbs Cap. 63" Lift Height

Straddle Legs 2200lbs Cap. 63" Lift Height

APOLLOLIFT SKU: A-3005
Type
Regular price $1,750.00
/
Shipping calculated at checkout.
  • Excellent Quality
  • Professional after-sales service
  • Good packing
  • Secure payments
  • In stock
  • Inventory on the way
  • Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
  • High quality steel mast and strong steel construction ensures rigidity and durability
  • High efficient pumps makes the control easier to operate
  • Metal grid protects user from lift chains
  • With safety wheel guard and brake system to ensure safety during operation
  • Manually raise and lower loads with foot pump and handle operation.
*MANUAL STACKERS
MODEL NO. CAPACITY  LIFTING HEIGHT  WHEEL DIAMETER WEIGHT  PRICE EACH
A-3005 2200 lbs 63'' 5.8'' 647 lbs 1750
A-3004 1100 lbs  63'' 5.8'' 490 lbs 1580

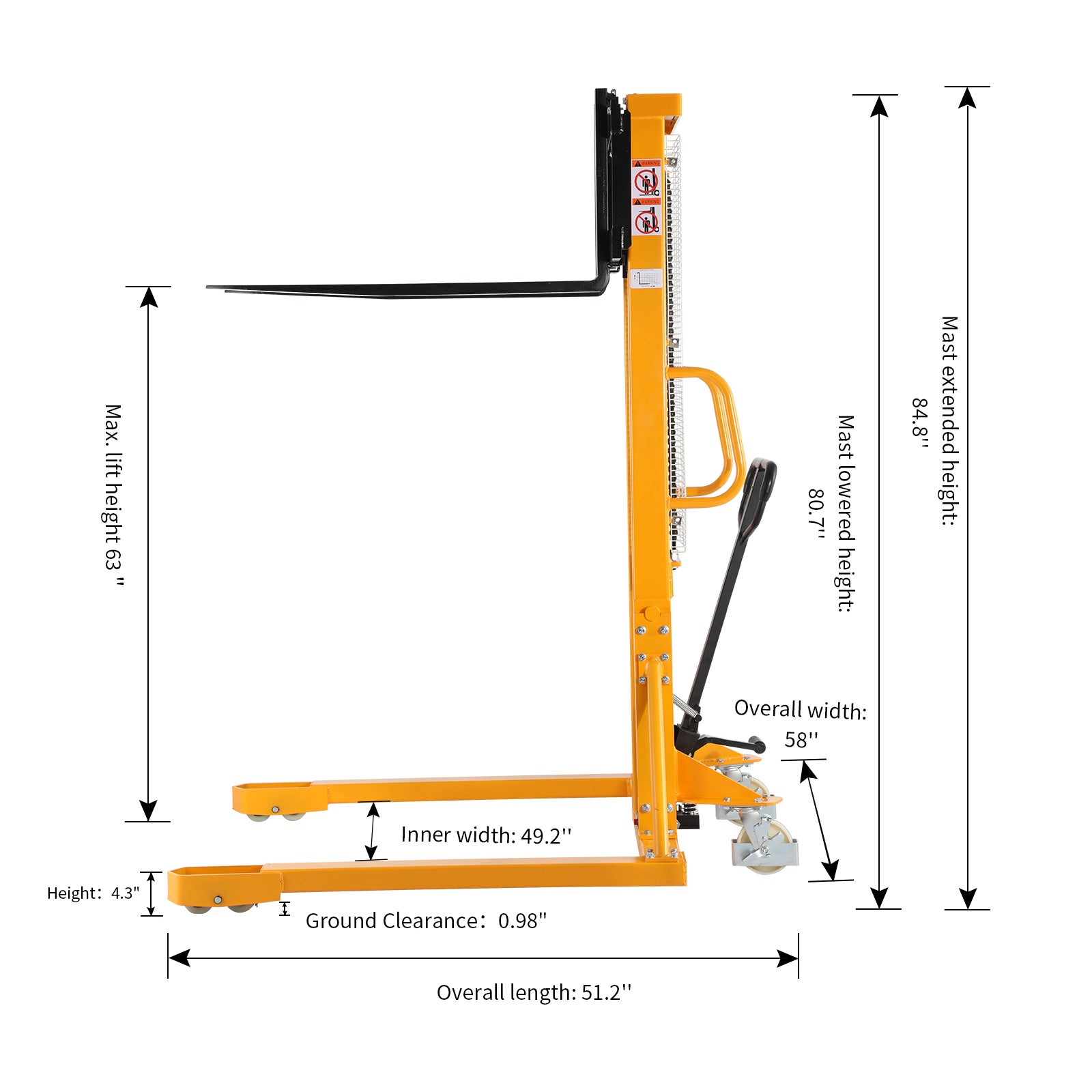

DIMENSIONS:

  • Overall width: 58''
  • Overall length: 51.2''
  • Load center: 19.7''
  • Recommended Aisle Width: 77.8"
  • Turning radius: 47.2''
MAST:
  • Lifting height: 63''
  • Mast lowered height: 80.7''
  • Mast extended height: 84.8''
FORKS:
  • Adjustable width: 7.9-37.4''
  • Thickness: 1.2''
  • Width: 3.94''
  • Length: 31.5''
  • Fork lowered height: 2.8''
STRADDLE LEGS:
  • Inner width: 49.2''
  • Height: 4.3''
FEATURES
  • Foot Operated Pump: Lift Height nearly 1'' per stroke

CLICK HERE :Assemble the staddle leg of Manual Stacker.

Assemble the forged fork of stackers.

1 YEAR

Parts covered.

Excludes: Wheels, axles & bushings

1 YEAR PLUS:

Contact Apollolift for assistance locating repair facilities.

Customer responsible for all charges.
