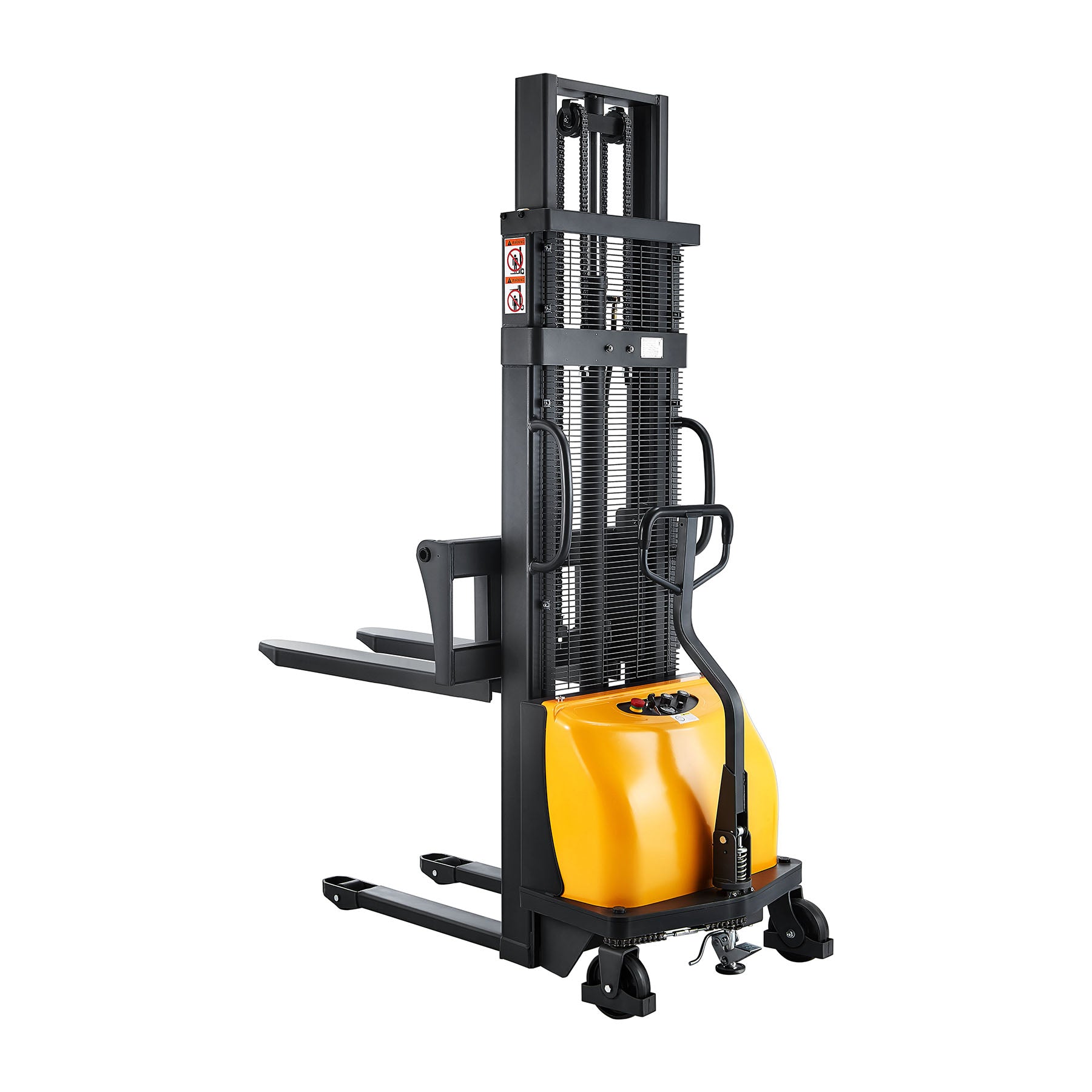

Semi-Electric Stacker 2200Lbs Cap. Fixed Legs. 118"Lifting

APOLLOLIFT SKU: A-3015
Semi-Electric Stacker  2200Lbs Cap. Fixed Legs. 118"Lifting
Semi-Electric Stacker  2200Lbs Cap. Fixed Legs. 118"Lifting
Semi-Electric Stacker  2200Lbs Cap. Fixed Legs. 118"Lifting

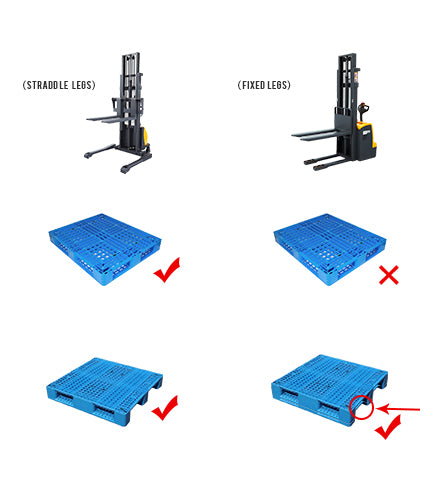

Wix CTD pallet.jpeg

Semi-Electric Stacker 2200Lbs Cap. Fixed Legs. 118"Lifting

APOLLOLIFT SKU: A-3015
Type
Regular price $3,390.00
/
Shipping calculated at checkout.
  • Excellent Quality
  • Professional after-sales service
  • Good packing
  • Secure payments
  • In stock
  • Inventory on the way

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

  • Special chain steering system.
  • Integrate panel design.
  • Foot pedal brake for safety and ramp usage.
  • Adjustable forks and fixed legs.

*SEMI-ELECTRIC STACKERS

MODEL NO. LOAD CAPACITY  LEGS TYPE BATTERY CAPACITY LIFTING HEIGHT HEIGHT        LOWERED  WT (LBS)  PRICE EACH
A-3013 2,200 lbs Fixed 12V/120AH 63'' 3.5'' 848 $3,080
A-3014 2,200 lbs Fixed 12V/120AH 98'' 3.5'' 902 $3,290
A-3015 2,200 lbs Fixed 12V/120AH 118'' 3.5'' 1045 $3,390
A-3006 2,200 lbs Straddle  12V/120AH 63'' 3.5'' 924 $3,250
A-3007 2,200 lbs Straddle  12V/120AH 98'' 3.5'' 1045 $3,550
A-3008 2,200 lbs Straddle  12V/120AH 118'' 3.5'' 1078 $3,770

 *REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) PRICE EACH 2 PCS Price
S-1004 lead-acid  12V/120AH 99 $580 $1,120

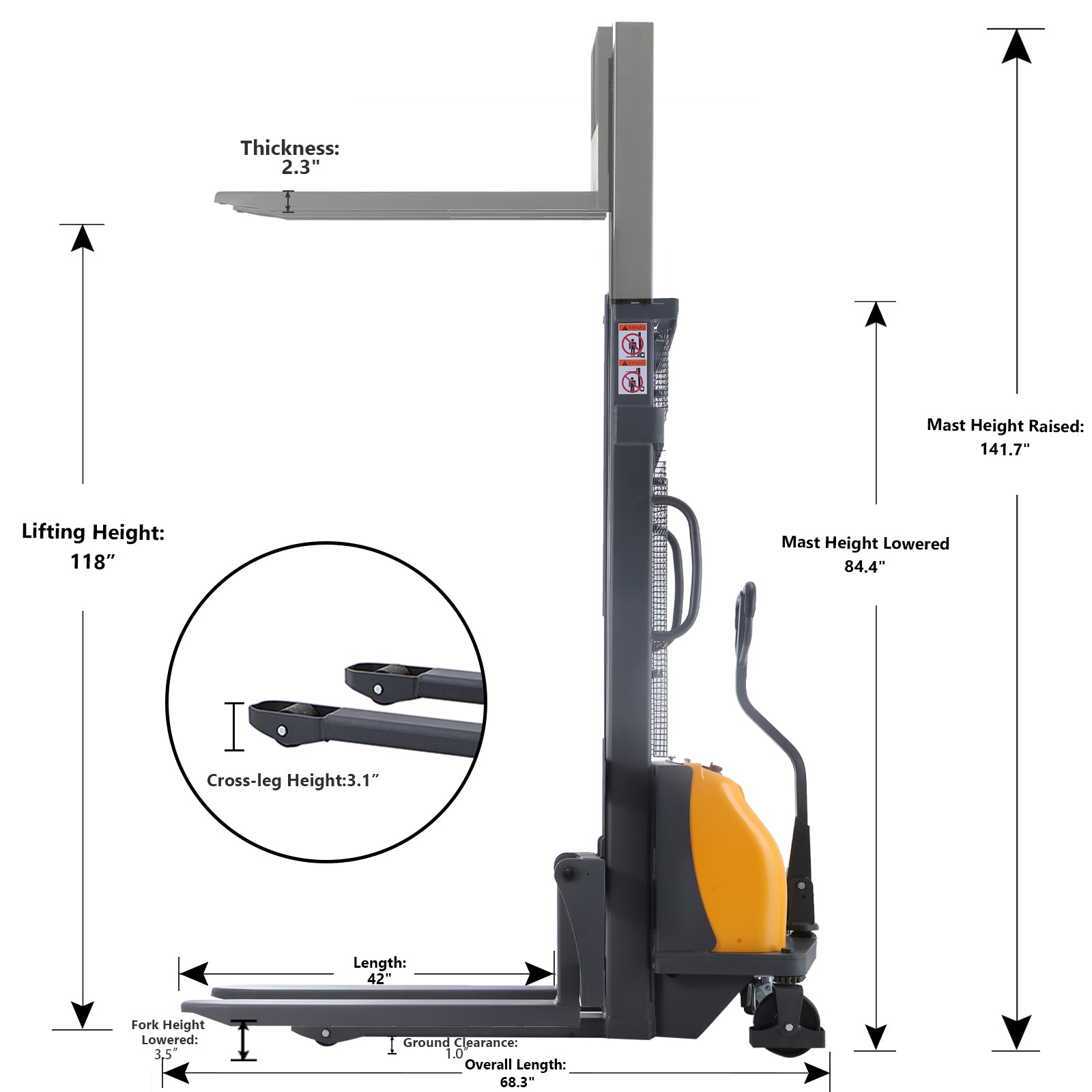

DIMENSIONS

  • Overall Length: 68.3"
  • Overall Width: 37.5"
  • Recommended Aisle Width: 89.2"
  • Turning Radius: 56.1"
  • Mast Height Lowered: 82.2"
  • Mast Height Raised: 140''
  • Load Center: 19.7"
  • Wheel Diameter:  7''/3.15''

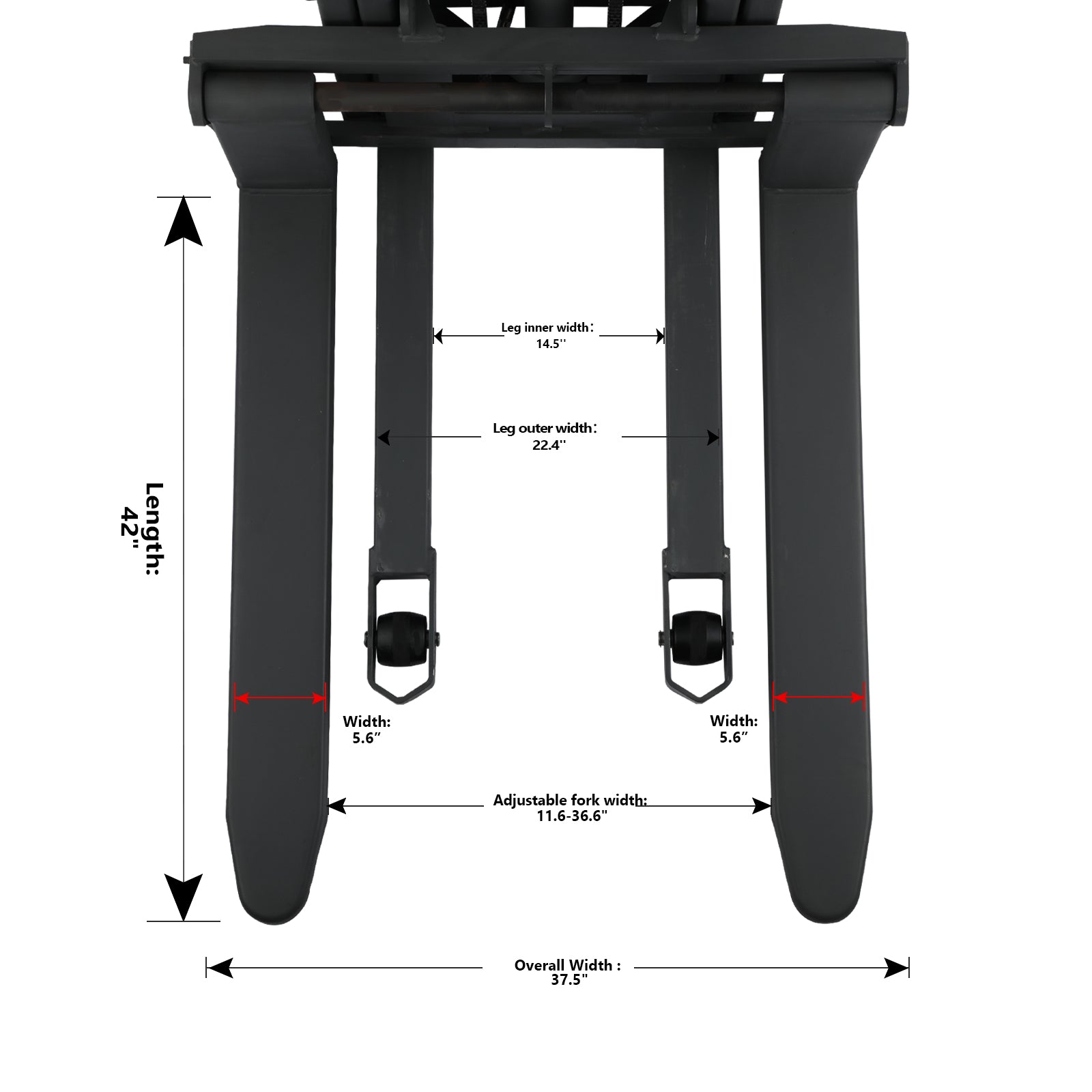

FORKS

  • Thickness: 2.3''
  • Width: 5.6''
  • Length: 42''
  • Adjustable fork width: 11.6-36.6''
  • Leg inner width: 14.5''
  • Leg outer width: 22.4''

SPEED

  • Lifting speed(laden/unladen): 2.7/3.9mph
  • Lowering speed(laden/unladen): 5.9/4.7mph

BDI

  • Multi-function battery display indicator.
  • Red: the battery is less than 20% and  need to be charged, the truck can walk only, not lift.
  • Yellow: the battery is around 50%.
  • Green: the battery is full.

 SPECIFICATIONS:

  • Not explosion proof.
  • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Temperature range of working environment below 50˚F~104˚F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even it's not in use.
  • Time to fully charge battery: 8 - 10 hrs.

Click Here :A-3015  Detail Page
Click Here :Assemble the welded fork.

1 YEAR

Parts covered.

Excludes: Wheels, axles & bushings

1 YEAR PLUS:

Contact Apollolift for assistance locating repair facilities.

Customer responsible for all charges.



RETURN POLICY
