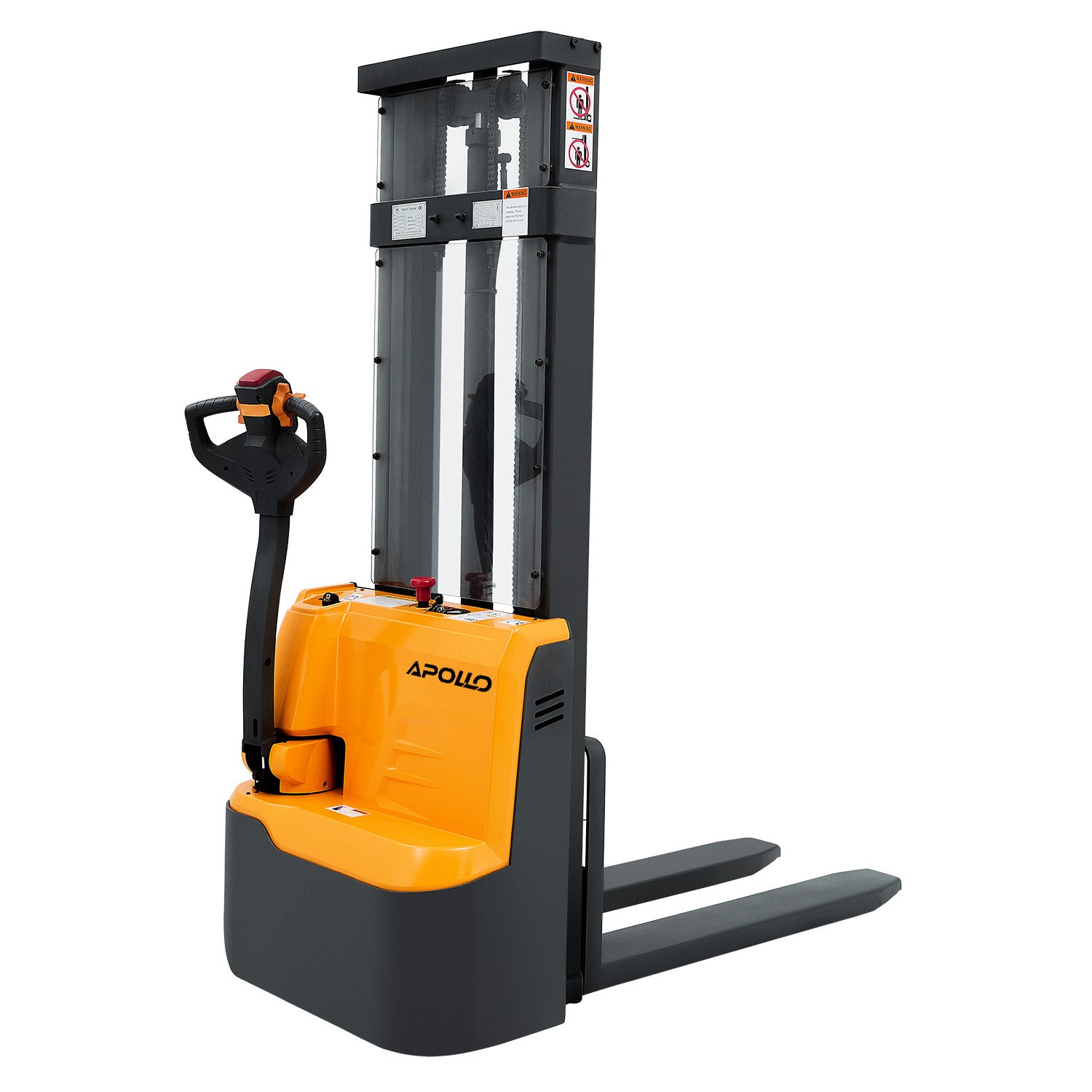

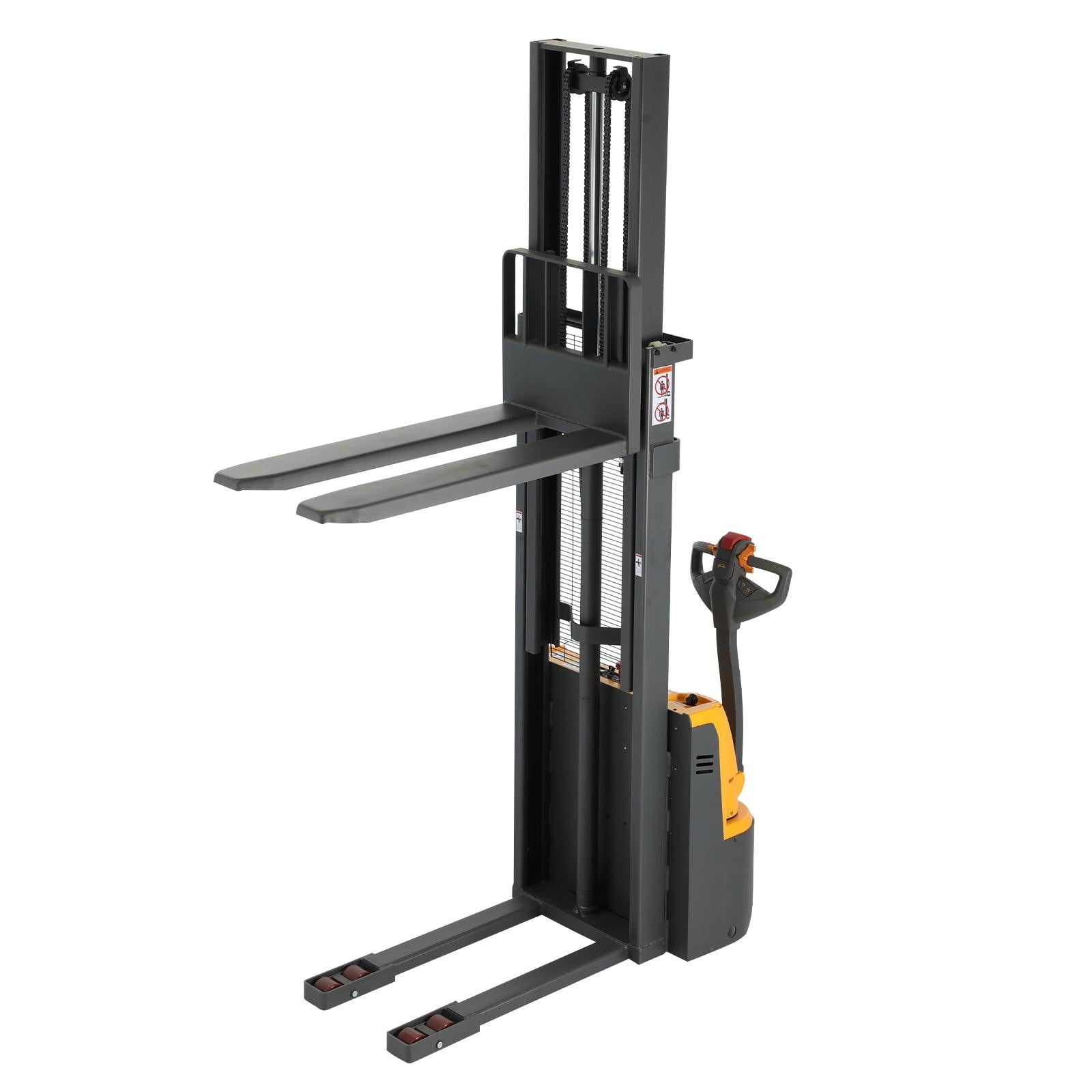

Fully Powered Electric Stacker 2200lbs Cap. Fixed Legs. 118" Lifting
APOLLOLIFT
SKU: A-3025
THE BEST CHOICE FOR NARROW SITE
- 650-watt drive motor, 2,200-watt lift motor.
- Curtis (US Brand) Controller.
- Fixed forks suits for EU type pallet.
- Both sides of button for lifting and lowering operation.
- Red dot and IF design award winner
*FULLY POWERED STACKER
| MODEL NO. | LOAD CAPACITY | BATTERY CAPACITY | LIFTING HEIGHT | HEIGHT LOWERED | WHEEL DIAMETER | WT (LBS) | PRICE EACH |
| A-3024 | 2,200 lbs | 24V/105AH | 98'' | 3.5'' | 7.7" | 1,400 | $4,890 |
| A-3025 | 2,200 lbs | 24V/105AH | 118'' | 3.5'' | 7.7" | 1,474 | $4,992 |
| A-3026 | 2,640 lbs | 24V/105AH | 98'' | 3.5'' | 7.7" | 1,470 | $5,220 |
| A-3027 | 2,640 lbs | 24V/105AH | 118'' | 3.5'' | 7.7" | 1,540 | $5,370 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
*REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | DIMENSIONS | PRICE EACH | 2 PCS PRICE |
| S-1005 | Gel Battery | 24V/105AH | 115 | 10.2x6.6x8.5" | $600 | $1,150 |

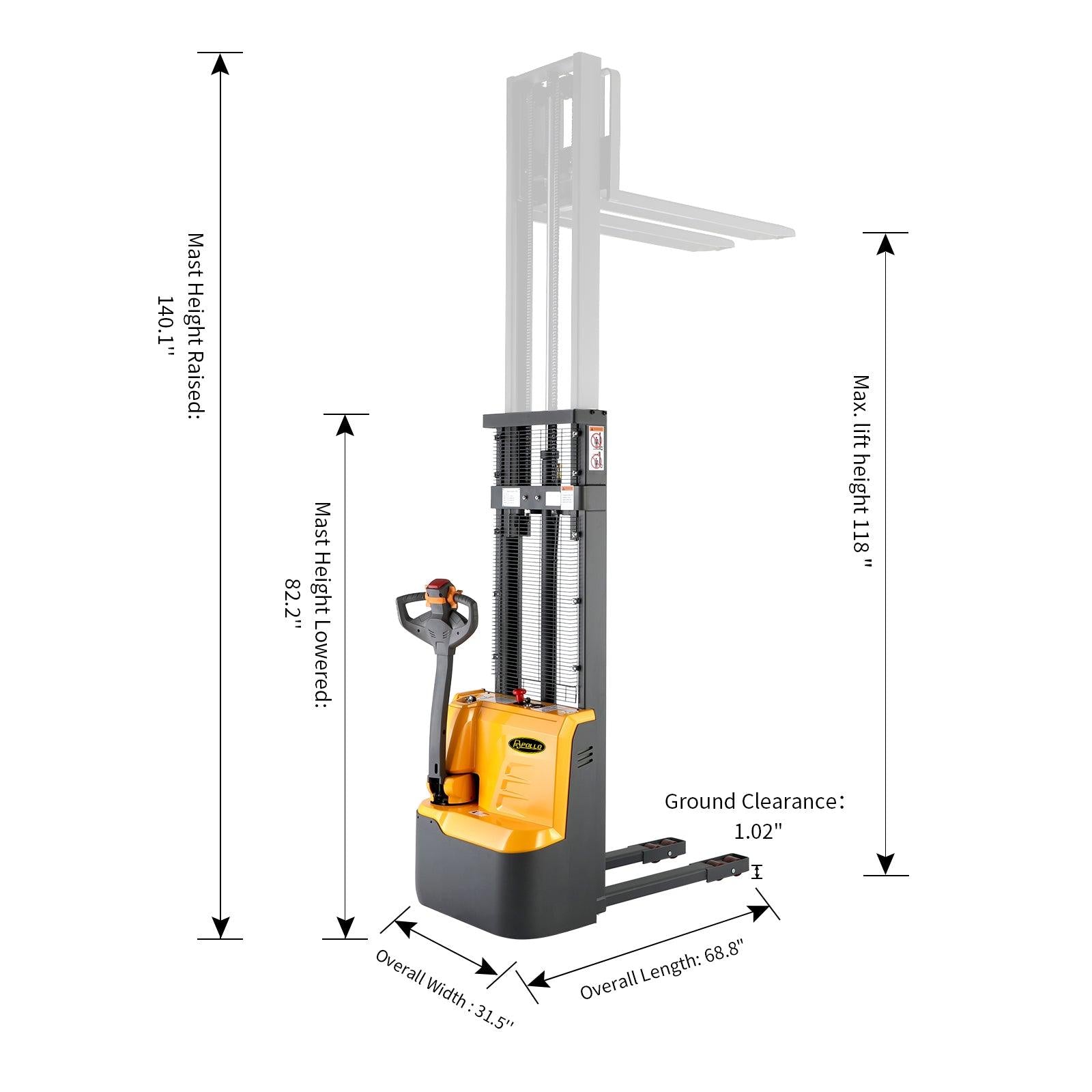

DIMENSIONS:
- Overall Length：68.8"
- Overall Width: 31.5''
- Recommended Aisle Width：87.3"
- Turning Radius: 53.7"
- Mast Height Lowered:82.2''
- Mast Height Raised: 140.1''
- Load Center: 23.6"

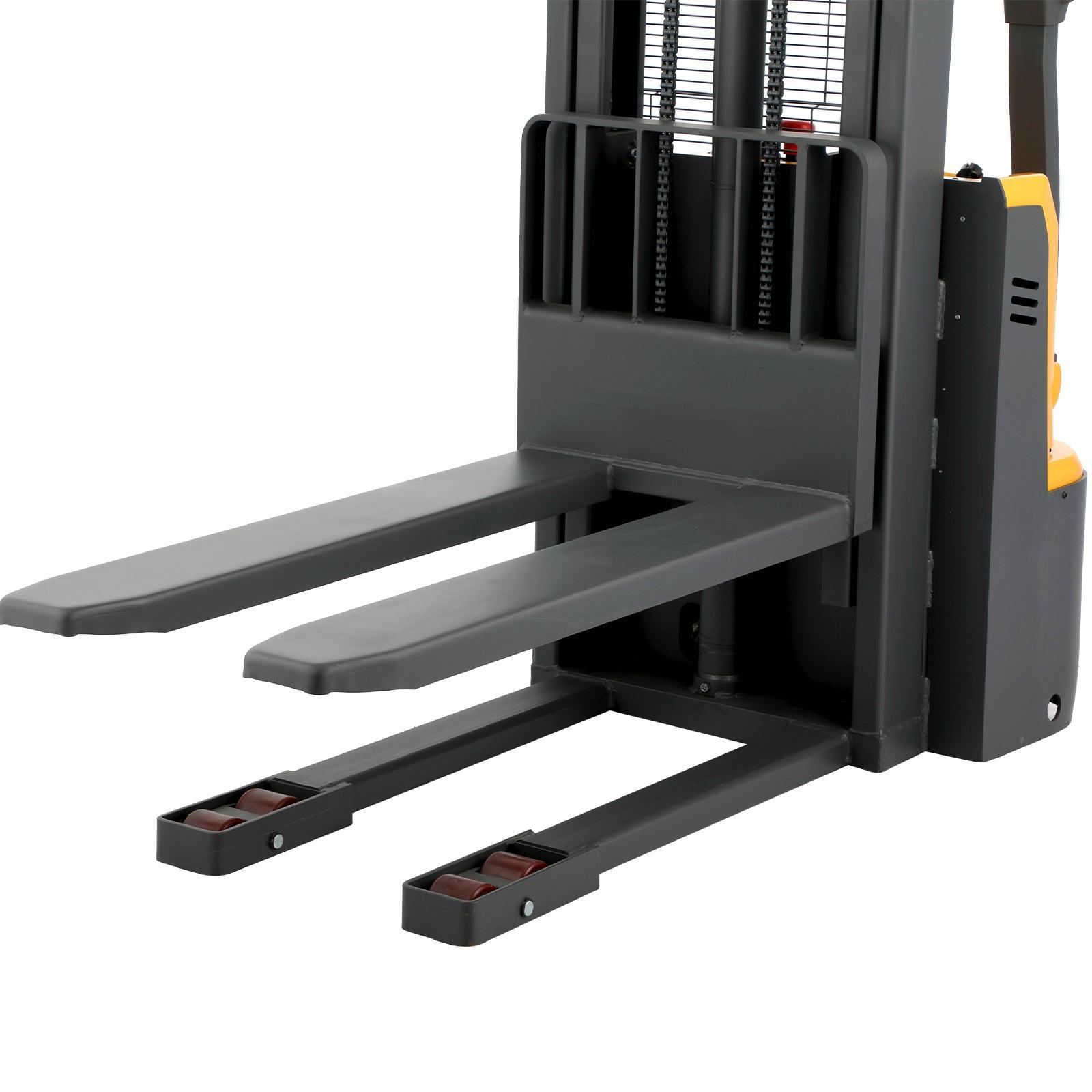

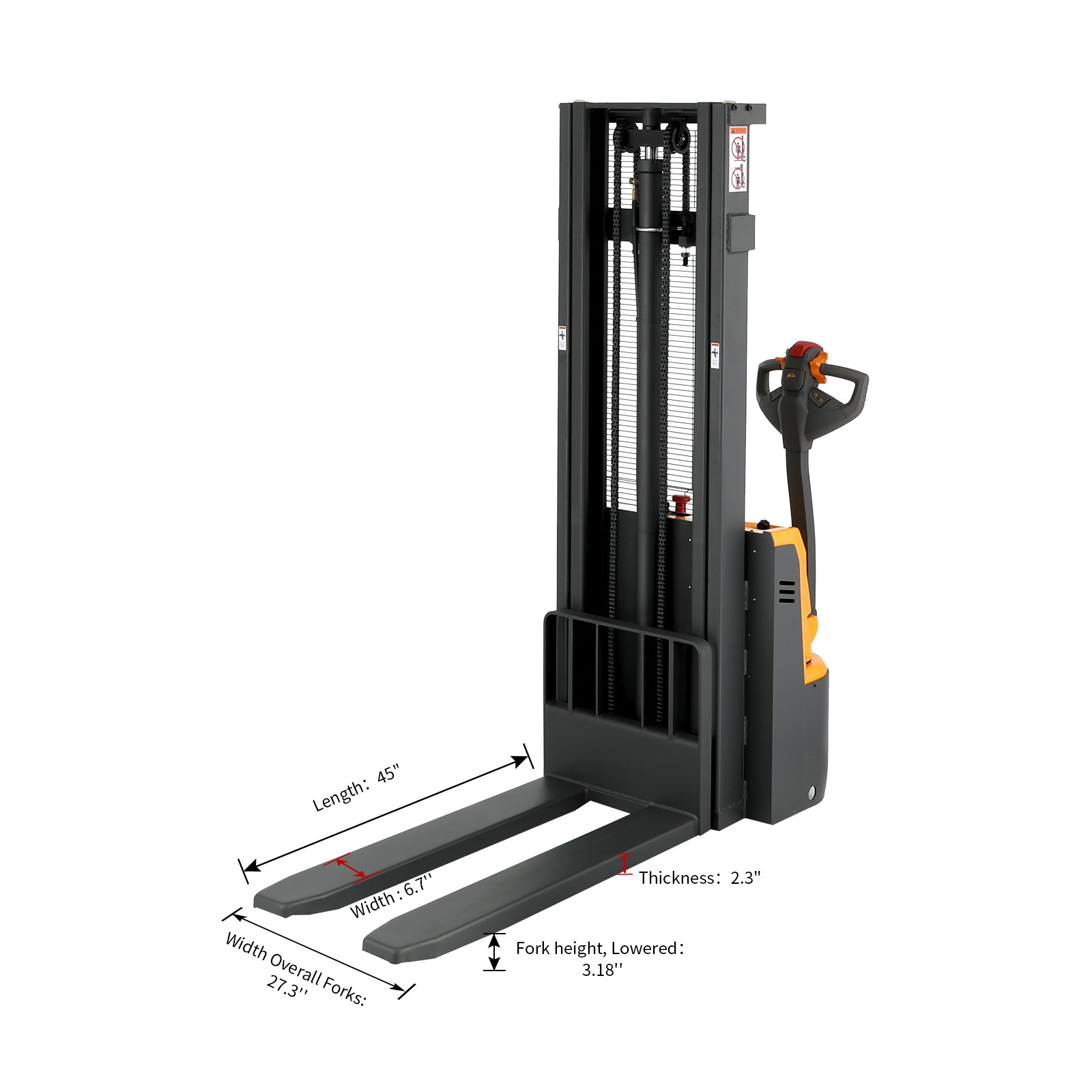

FORKS:
- Fork height, Lowered: 3.5''
- Thickness: 2.3''
- Width: 6.7''
- Length: 45''
FEATURES:

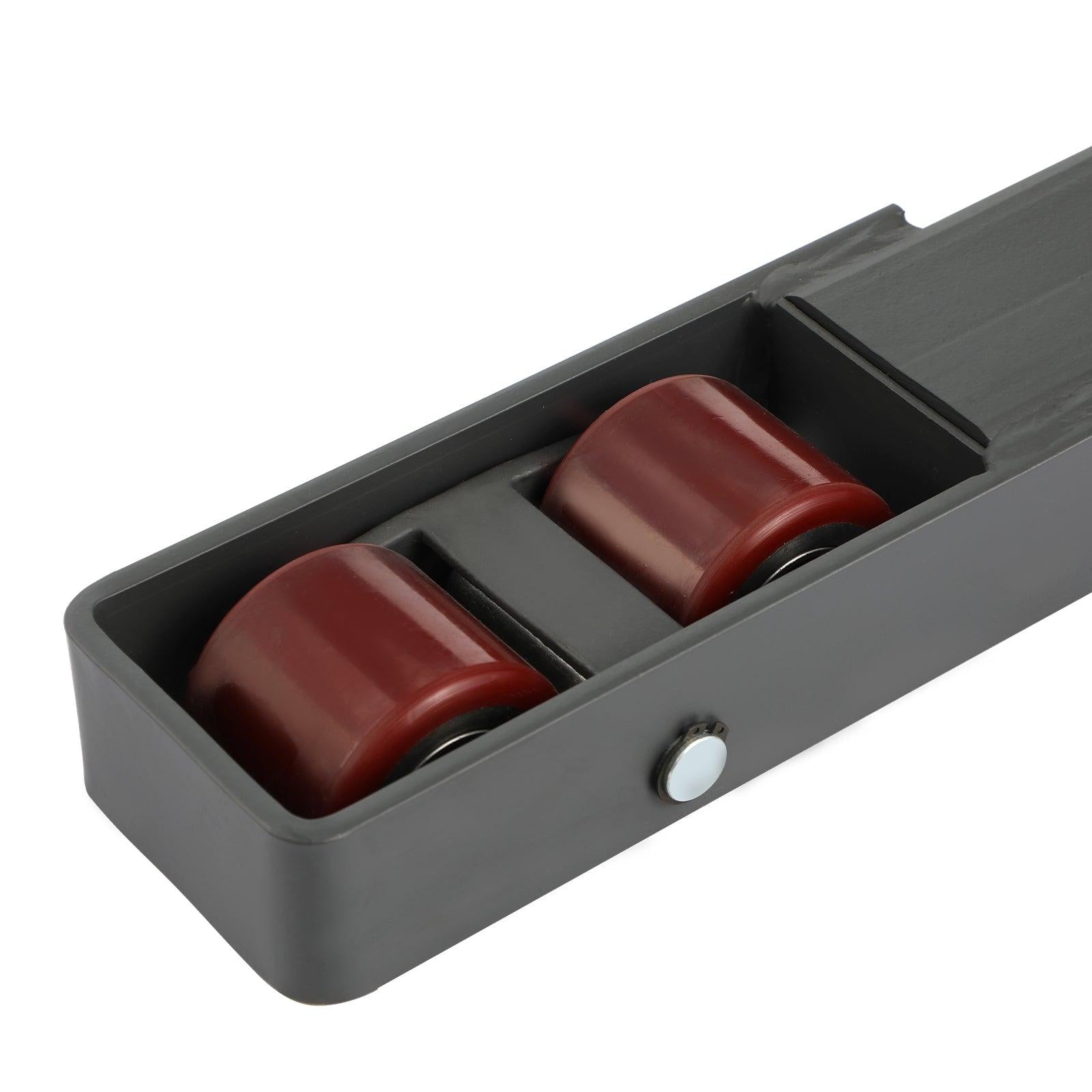

- Smooth rolling polyurethane wheels.180° steering arc.
- 110V Built-in Charger.
- 6 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.
SPEED:
- Travel speed(laden/unladen) : 2.8/3.1mph
- Lifting speed(laden/unladen) : 4.3/5.5inch/s
- Lowering speed(laden/unladen) : 4.7/3.9inch/s
SPECIFICATIONS:
- Not explosion proof.
- This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Temperature range of working environment below 50˚F~104˚F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
Click Here :A-3025 Detail Page
Click Here :Assemble the welded fork.
1 YEAR
Parts covered.
Excludes: Wheels, axles & bushings
1 YEAR PLUS:
Contact Apollolift for assistance locating repair facilities.
Customer responsible for all charges.
