3 Wheels Lithium-ion Battery Forklift with Heating Film 4400lbs Cap. 220" Lifting A-4003
Regular price
$0.00
Sale price
$0.00
Regular price
Product description
Lithium-ion Battery Forklift
Dual 4,500 Watt driving motor,10,000 Watt lifting motor
CURTIS driving and lifting controllers
Easy to operate and maneuver
Ideal for a wide range of applications
Full- AC system provides smooth operations and high performacne
Enhanced operator comfort and productivity
SKU NO. | LOAD CAPACITY | HEIGHT LOWERED | BATTERY TYPE | BATTERY CAPACITY | TIRES TYPE | WT(LBS) |
A-4003 | 4,400 lbs | 220'' | Lithium-ion | 48V/450Ah | Solid | 8,492 lbs |
CAPACITY SHEET
Lifting height | Actal capacity |
below 118'' | 4,400 lbs |
118''-137'' | 3,740 lbs |
137''-157'' | 3,300 lbs |
157''-177'' | 2,750 lbs |
177''-196'' | 2,640 lbs |
196''-220'' | 1,650 lbs |
DIMENSIONS
- Overall Length: 122"
- Overall width: 44.5''
- Recommended Aisle Width: 130"
- Turning Radius : 65"
- Load center : 19.7"
MAST
- Mast Height Lowered: 97''
- Max.Lifting height: 220''
- Mast Height Raised: 262''
- Free Lifting height: 56''
- Mast Tilt Angle(forward/backward): 3° /6 °
FORKS
- Thickness: 1.6"
- Width: 4.7"
- Length: 42"
SIDESHIFTER
- Left and right reach distance: 4''
SPEED
- Travel Speed(laden/unladen): 8/8 mile/h
- Lifting Speed(laden/unladen): 9.8/16.5 inch/s
- Lowering Speed(laden/unladen):< 23.6 inch/s

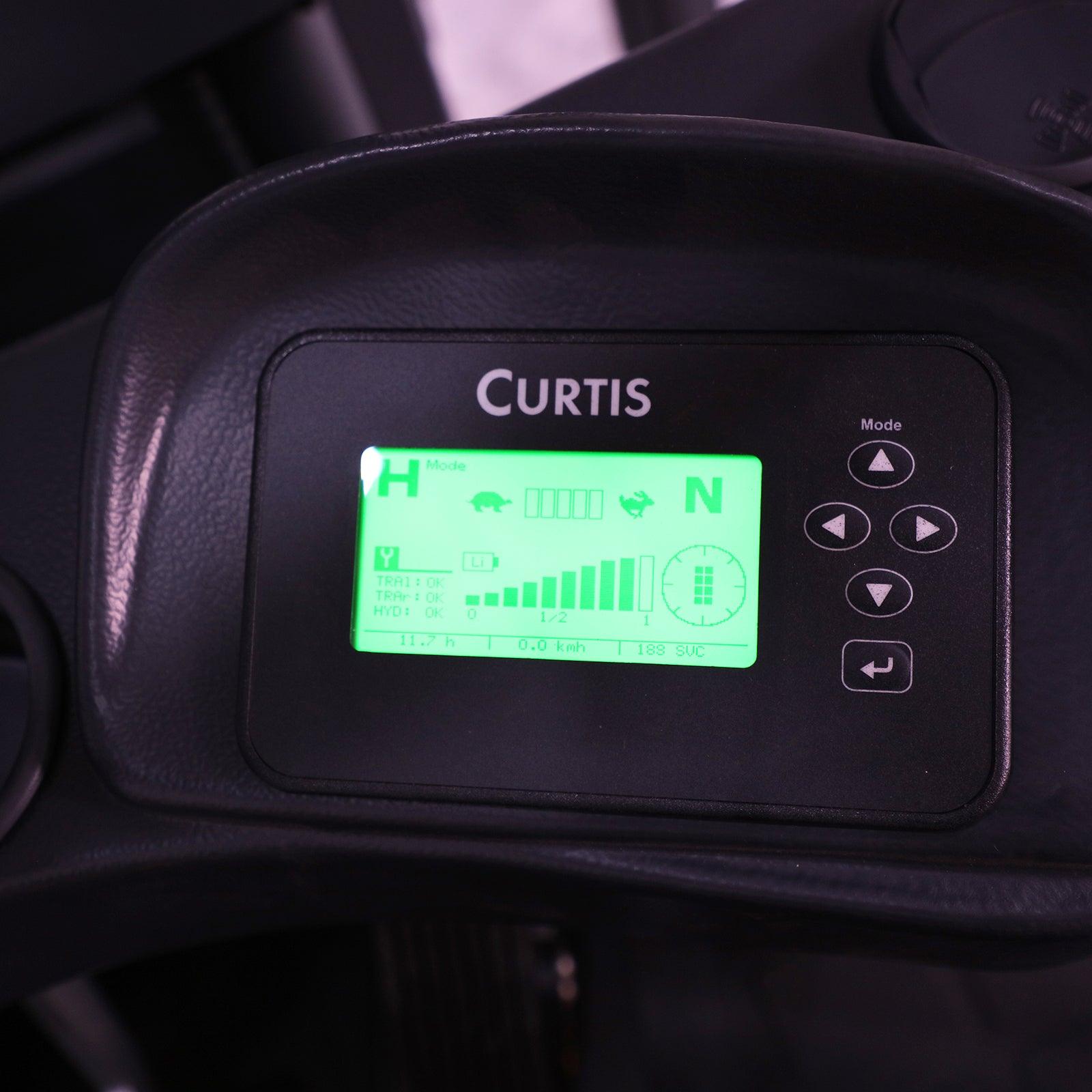

MULTI-FUNCTION DISPLAY
Speed Mode
- H: High speed
- S: Standard speed
- E: Economic speed
Driving Direction
- N: Neutral status
- ↑: Forward
- ↓: Backward
BDI
- 1: Full battery
- 1/2: Half battery
- 0: Empty battery
- Working hour display
- Current speed display
FAULTY CODE(if have problem, it will show the faulty code to help to find the cause quickly)
CHARGING
- 6-8 hours service per charge with big power lithium battery capacity 48V/450AH.
- Only 3 hours charging time.
- Charger plugs into 3-phase industrial 220V power outlets.
- Charge the truck once a month even it's not in use.
FEATURES
- Gradeability(laden/unladen): 15%/20%
- Comfortable seat with safety belt and handrail.
- Excellent operator visibility.
- Small turning radius makes for better loading, unloading and stacking in the confined warehouses.
SPECIFICTIONS
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Temperature range of working environment below 50˚F˜104˚F
