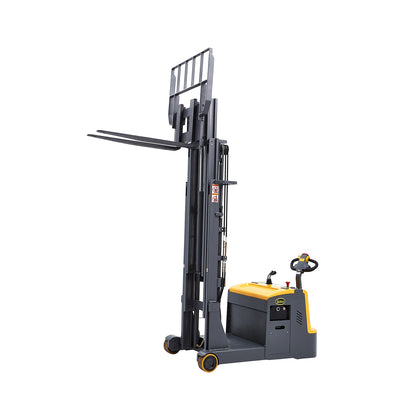

HEAVY DUTY COUNTERBALANCED STACKER
- 1,200-watt drive motor, 4,500-watt lift motor.
- Forks are adjustable to fit most pallets.
- Curtis (US Brand) Controller.
- Famous German brand handle tiller.
- Multi-function display shows the working hours, battery status and low-voltage protection.
*COUNTERBALACED ELECTRIC STACKERS
MODEL NO. | DESCRIPTION | LOAD CAPACITY | HEIGHT LOWERED | HEIGHT RAISED | WHEEL DIAMETER | WT (LBS) | PRICE |
A-3031 | Light duty stacker | 1,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 1,920 | $7,447 |
A-3032 | Heavy duty stacker | 3,300 lbs | 1.38'' | 177'' | 9.8''/7.9'' | 4,580 | $15,397 |
A-3040 | Medium duty stacker | 2,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 2,601.45 | $8,447 |
A-3043 | Medium duty stacker | 2,200 lbs | 1.38'' | 98'' | 7.7''/5.9'' | $8,14700 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
*CAPACITY SHEET
LIFTING HEIGHT | ACTAL CAPACITY |
below 118'' | 3,300 lbs |
118''-137'' | 2,640 lbs |
137''-157'' | 2,310 lbs |
157''-177'' | 1,980 lbs |
DIMENSIONS
- Overall Length: 104.3"
- Overall width: 39''
- Recommended Aisle Width: 120.9"
- Turning Radius : 61.8"
- Load center : 19.7"
MAST
- Mast Height Lowered: 82.1''
- Max.Lifting height: 177''
- Mast Height Raised :216.5''
- Free Lifting height: 59''
FORKS
- Thickness: 1.3"
- Width: 3.9"
- Length: 42"
- Adjustable Forks: 8.7-26.7"
- Forks Tilt Angle(forward/backward): 3° / 6 °
SPEED
- Travel Speed (laden/unladen): 3.6 /3.7 mile/h
- Lifting Speed (laden/unladen): 0 - 4.7 / 0 - 6.3 inch/s
- Lowering Speed (laden/unladen): 0 - 17.7 inch/s
FEATURES
- Gradeability(laden/unladen): 6%/10%
- 8 hours service per charge with big power lead-acid battery capacity 24V/280AH
- 8 hours charging time
- Long handle structure makes it steering light and flexible
- Vertical driving wheel, driving efficiency, easy installation& maintenance
- AC frequency conversion traction motor, compact structure, good performance
- With emergency stop switch and electricity lock button for safety
- Tilting system forks easy for loading and stacking
SPECIFICATIONS
- Not explosion proof.
- This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
Click Here :A-3032 Detail Page
Click Here :Assemble the forged fork of stackers.
Apollo Forklift provides 1 Year limited warranty upon the date of product’s receipt, easy-wearing parts and human damages are not covered by warranty. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty.
1- Within 30 days of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided. In case our after-sale department determines the product needs to return for repair, all round-trip shipping costs will be borne by us."
2- Within 30 days-1 year of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided, if the product needs to return for repair as necessary, the customer needs to bear half of the shipping costs.
3- After 1 year of the receipt, if the product exists any quality problem, free technical guidance will be provided, however the customer needs to pay for the replacement parts, and if needs to return for repair, related maintenance costs as well as all round-trip shipping costs will be charged, which will be quoted in depends
Please note for spare parts orders, the warranty period is 3months, battery is 6months.
- We deliver the goods from multiple warehouses and using different freight carriers depending on customer’s location.
- The standard shipping cost is based on delivery to a freight terminal or to a commercial business address with self-unload type.
- The standard shipping cost is excluded the additional services, such as Lift Gate Service, Residential Delivery Service, or Phone Call Service, please specify at the time of ordering.
- For remote or difficult to reach addresses it is possible that additional shipping charges can apply. Including but not limited to Alaska Hawaii, Puerto Rico.
- For delivery to Canada and Mexico country, involving with customs clearance policies and procedures, pls contact with our sales before purchase.
