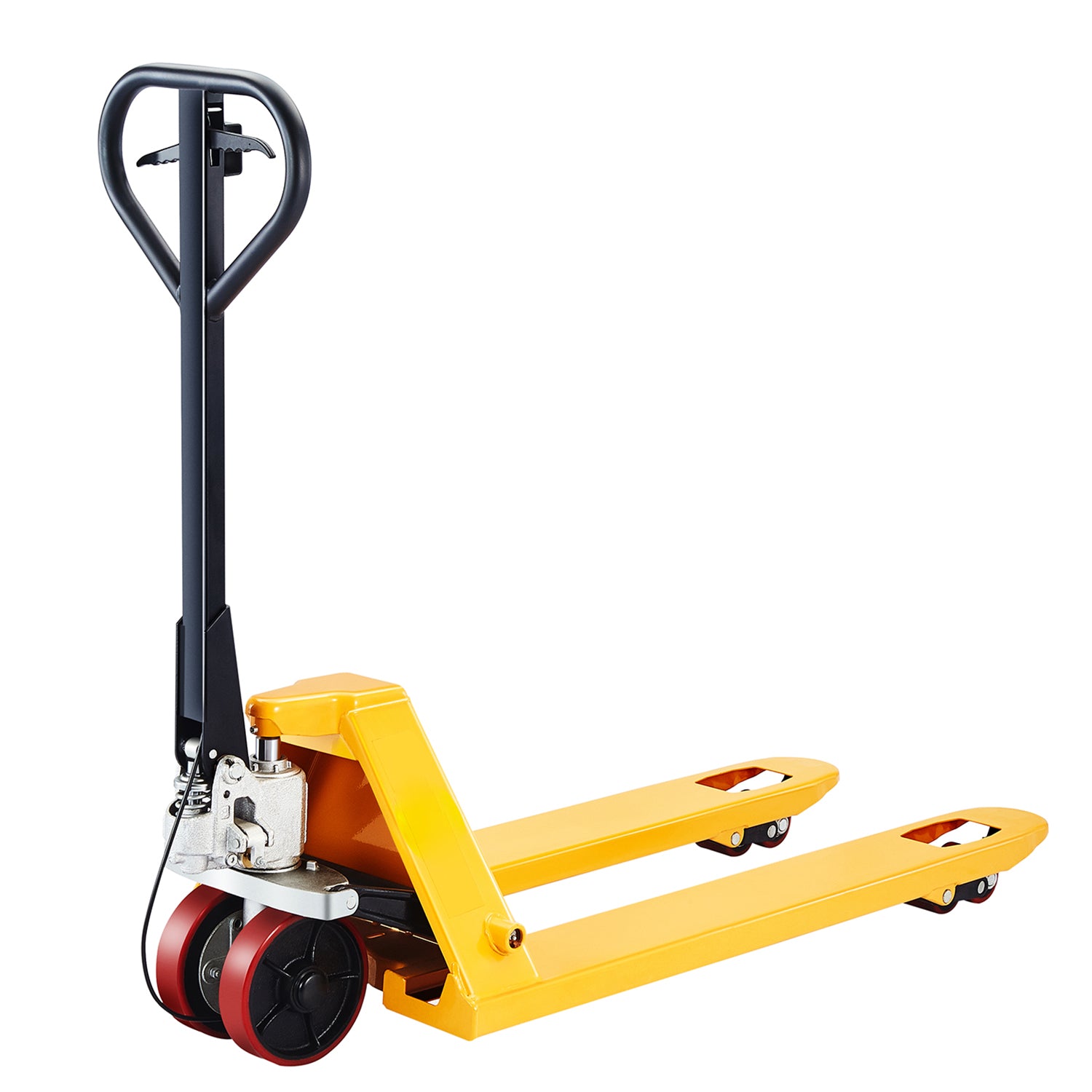

Pallet Jack Brake System - 5500lbs. 48"Lx27"W Fork
SKU: A-1011

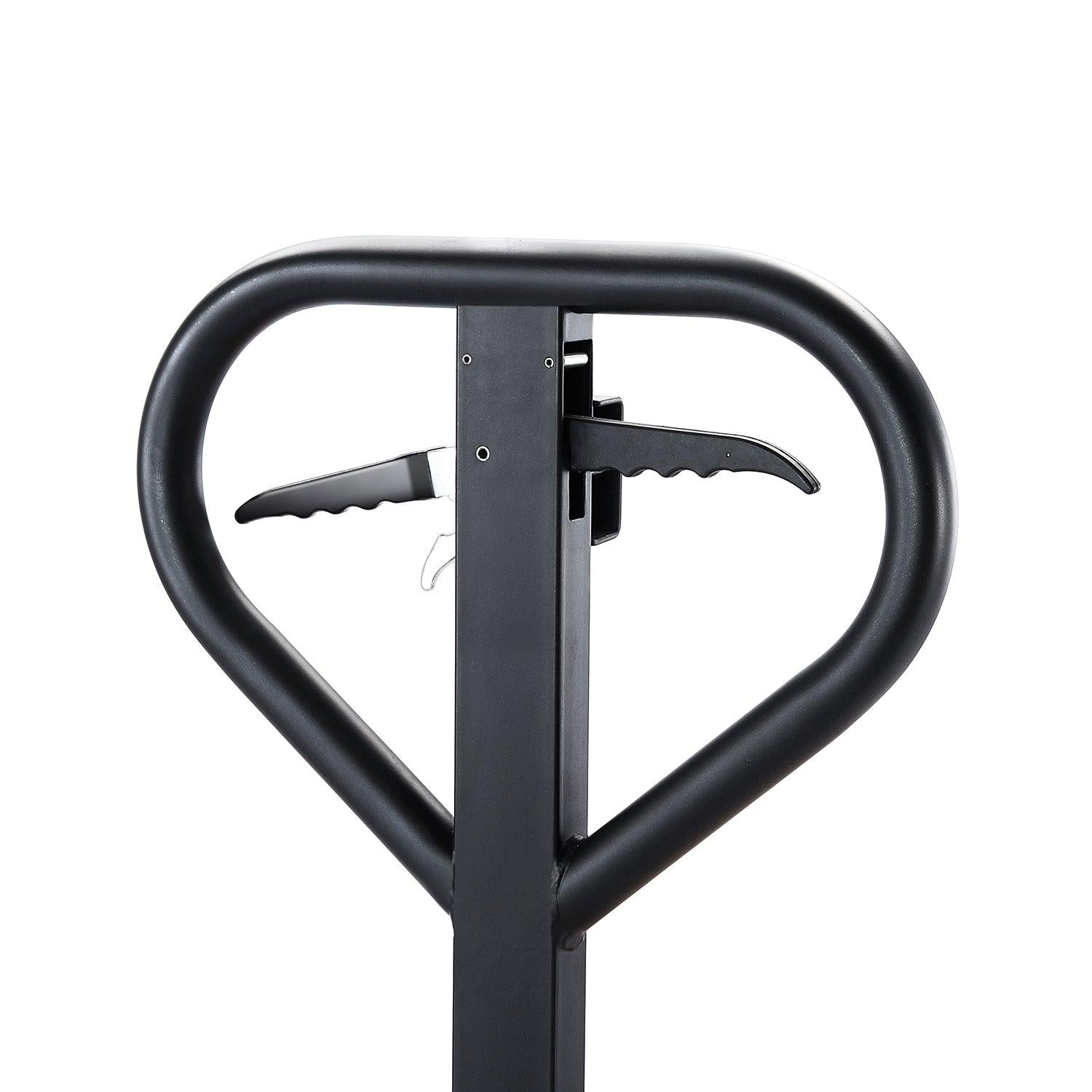

- 3 position hand control-Raise,Lower,Neutral.

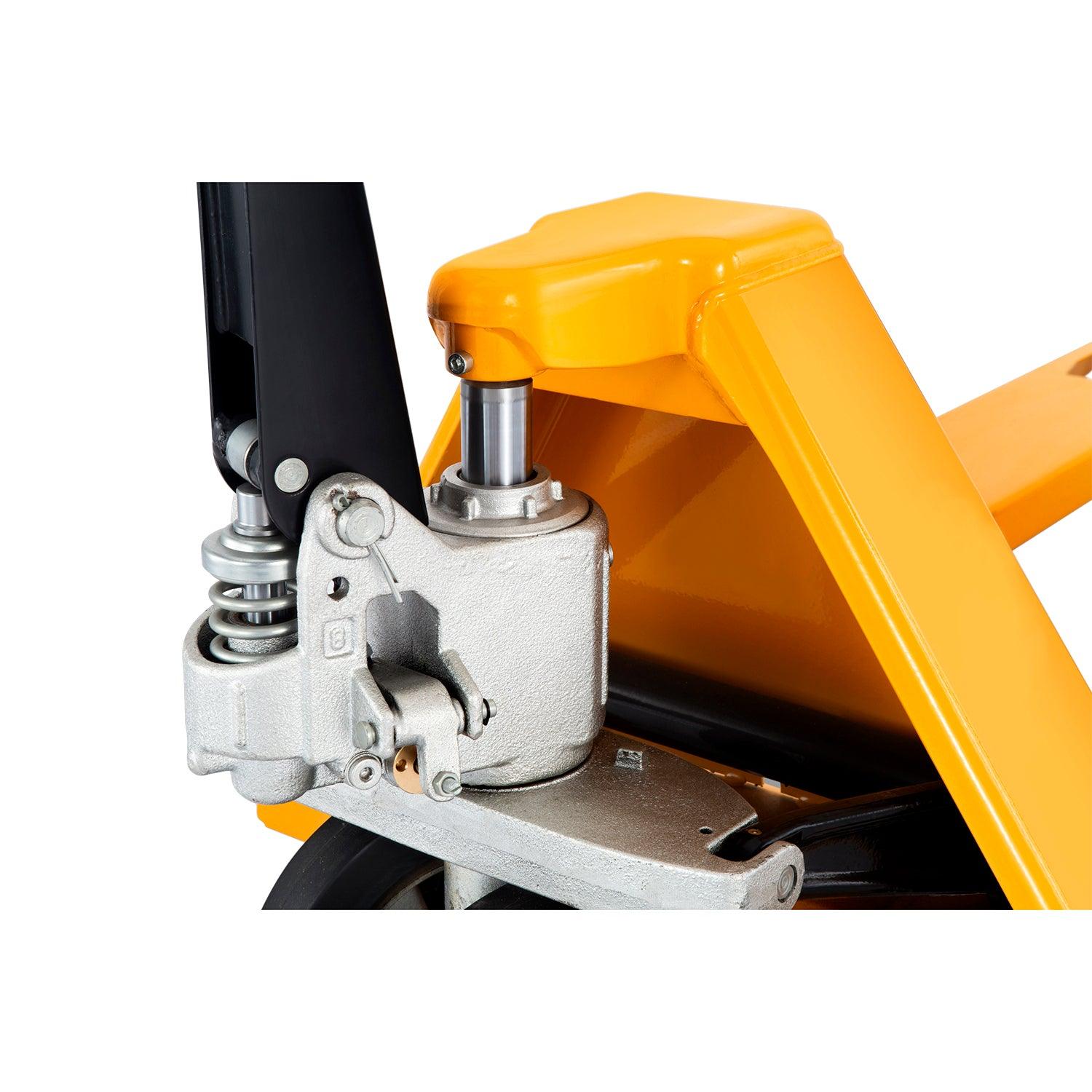

- Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
- Forks lowering speed is controllable, with overload valve to avoid overloading.
- PU wheels. Non-marking, low noise wheels.
- Excellent turning angle of 190 degrees facilities.
*PALLET TRUCKS
| SKU | DESCRIPTION | FORK SIZE | CAPACITY | WT(lbs) | PRICE |
| A-1001 | Standard | 48*21'' | 4,400 lbs | 117 | $290 |
| A-1002 | 48*27'' | 123 | $300 | ||
| A-1003 | 48*21'' | 5,500 lbs | 121 | $315 | |
| A-1004 | 48*27'' | 127 | $345 | ||
| A-1006 | Deluxe | 48*21'' | 5,500 lbs | 127 | $300 |
| A-1007 | 48*27'' | 134 | $350 | ||
| A-1011 | Hand Brake | 48*27'' | 175 | $450 | |
| A-1014 | Scissor Lift | 45*21'' | 2,200 lbs | 229 | $750 |
| A-1015 | 45*27'' | 240 | $800 | ||
| A-1032 | Scale Truck | 45*27'' | 4,400 lbs | 308 | $1250 |
| A-1031 | Deluxe | 48*27'' | 6,600 lbs | 134 | $380 |
*HEAVY DUTY PALLET TRUCKS
| SKU | DESCRIPTION | FORK SIZE | CAPACITY | WT(lbs) | PRICE |
| A-1005 | Heavy Duty | 48*27'' | 6,600 lbs | 127 | $330 |
| A-1008 | Premium | 7,700 lbs | 220 | $565 | |
| A-1013 | Super Heavy Duty | 11,000 lbs | 242 | $805 |
*LOW PROFILE PALLET TRUCKS
| SKU | DESCRIPTION | FORK SIZE | CAPACITY | WT(lbs) | PRICE |
| A-1009 | Low Profile | 48*27'' | 3,300 lbs | 160 | $490 |
| A-1010 | Super Low Profile | 2,200 lbs | 143 | $590 |
DIMENSIONS
- 3" lowered and 6.5" raised height.
- 6" polyurethane steering wheels.
- 2.8" polyurethane fork wheels.

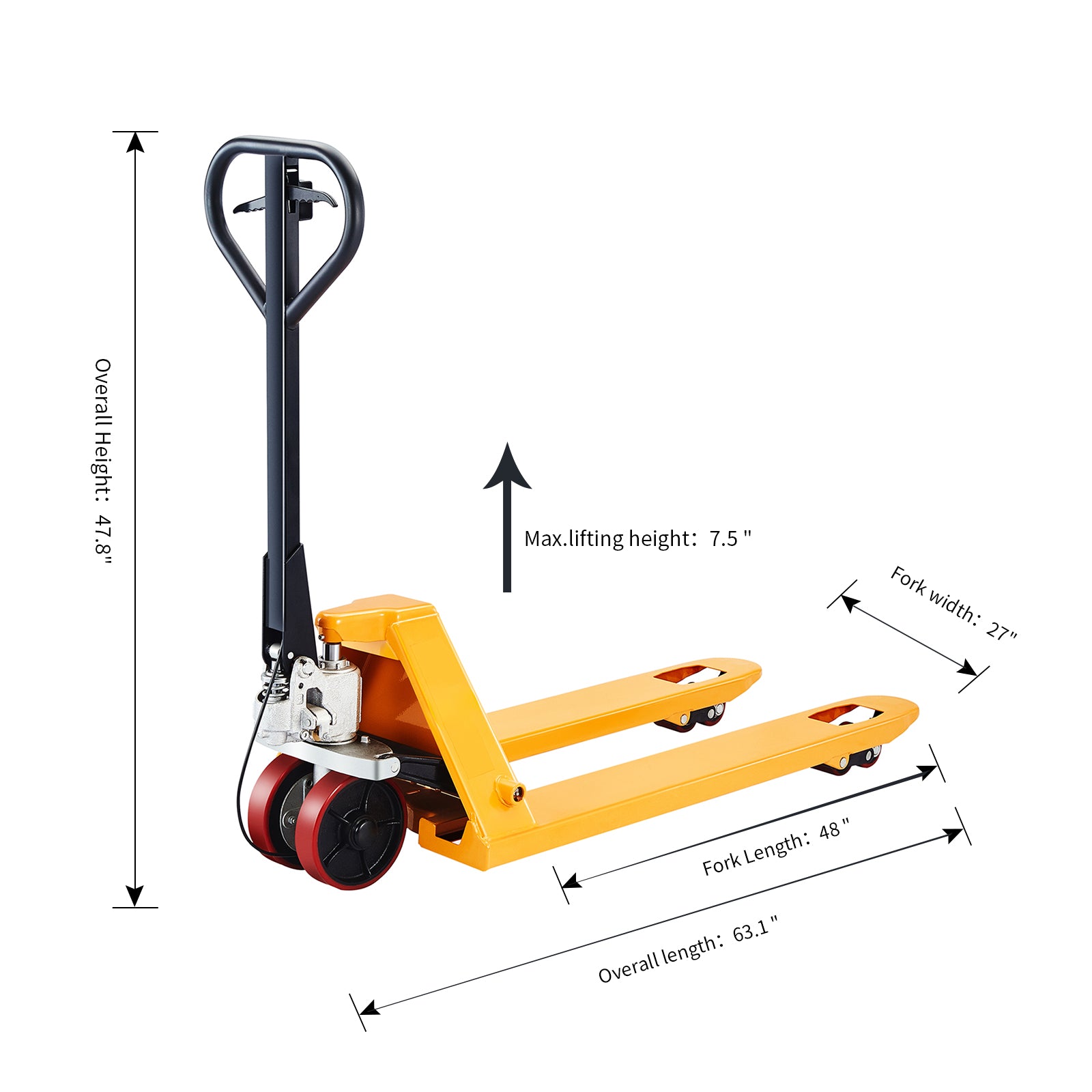

- Overall length：63.1''

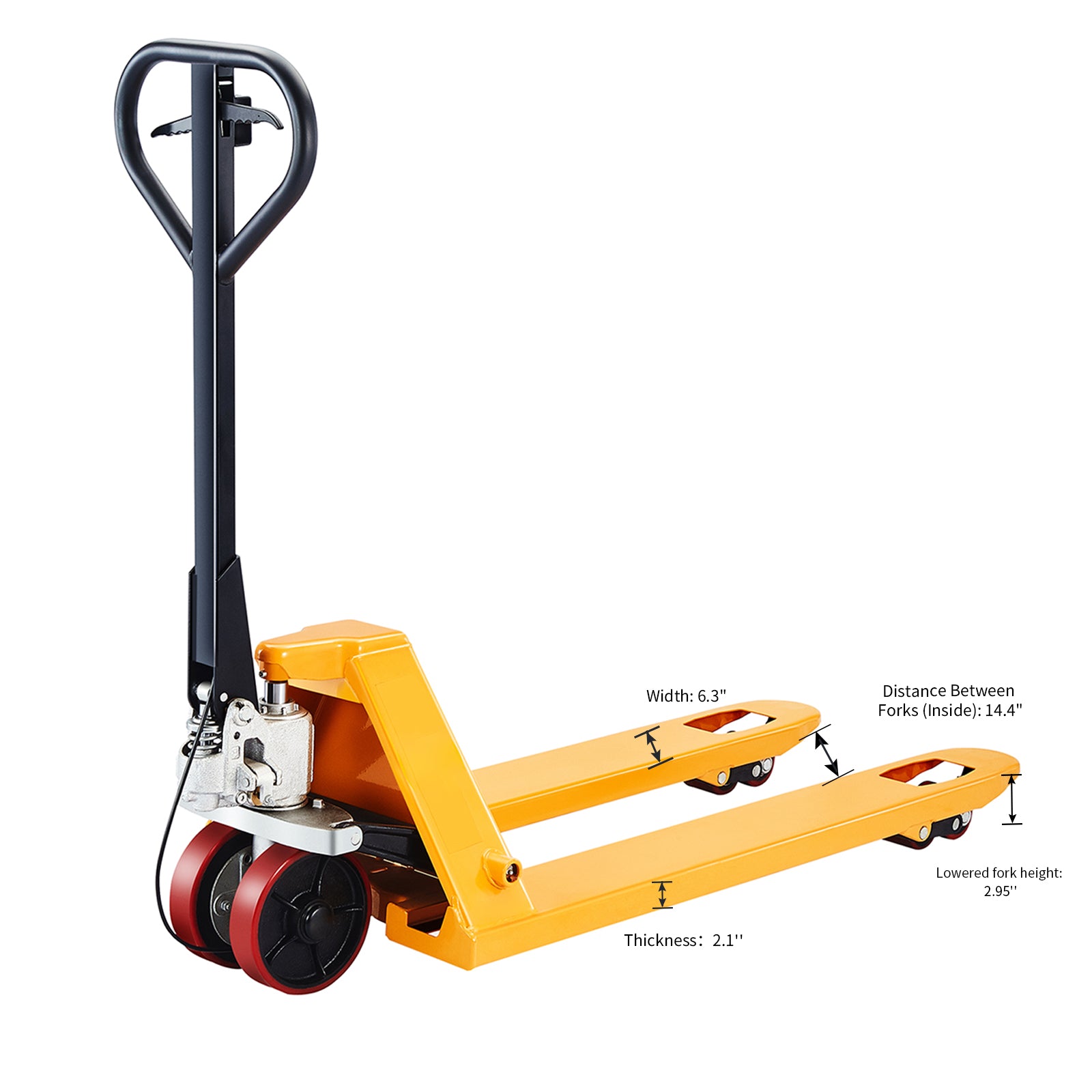

- Single fork width：6.3''
- Fork thickness：2.1''
- Distance Between Forks (Inside)：14.4''
TEMPERATURE
Hydraulic fluid may not function properly below minus 13° F.
Click Here :Assemble the handle of A-1011 trucks.
Apollo Forklift provides 1 Year limited warranty upon the date of product’s receipt, easy-wearing parts and human damages are not covered by warranty. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty.
1- Within 30 days of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided. In case our after-sale department determines the product needs to return for repair, all round-trip shipping costs will be borne by us."
2- Within 30 days-1 year of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided, if the product needs to return for repair as necessary, the customer needs to bear half of the shipping costs.
3- After 1 year of the receipt, if the product exists any quality problem, free technical guidance will be provided, however the customer needs to pay for the replacement parts, and if needs to return for repair, related maintenance costs as well as all round-trip shipping costs will be charged, which will be quoted in depends
Please note for spare parts orders, the warranty period is 3months, battery is 6months.
- We deliver the goods from multiple warehouses and using different freight carriers depending on customer’s location.
- The standard shipping cost is based on delivery to a freight terminal or to a commercial business address with self-unload type.
- The standard shipping cost is excluded the additional services, such as Lift Gate Service, Residential Delivery Service, or Phone Call Service, please specify at the time of ordering.
- For remote or difficult to reach addresses it is possible that additional shipping charges can apply. Including but not limited to Alaska Hawaii, Puerto Rico.
- For delivery to Canada and Mexico country, involving with customs clearance policies and procedures, pls contact with our sales before purchase.
