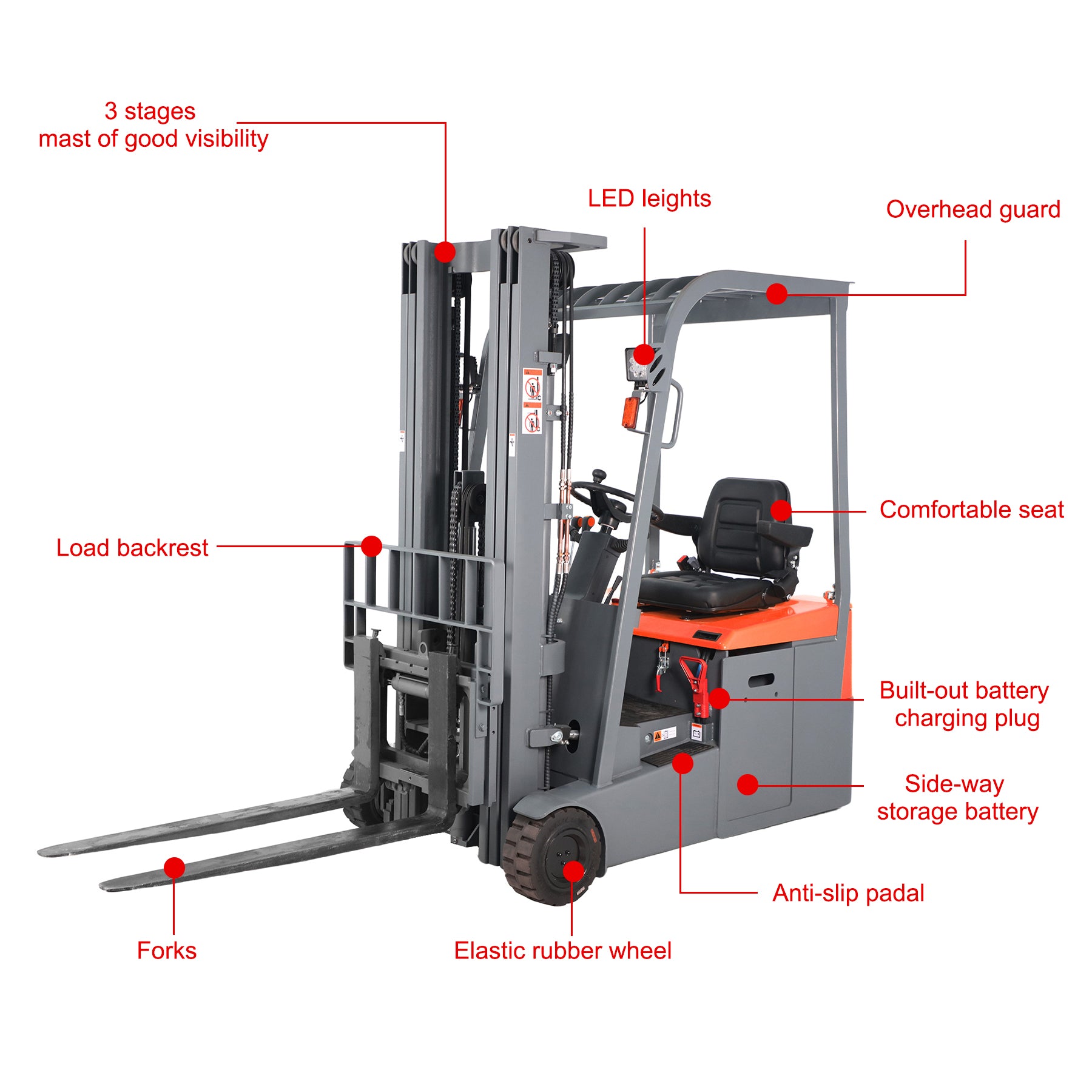

- Standard Capacity 3300lbs with fork lift height 197”
- AC motor, without brush, free of maintenance
- Reliable Sweden Inmotion controller
- Three-stages mast with free lift and sider shift
- Rear wheel driven design, with stable quality and small turning radius
- Side-way moving lead acid battery 24V/320Ah
- Charger 24V/40A, plugs into single-phase 110V power outlets
- LED working lights
- Comfortable seat with safety belt and handrail
- Multi-Function display with using, battery status, fault code, and forklift running information
- Elastic rubber wheels with good shock proof and low noise
- 3-way hydraulic control valve
- High gradeability up to 10% with full laden
- Ideal design for operate in the warehouse with narrow aisle.
Model NO: | A-3041 |
Operator Type: | Seated |
Load Capacity | 3,300 lbs |
Max. Lifting Height (Fork) | 197" |
Load center | 19.7" |
Cabin Height | 78'' |
Battery Type | Lead acid |
Battery Capacity | 24V/320AH |
Charger ( Input single phase) | 24V/40A built-out |
Tires Type | Rubber |
Overall Length | 97" |

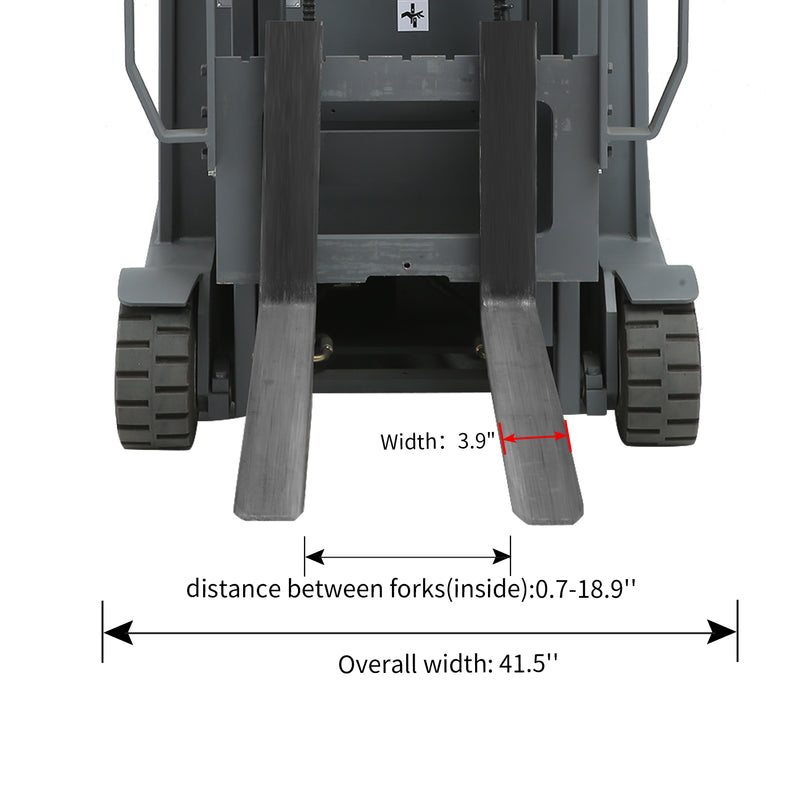

Overall width | 41.5" |
Recommended Aisle Width | 124" |
Turning Radius | 61" |
Mast Height Lowered | 77.9" |
Mast Height Raised | 236" |
Free Lifting height (with / without backrest) | 52"/66" |
Mast Tilt Degree (forward/backward) | 3° /6 ° |
Fork Dimension (Thickness/Width/Length) | 1.3" /3.9"/ 37.4" |
Side Shifter |
Left and right reach distance 2''
|
Travel Speed(laden/unladen) | 4.3 / 4.3mph |
Lifting Speed(laden/unladen) | 3.9 / 5.9 inch/s |
Lowering Speed(laden/unladen) | 15 /15 inch/s |
Temperature range of working environment | 50˚F ˜ 104˚F |
Apollo Forklift provides 1 Year limited warranty upon the date of product’s receipt, easy-wearing parts and human damages are not covered by warranty. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty.
1- Within 30 days of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided. In case our after-sale department determines the product needs to return for repair, all round-trip shipping costs will be borne by us."
2- Within 30 days-1 year of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided, if the product needs to return for repair as necessary, the customer needs to bear half of the shipping costs.
3- After 1 year of the receipt, if the product exists any quality problem, free technical guidance will be provided, however the customer needs to pay for the replacement parts, and if needs to return for repair, related maintenance costs as well as all round-trip shipping costs will be charged, which will be quoted in depends
Please note for spare parts orders, the warranty period is 3months, battery is 6months.
- We deliver the goods from multiple warehouses and using different freight carriers depending on customer’s location.
- The standard shipping cost is based on delivery to a freight terminal or to a commercial business address with self-unload type.
- The standard shipping cost is excluded the additional services, such as Lift Gate Service, Residential Delivery Service, or Phone Call Service, please specify at the time of ordering.
- For remote or difficult to reach addresses it is possible that additional shipping charges can apply. Including but not limited to Alaska Hawaii, Puerto Rico.
- For delivery to Canada and Mexico country, involving with customs clearance policies and procedures, pls contact with our sales before purchase.
