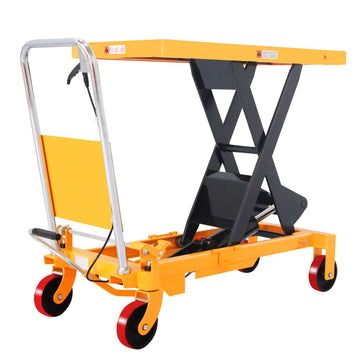

Single Scissor Lift Table 1760 lbs. 35.4" lifting height (6814957306024)

Single Scissor Lift Table 1760 lbs. 39.5" lifting height

  • SKU:
    A-2005
Regular price $375.00
Sale price $375.00 Regular price
Product description

MOBILE  MANUAL LIFT TABLE

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED  HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2003 27*18" 330 lbs 11.9'' 43'' 31.4" 141 $395
A-2007 36*20'' 770 lbs 13.8'' 51'' 37.4'' 223 $595
A-2010 48*24'' 1760 lbs 18.7'' 59'' 40.3'' 379 $895

 *SINGLE SCISSOR LIFT TABLES

MODEL NO. PLATFORM L*W CAPACITY HEIGHT LOWERED HEIGHT RAISED HEIGHT EXTENDED WT (LBS) PRICE EACH
A-2016 27*18" 330 lbs 8.8'' 29'' 20.2'' 92 $165
A-2001 32*20'' 660 lbs  11'' 35.4'' 24.4'' 165 $235
A-2002 32*20'' 1100 lbs 11'' 35.4'' 24.4'' 187 $285
A-2005 40*20'' 1760 lbs 16.5'' 39.5'' 22.9'' 254 $375
A-2013 39.4x19.7'' 440 lbs 13'' 26.4'' 39.4'' 156 $295
A-2015 48x24'' 3300 lbs 16.5'' 39.4'' 22.8'' 371 $445
A-2014 40x20'' 2200 lbs 15'' 39.4'' 24.4'' 325 $405


DIMENSIONS

  • Platform(Actual): 39.3*20*2.2'' (L*W*Thickness)
  • Height:
    • Handle Upright: 39'' (can not be folded down)
    • Table Max.lifting height: 39.5"
    • Table lowered height: 16.5"
  • Table Material: Steel
  • Frame Material: Steel
  • Brake Type: Foot brake
  • Scissor Type: Single
  • Lift Control: Foot Pump
  • Lift Mechanism: Hydraulic

FEATURES:

  • Foot pedal cycles to max height: 70
  • Handle plate provides protection from falling down.

Click Here :Assemble the handle of lift tables.
