Semi-Electric Power Lift Straddle Stacker 3300Lbs 118"Lifting

  • SKU:
    A-3012
Regular price $3,790.00
Sale price $3,790.00 Regular price
Semi-Electric Power Lift Straddle Stacker 3300Lbs 118"Lifting

Semi-Electric Power Lift Straddle Stacker 3300Lbs 118"Lifting

Regular price $3,790.00
Sale price $3,790.00 Regular price
Product description

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

  • 1,500-watt lift motor.
  • Special chain steering system.
  • Easy operation for lifting and lowering.
  • Strong battery with 12V/100AH capacity and over charge design.
  • Adjustable forks & straddle legs
MODEL NO. LOAD CAPACITY  LEGS TYPE BATTERY CAPACITY LIFTING HEIGHT HEIGHT        LOWERED  WT (LBS)  PRICE EACH
A-3016 3,300 lbs Fixed 12V/100AH 118'' 3.5'' 910 $3337
A-3011 3,300 lbs Straddle 12V/100AH 98" 3.5'' 950 $3537
A-3012 3,300 lbs Straddle 12V/100AH 118" 3.5'' 990 $3737

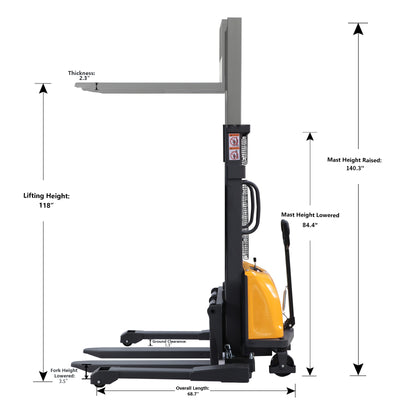

DIMENSIONS:

  • Overall Length:68.7"
  • Overall Width: 44½"-60.3"
  • Recommended Aisle Width: 90"
  • Turning Radius: 56.1"
  • Mast Height Lowered: 84.4"
  • Mast Height Raised: 140.3"
  • Load Center: 15.7"
  • Wheel Diameter:  7''/3.15''

FORKS:

  • Fork height, Lowered: 3.5''
  • Thickness: 2.3''
  • Width: 5.6''
  • Length: 42''
  • Adjustable fork width 11.8~36.6"

FEATURES:

  • Foot pedal brake for safety and ramp usage.
  • Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
  • With hydraulic leveler control lifting and lowering, speed is adjustable.

SPEED:

  • Lifting speed(laden/unladen) : 2/3.2mph
  • Lowering speed(laden/unladen) : 3.9/3.5mph

SPECIFICATIONS:

  • Not explosion proof.
  • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even it's not in use.

Click Here :Assemble the welded fork.
