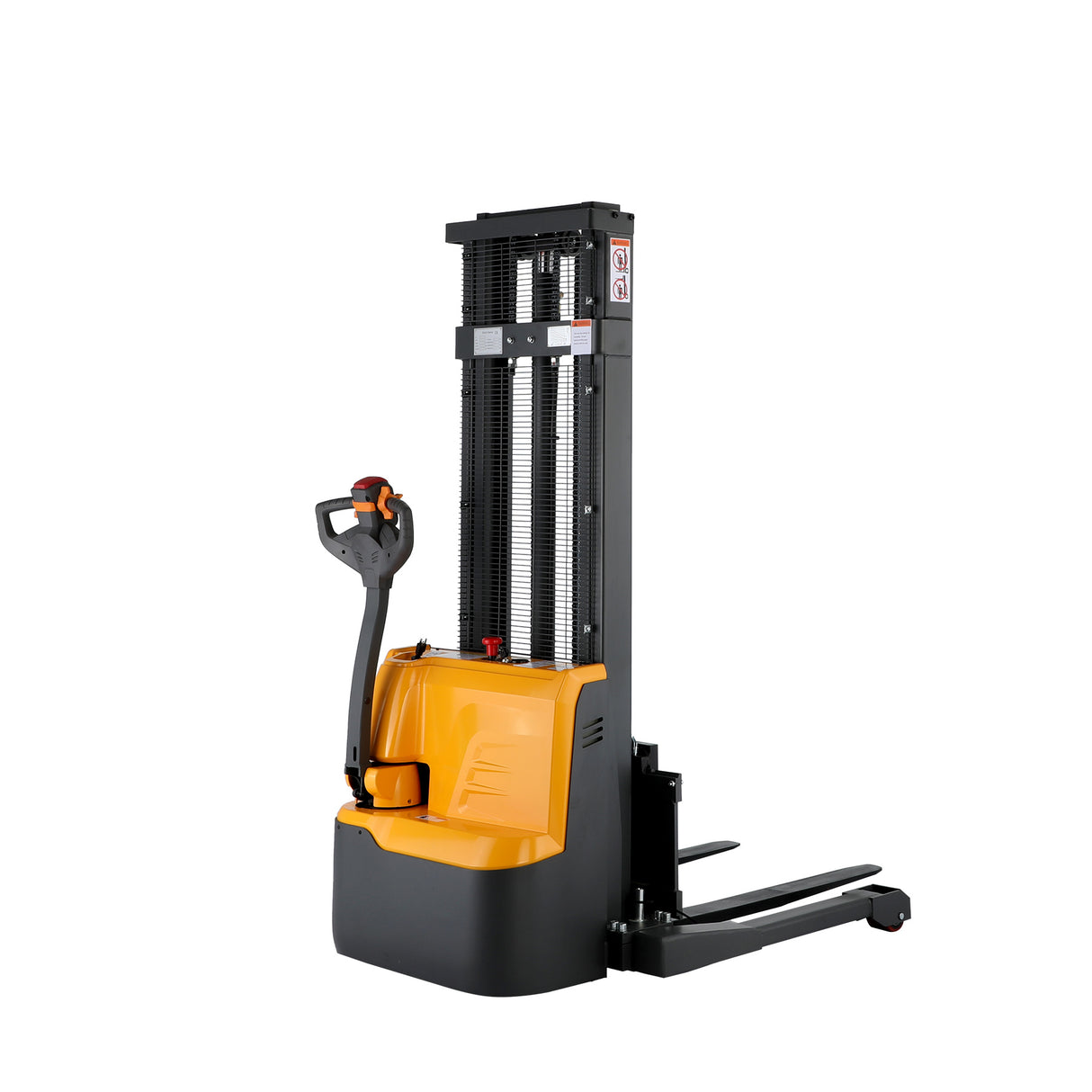

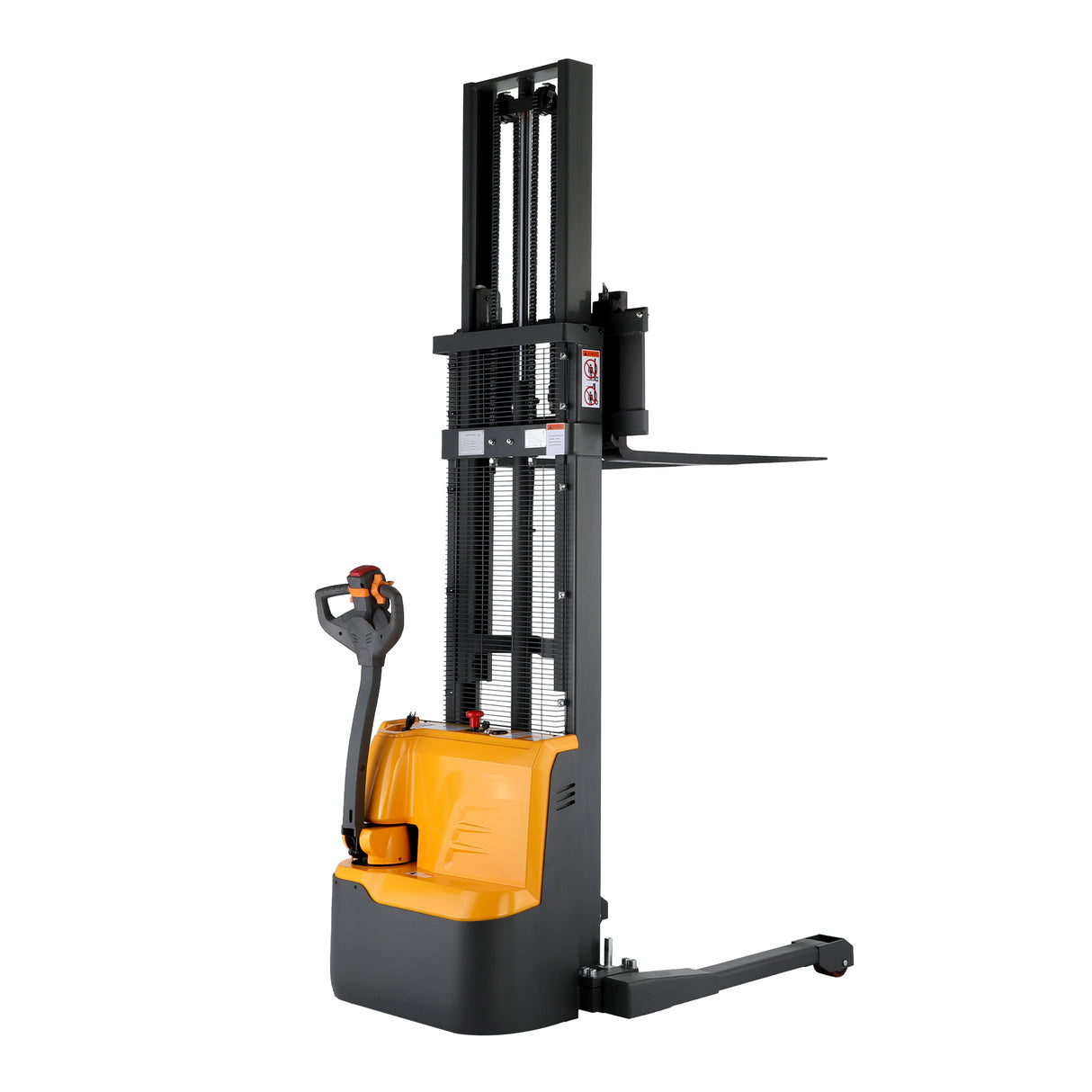

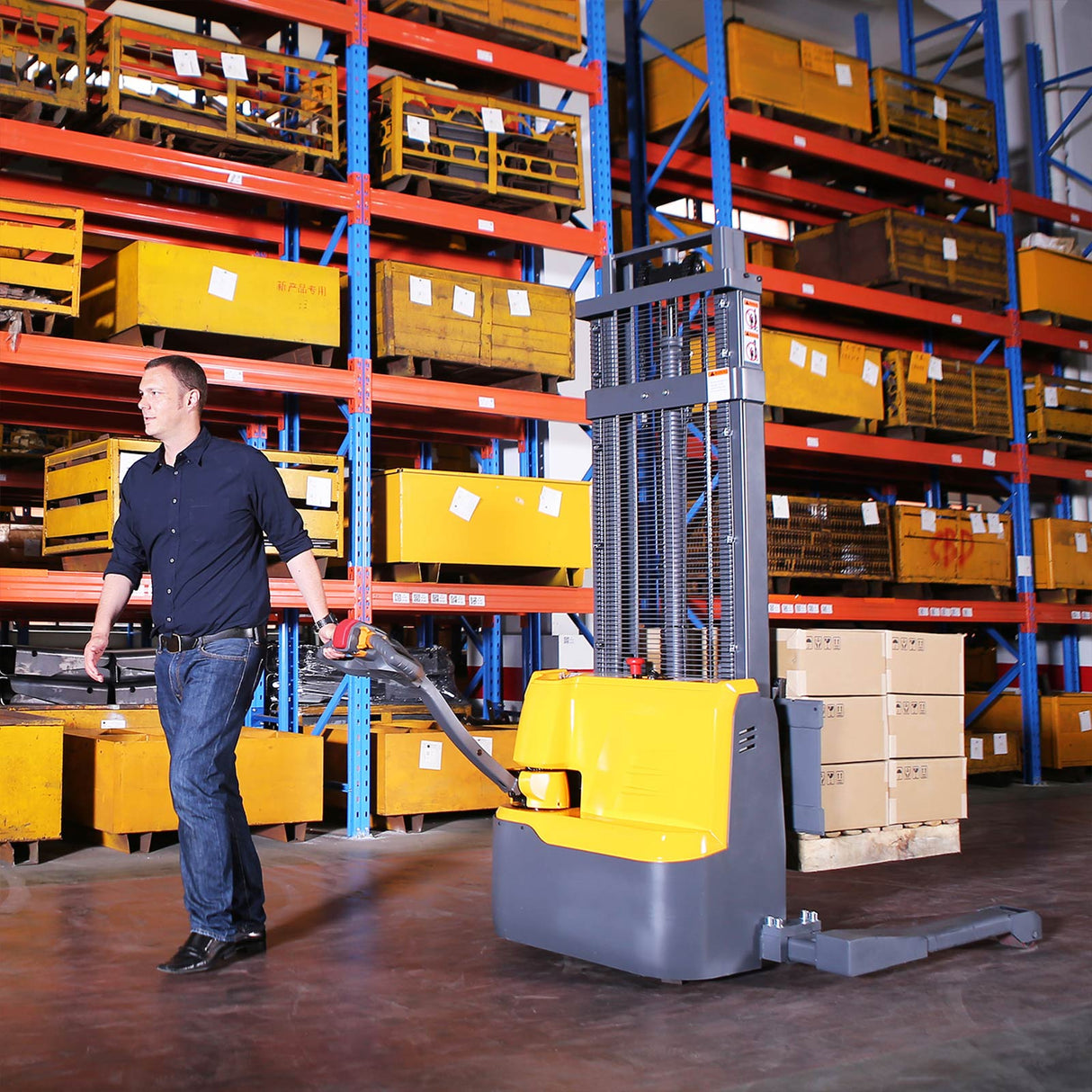

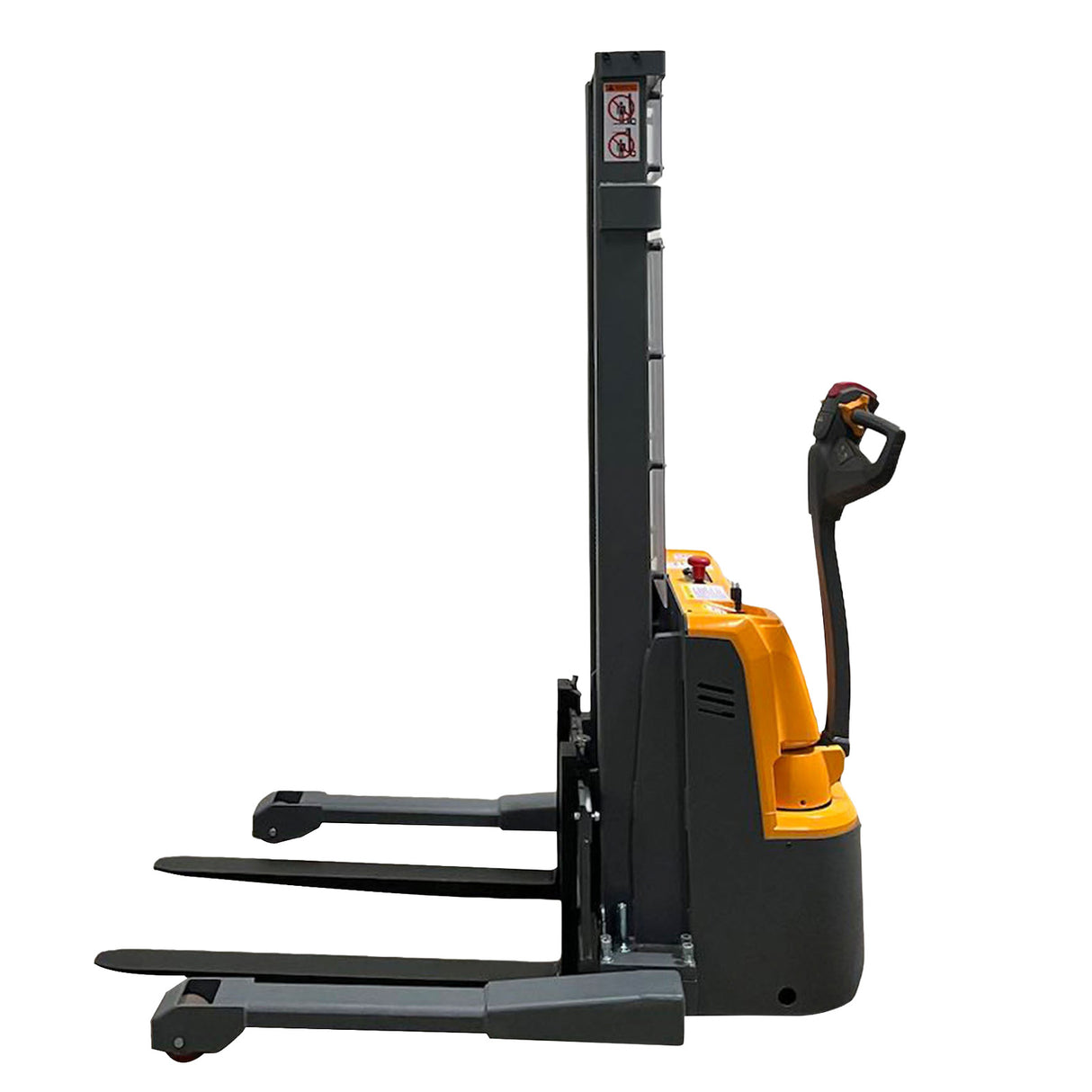

THE BEST CHOICE FOR NARROW SITE

• 650-watt drive motor, 2,200-watt lift motor.
• Forks are adjustable to fit most pallets.
• Curtis (US Brand) Controller.
• Use GEL battery free to maintain.

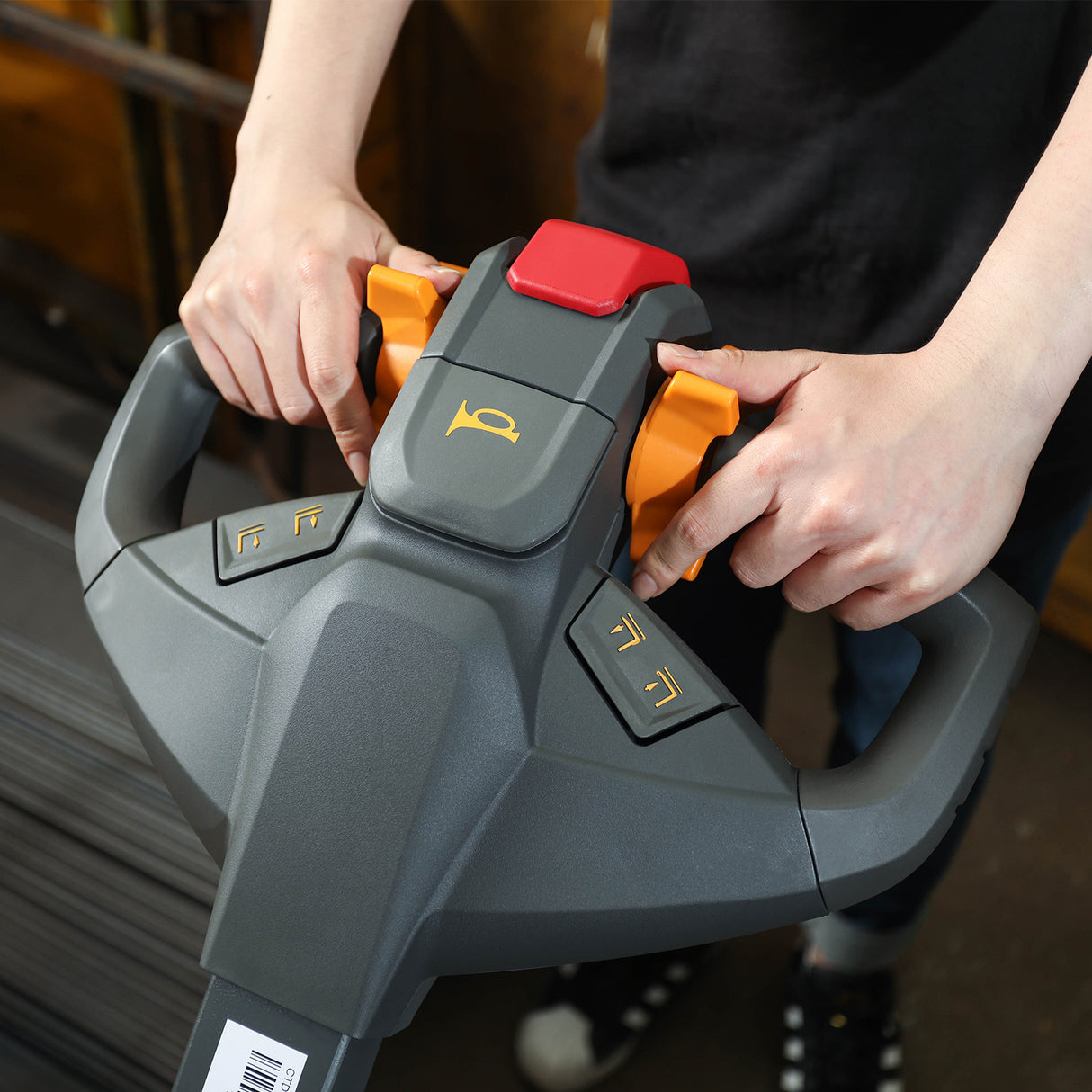

• Both sides of button for lifting and lowering operation.
• Multi-function display shows the working hours, battery status and low-voltage protection.

*FULLY POWERED STACKERS

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*REPLACEMENT PARTS

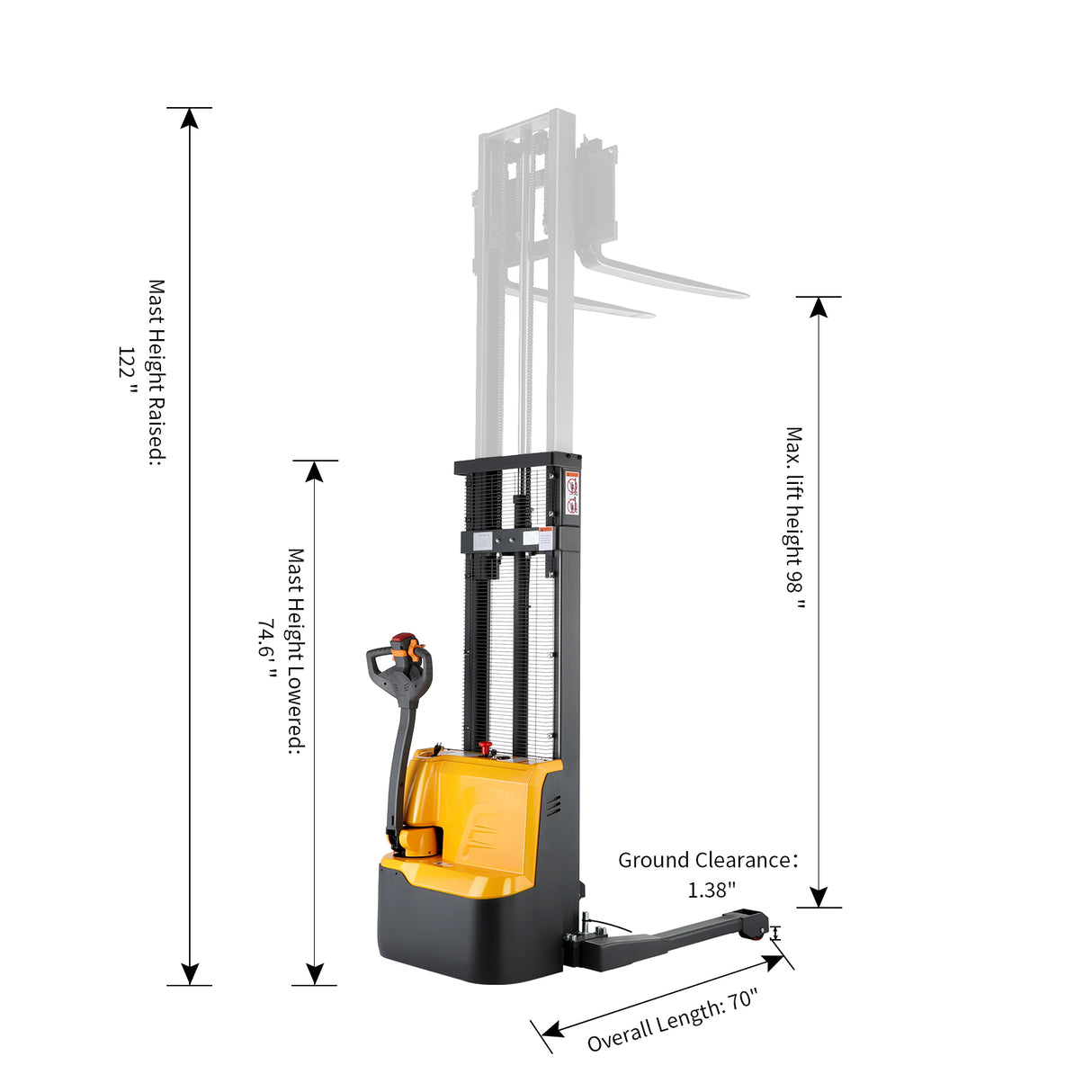

DIMENSIONS

• Overall Length: 70"
• Recommended Aisle Width: 89.7"
• Turning Radius : 58.6"
• Mast Height Lowered: 74.6''

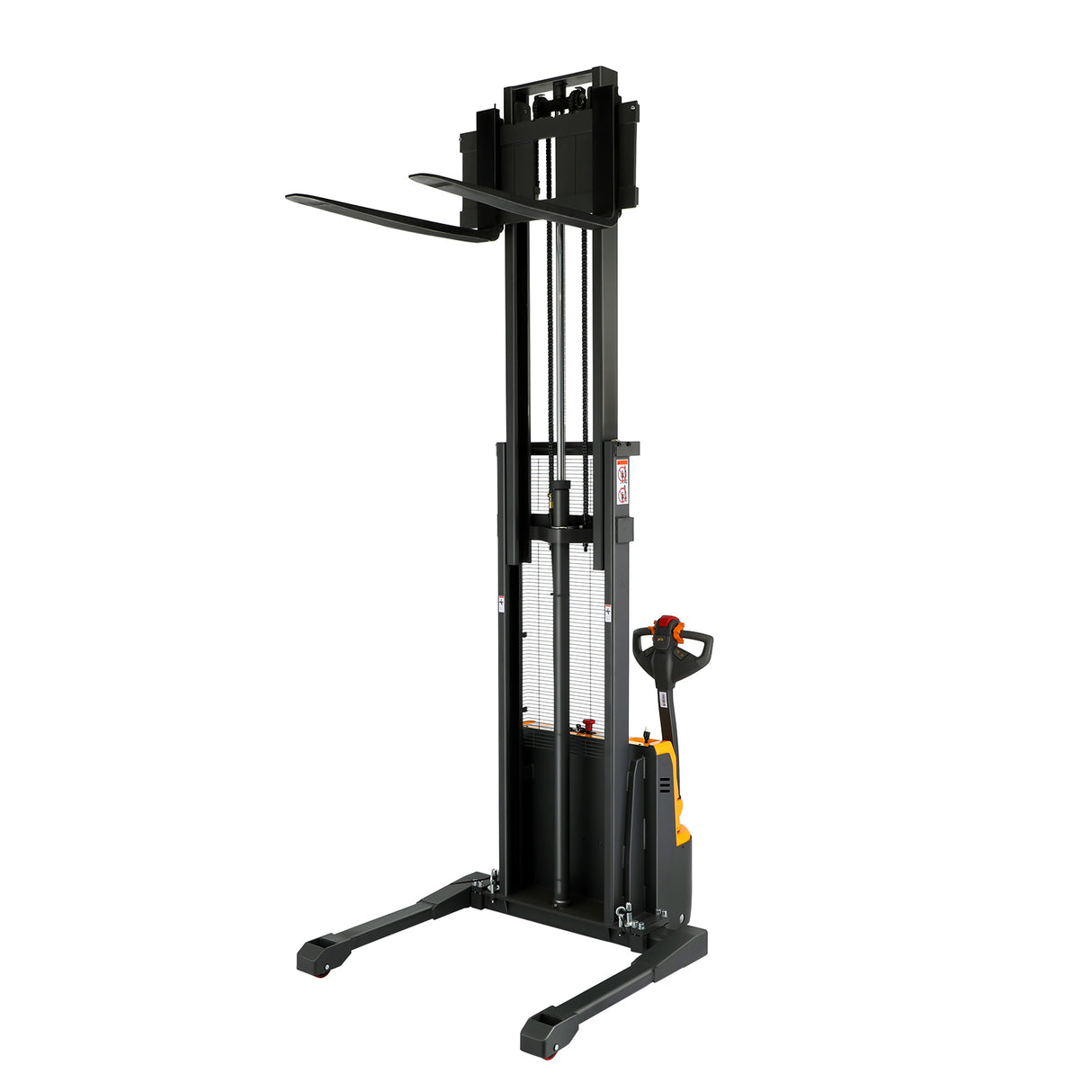

• Mast Height Raised : 122''
• Load center : 23.6"
• Ground Clearance: 1.38"

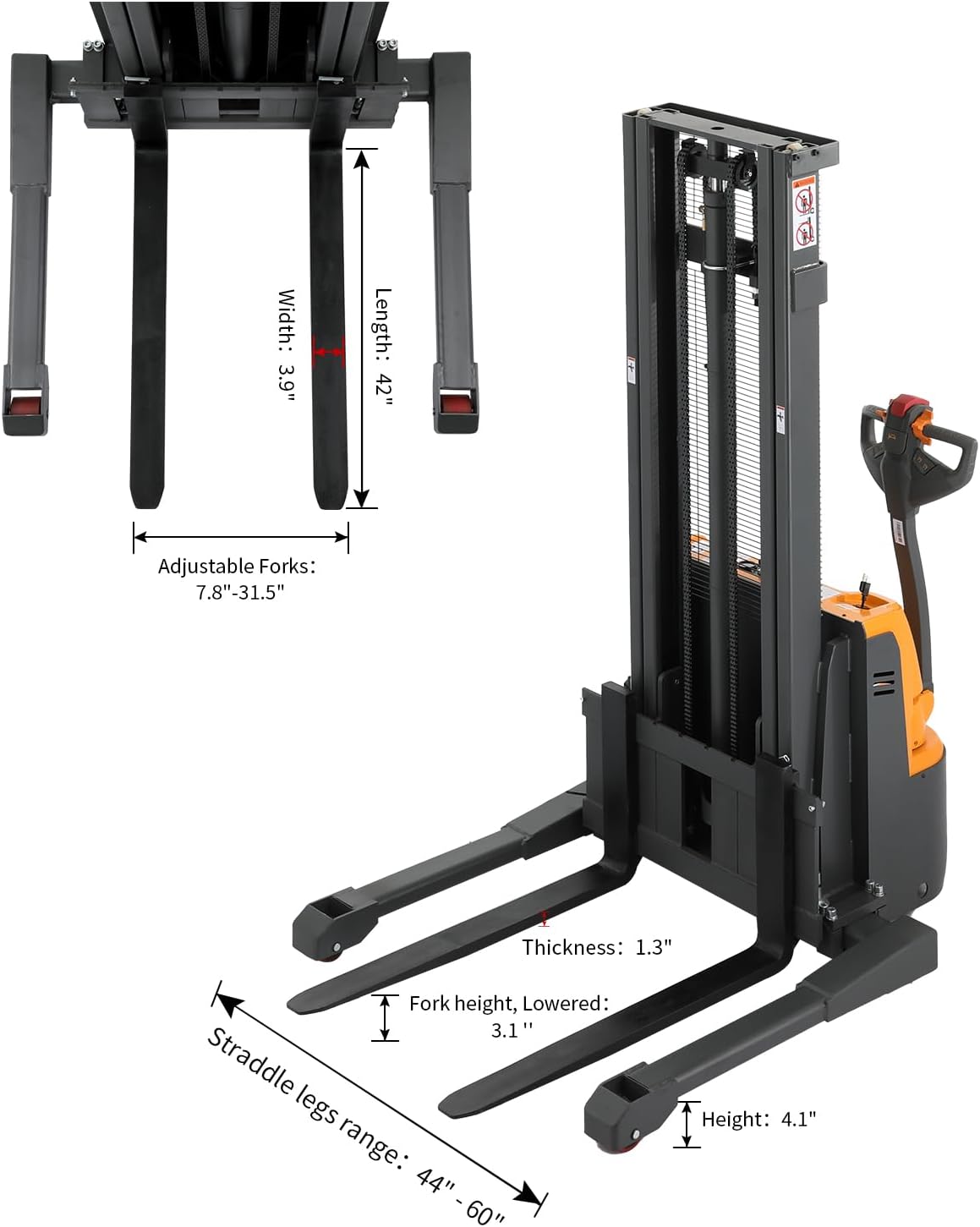

FORKS

• Fork height, Lowered : 3.15''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

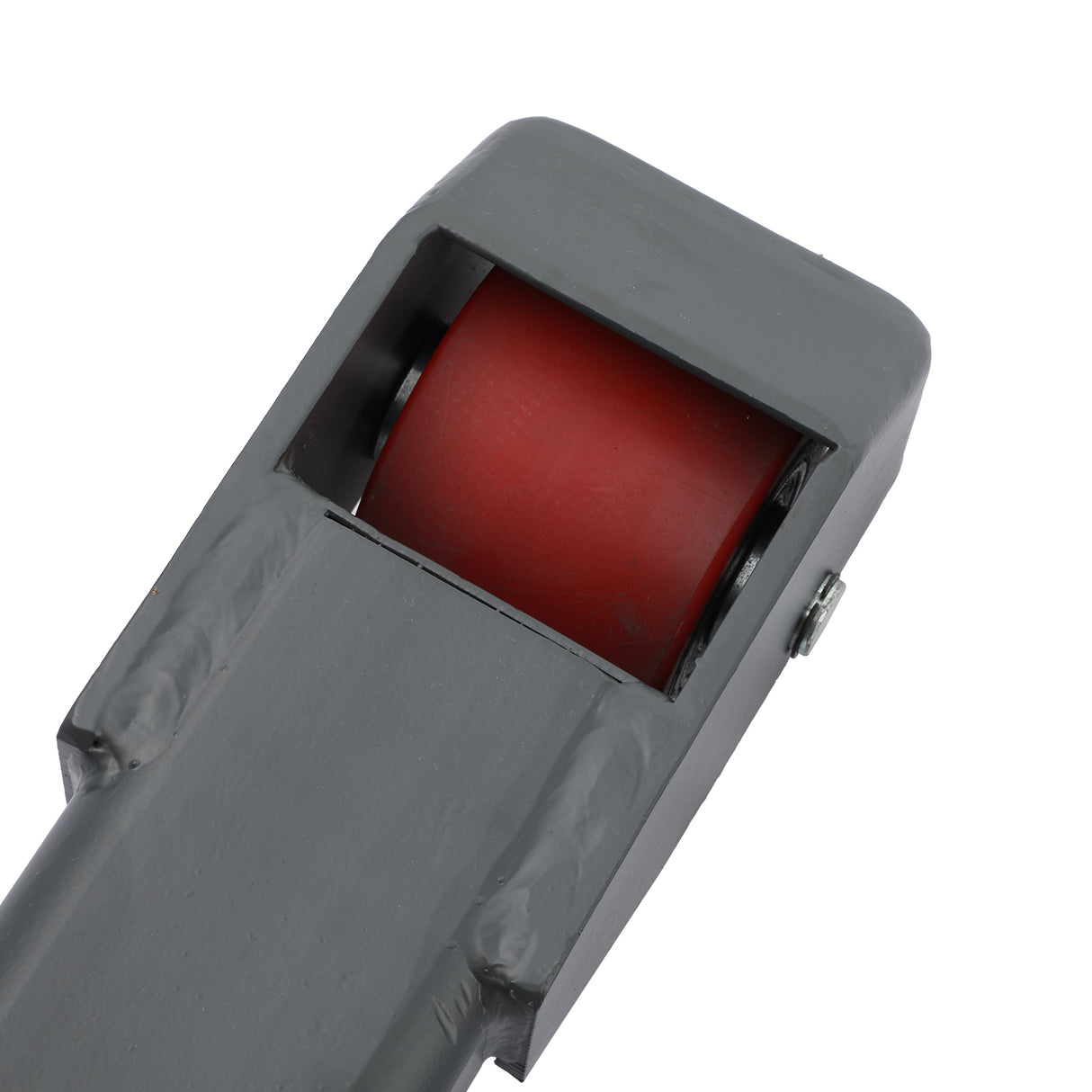

STRADDLE LEGS

• Height: 4.1"
• Adjustable range: 44" - 60"

FEATURES

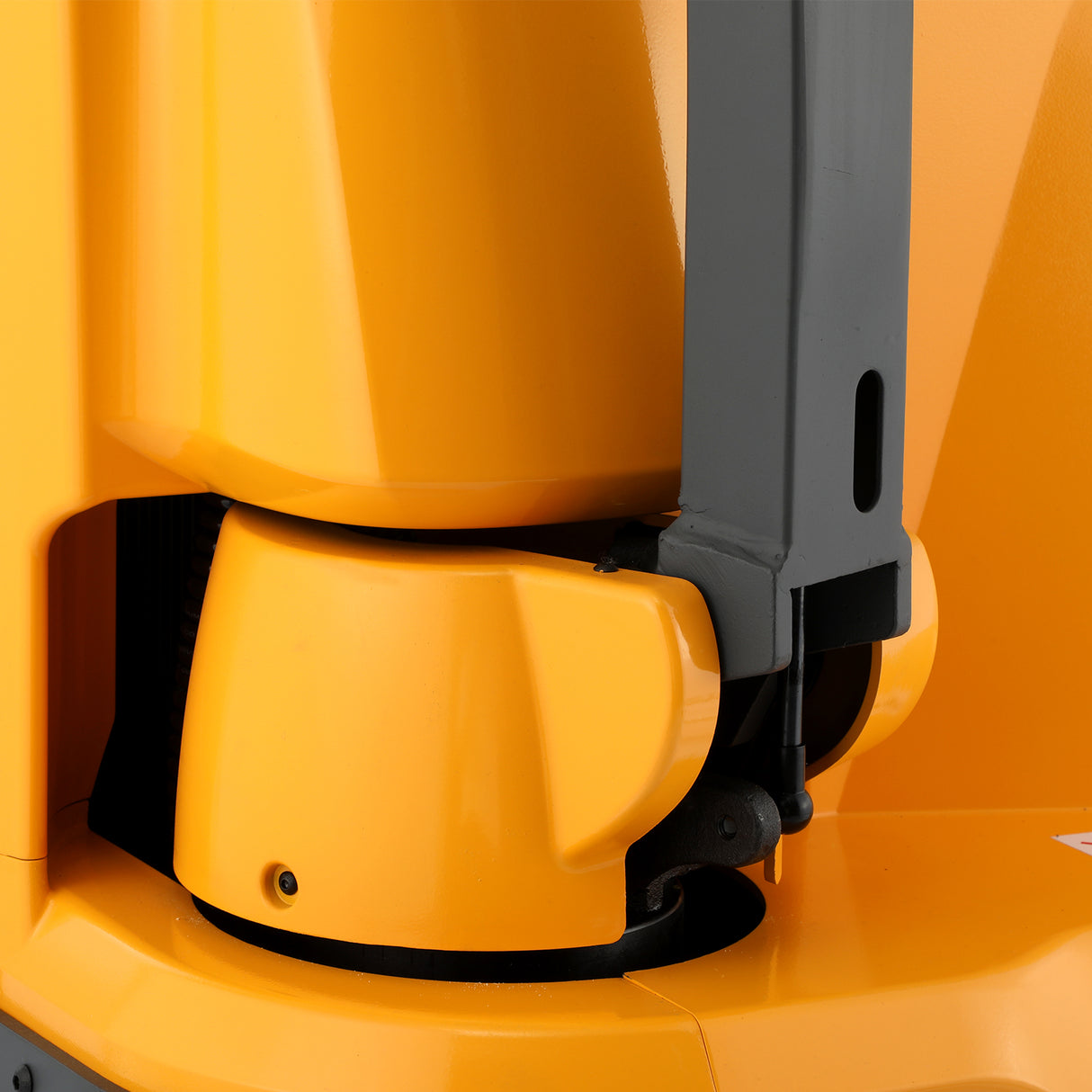

• Smooth rolling polyurethane wheels.180° steering arc.
• 110V Built-in Charger.
• 6 hours service per charge: two 12-volt, 125Ah rechargeable GEL batteries.

SPEED

• Travel speed(laden/unladen) : 2.8/3.1mph
• Lifting speed(laden/unladen) : 3.1/4.3inch/s
• Lowering speed(laden/unladen) : 4.7/3.9inch/s

SPECIFICATIONS

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Temperature range of working environment below 50˚F~104˚F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.
