Lead acid Battery 4-wheel Electric Forklift 5500lbs Cap. 197" Lifting A-4004
Want to get a quote?
Please contact us for the best price：sales@apolloliftus.com
Lead acid Battery 4-wheel Electric Forklift 5500lbs Cap. 197" Lifting A-4004

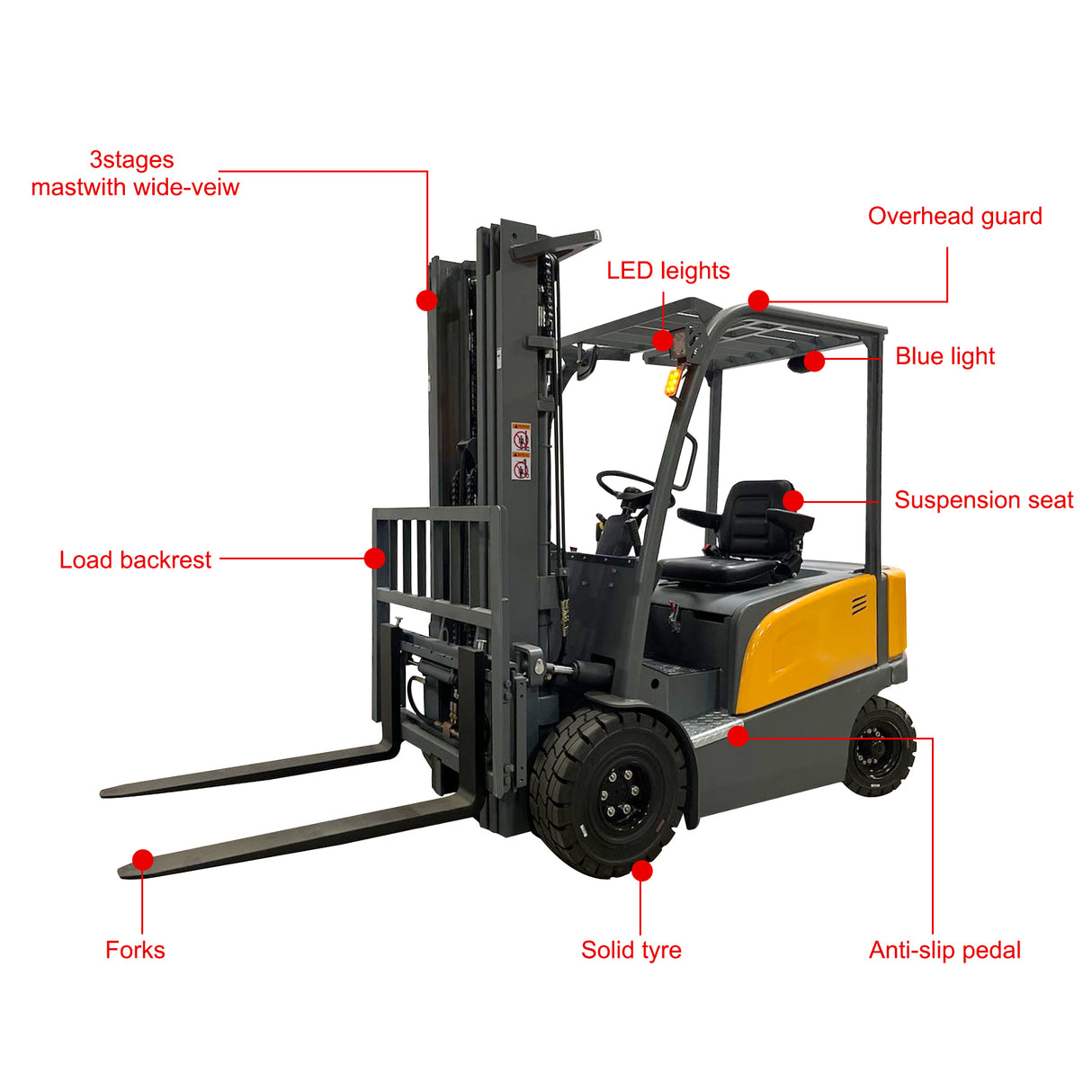

FEATURES
- Load Capacity 5500 lbs
- Raised Height 197"
- Side Shifting Forks
- Fork Length 42“
- Hydraulic Steering
- Battery 48V/500AH
- Solid Cushion Tires

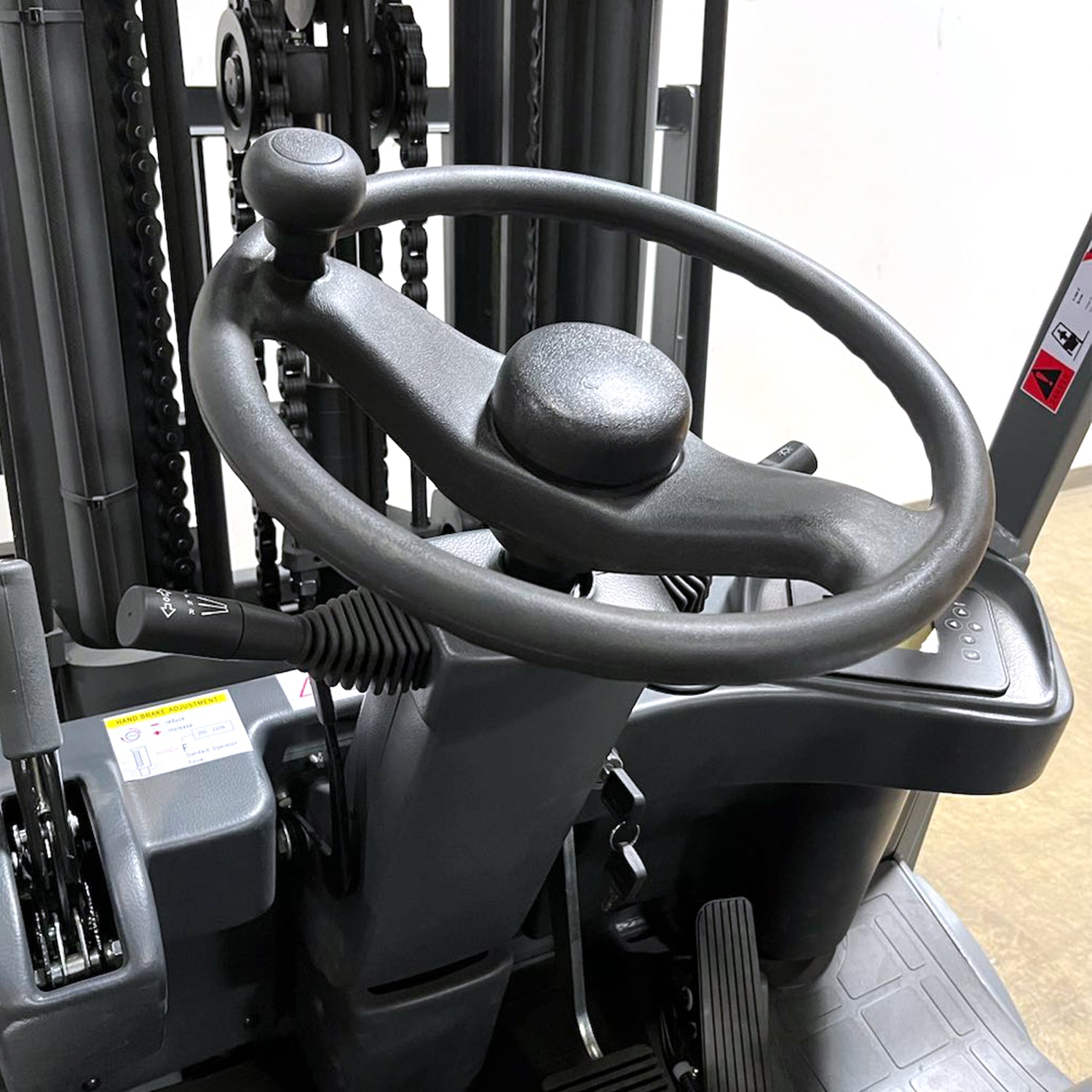

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/70A(built-out)
SPECIFICATIONS
| Model NO: | A-4004 |
| Operator Type: | Seated |
| Load Capacity | 5,500 lbs |
| Max. Lifting Height (Fork) | 197" |
| Load center | 19.7" |
| Cabin Height | 83" |
| Battery Type | Lead acid |
| Battery Capacity | 48V/500AH |
| Charger ( Input 3phase) | 48V/70A built-out |
| Tires Type | Solid |

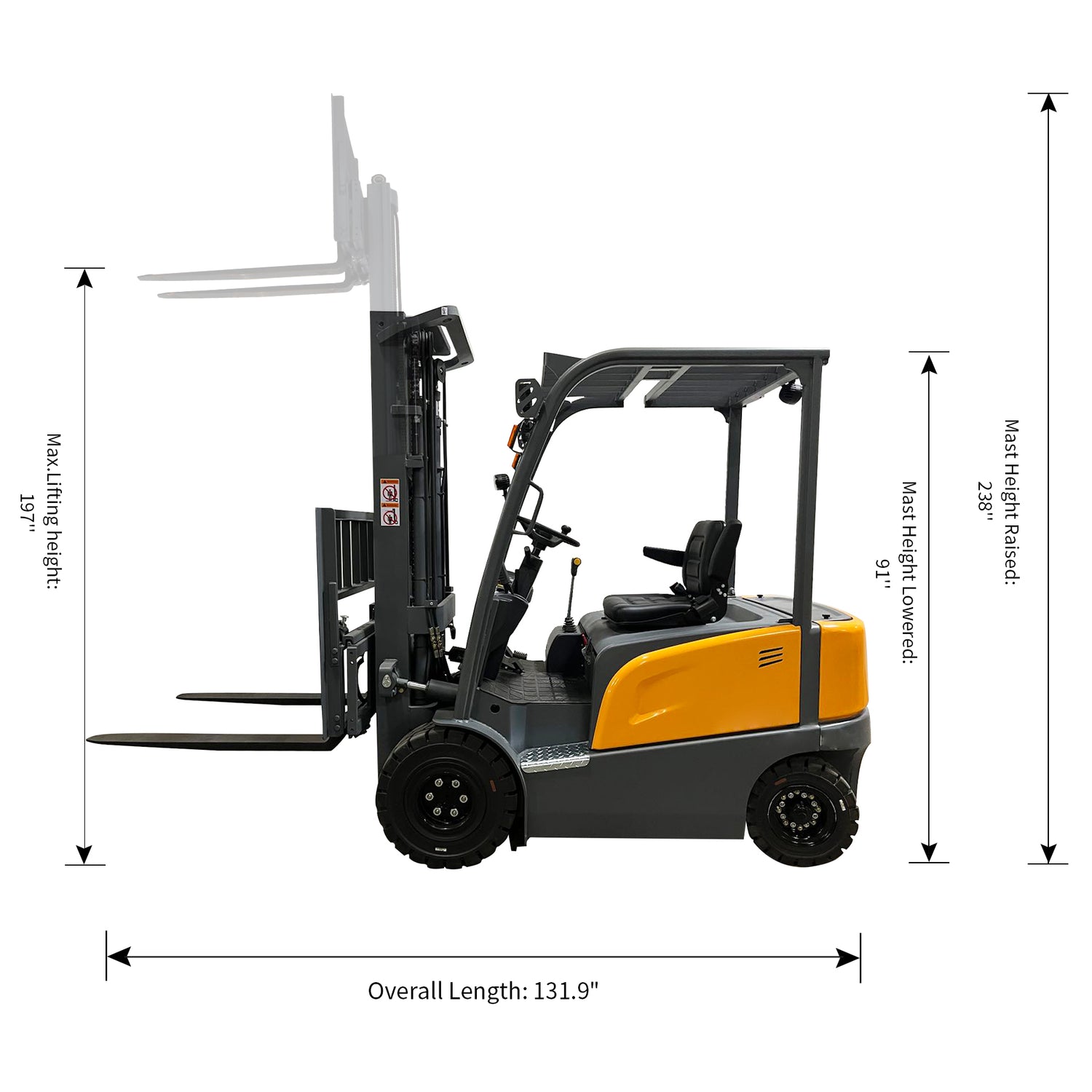

| Overall Length | 132" |
| Overall width | 47.5" |
| Recommended Aisle Width | 153.5" |
| Turning Radius | 85.8" |
| Mast Height Lowered | 91'' |
| Mast Height Raised | 238" |
| Free Lifting height (with / without backrest) | 52" / 67" |
| Mast Tilt Degree (forward/backward) | 5° /6 ° |

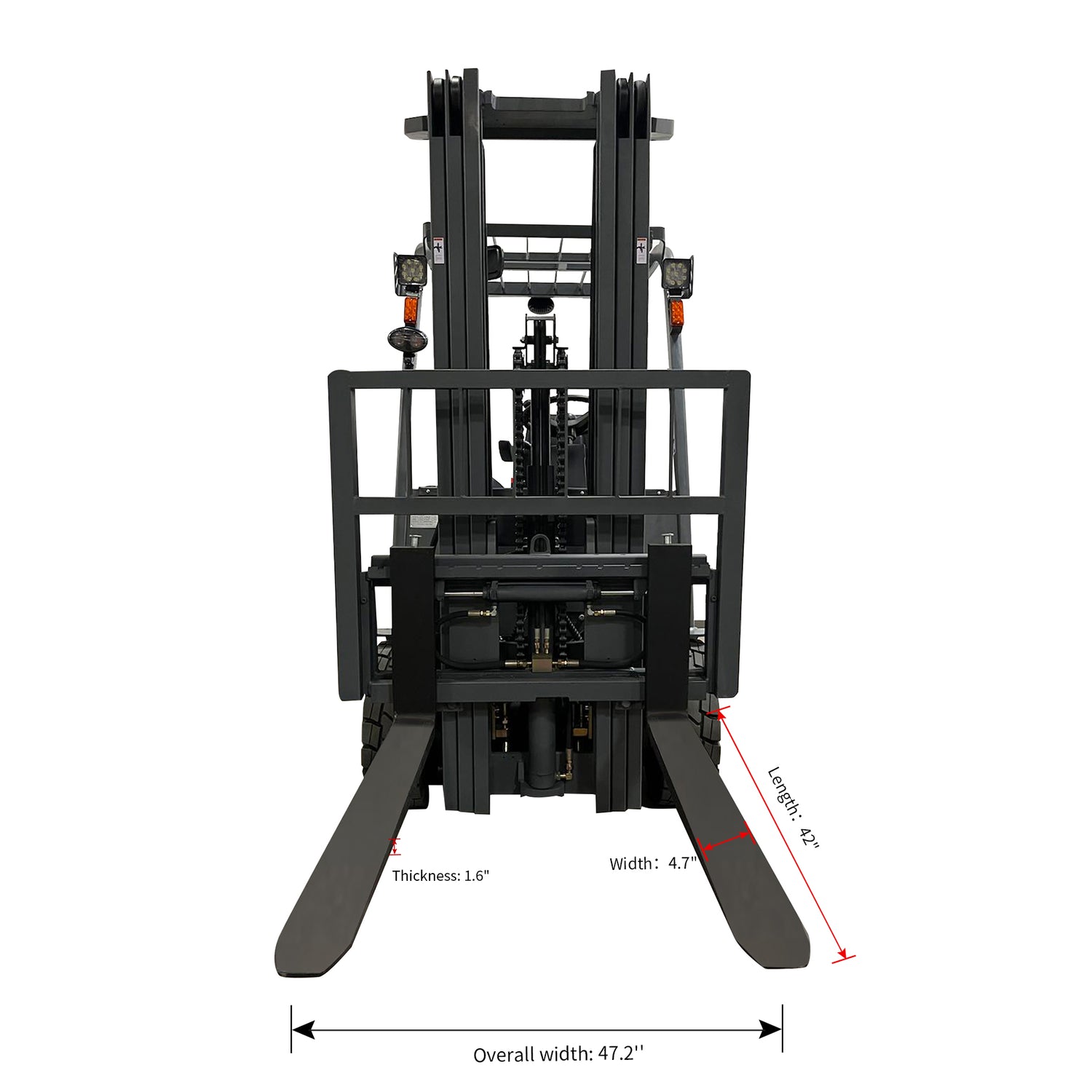

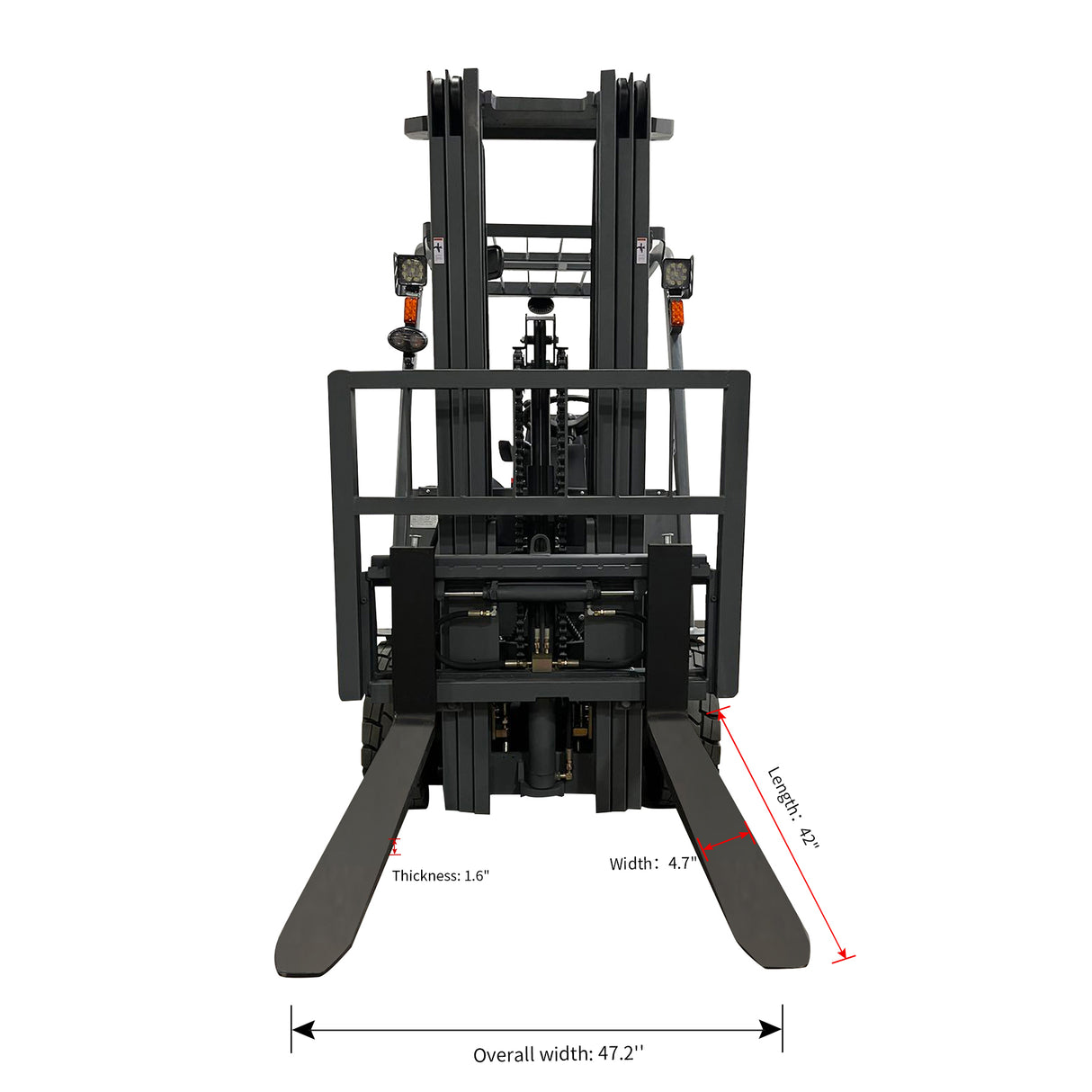

| Fork Dimension (Thickness/Width/Length) | 1.6" /4.7" /42" |
| Side Shifter | Left and right reach distance 4'' |
| Travel Speed(laden/unladen) | 7.5 / 8.1mph |
| Lifting Speed(laden/unladen) | 10.2 / 11.8 inch/s |
| Lowering Speed(laden/unladen) | 14.2 / 16.5 inch/s |
| Temperature range of working environment | 50˚F ˜ 104˚F |
