Lithium Full Electric Pallet Jack 3300lbs A-1034

  • SKU:
    A-1034
$1,590.00
$1,590.00 $1,680.00
Product description

Powered navigation for urban deliveries, small markets and limited stock space with reliable function.

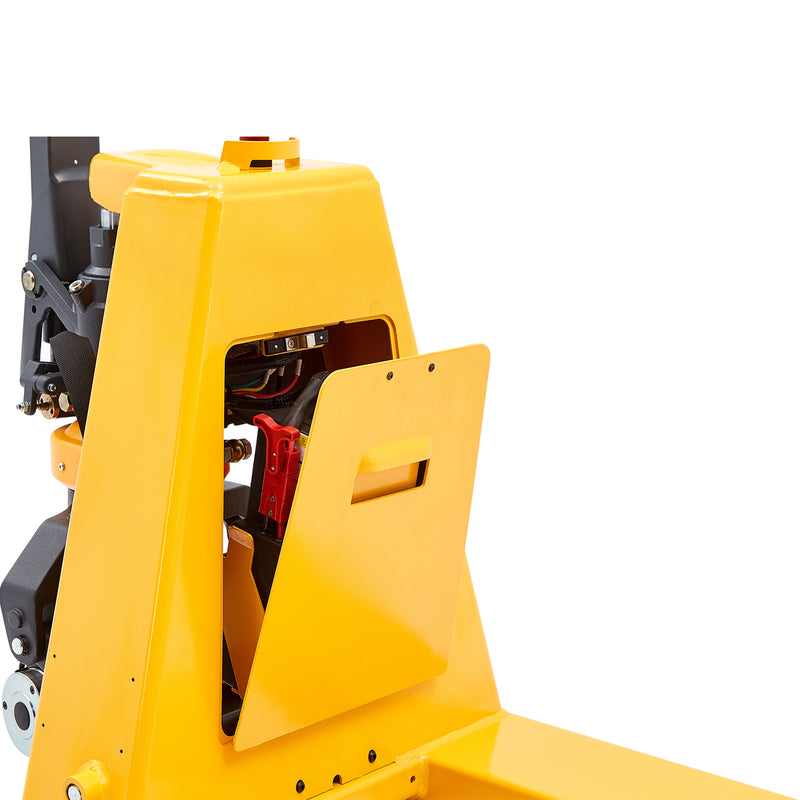

  • Quick-change battery reduces downtime.
  • Push-button lift control and forward/reverse thumb wheels on handle.
  • 3 hours service per charge. 3 hours charge time. Battery life may depending on the usage and environment.
  • 24 hours continous use with 1 extra battery.
  • Gradeability(laden/unladen): 5%/20%

* BATTERY POWERED PALLET TRUCKS

MODEL NO. FORK SIZE L x W LOAD CAPACITY WT.(LBS) RECHARGEABLE
BATTERY		 DRIVE
MOTOR		 WHEEL
DIAMETER		 WHEEL
DIAMETER		 PRICE EACH
A-1034 48x27" 3,300 lbs. 251 24V/20AH .75 kw DC 8.3"/3.15" 8.3"/3.15" $1,680
A-1018 48x27" 3,300 lbs. 298 48V/20AH .65 kw DC 9.8"/3.15" 9.8"/3.15" $2,480
A-1020 48x27" 3,300 lbs. 298 48V/20AH .65 kw DC 9.8"/3.15" 9.8"/3.15" $2,480

*Includes one lithium ion battery and charger

*REPLACEMENT PARTS

MODEL NO. DESCRIPTION SPECIFICATION WT.(LBS) PRICE EACH
S-1001 Replacement Lithium Ion Battery 24V/20AH 18 $399
S-1009 Replacement Charger 24V/6A 11 $110

DIMENSIONS:

  • Overall: 65" x 27"x47.24" (L xWx H)
  • Lowered height: 3.1''
  • Raised height: 7½"

FORKS:

  • Actual: 48 x 27"
  • Width: 6.3"
  • Thickness: 2.1"
  • Distance Between Forks (Inside): 14.37"

FEATURES:

  • Non-marking polyurethane wheels. 180° steering arc.

SPEED:

  • Empty: 2.8mph
  • Loaded: 2.67 mph

CHARGING:

  • Charger plugs into standard 110V-120V outlets.
  • Fully charge battery before use to avoid damaging cells.
  • Charge the truck once a month even it's without use.
  • LED light on charger shows battery charge status.
    • Green: Fully Charged
    • Red: Charging

SPECIFICATIONS:

  • Not explosion proof.
  • This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
  • Temperature range of working environment 50˚F~104˚F.
