APOLLOLIFT  |  SKU: A-1034

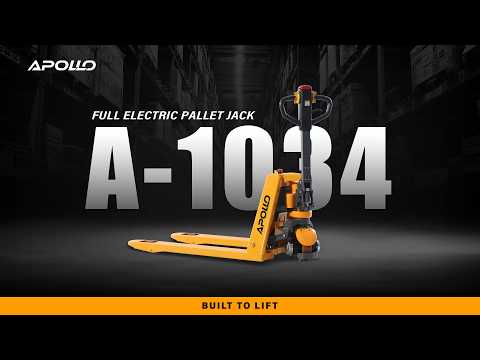

Li-ion Powered Pallet Truck A-1034

$1,249.00 $1,690.00
  • Capacity: 3300 lbs.
  • Fork Size: 48" x 27"
  • Battery Spec: 24V/20AH
  • Battery Type: Lithium Battery
Processing Time: Requires 2 business days before shipping.
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

For tight spaces: Small turning radius of 57.1 in for maneuvering in tight spaces such as truck cabins and containers

24V 20Ah lithium battery: 3-hour charging time, 3-hour operating time

10S Quick battery replacement within 10 seconds and convenient side charging interface for independent battery charging

Turtle mode for slow and controlled upright movement in confined areas

Multiple safety features including drive wheel protection, overload lifting protection, emergency power cut-off, and belly switch emergency reverse for operator safety

Ensures continuous operation with minimal downtime

To prolong battery life and ensure proper function, charge once a month when not in use.The kind of truck is applicable for goods transportation on hard and flat floor.

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    88.6"
  • Max.Lifting Height
    7.3"
  • Inside Distance Between Forks
    14.4"
  • Fork Length
    48"
  • Fork Overall Width
    27"
  • Single Fork Width
    6.3"
  • Overall Height
    50.7"
  • Overall Length
    63.8"
  • Overall Width
    27"
  • Driving Speed-Unladen
    2.8 mph
  • Driving Speed-Laden
    2.7 mph
  • Lifting Speed/Empty
    0.8 inch/s
  • Lifting Speed/Loaded
    0.6 inch/s
  • Gradeability/Empty
    20%
  • Gradeability/Loaded
    5%
  • Total Wheel Count
    3
  • Turning Radius
    57.1"
  • Lifting Distance
    4.3"
  • Battery Capacity
    20AH
  • Battery Spec
    24V/20AH
  • Battery Voltage
    24V
  • Battery Type
    Lithium Battery
  • Fork Thickness
    2.1"
  • Stabilizer Wheel
    No
  • Fork Lowered Height
    3"
  • Service Weight
    270 lbs.
  • Gross Weight
    285 lbs.
  • Brake Type
    Electric brake
  • Charger
    24/6A built-out
  • Charging Time
    3 Hours
  • Continuous Working Time
    3 Hours
  • Package Size
    67"x27"x30"
  • With Lcd Panel
    No

Electric Pallet Jack

Primary Equipment for High-Frequency Horizontal Transport

Electric pallet jacks are built for consistent, day-to-day pallet movement. They significantly reduce physical strain and improve operational efficiency.

  • Powered travel and lift
  • Ideal for medium to high-volume operations
  • Increases productivity while lowering labor fatigue
  • Standard equipment in most warehouses
Best Fit
Warehouses, distribution centers, busy loading docks, and 3PL facilities.
Positioning:
This is the go-to solution for horizontal transport.
If stacking at rack height is required, consider an Electric Stacker.

⚠️ Notice:

  • Handle Self-Installation Required, Handle Self-Installation Required, including for Self Pickup Orders
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product comparison

Yellow Apollo pallet jack on a white background
Li-ion Powered Pallet Truck A-1034
$1,249.00 $1,690.00
Li-ion Powered Pallet Truck A-103701 | 3,300 lb Capacity
$1,650.00 $2,000.00
Capacity (lb)
Capacity (lb)
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
7.3"
7.3"
Max Fork Height (in)
Max Fork Height (in)
3"
3"
Service Weight (lb)
Service Weight (lb)
270 lbs.
290 lbs.
Fork Size (in)
Fork Size (in)
48" x 27"
48" x 27"
Turning Radius (in)
Turning Radius (in)
57.1"
55.7"
Aisle Width (in)
Aisle Width (in)
88.6"
87.0"
Charger
Charger
24/6A built-out
24V/10A built-out
Fork Length (in)
Fork Length (in)
48"
48"
Fork Overall Width (in)
Fork Overall Width (in)
27"
27"
Single Fork Width (in)
Single Fork Width (in)
6.3"
6.3"
Fork Thickness (in)
Fork Thickness (in)
2.1"
2.8"
Fork Lowered Height (in)
Fork Lowered Height (in)
3"
3"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
14.4"
14.4"
Overall Length (in)
Overall Length (in)
63.8"
65"
Overall Width (in)
Overall Width (in)
27"
27"
Overall Height (in)
Overall Height (in)
50.7"
48.1"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
2.8 mph
3.0mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.7 mph
2.8 mph
Lift Speed - Unladen
Lift Speed - Unladen
0.8 inch/s
1.6 inch/s
Lift Speed - Laden
Lift Speed - Laden
0.6 inch/s
1.2 inch/s
Braking System
Braking System
Electric brake
Electric brake
With LCD Panel
With LCD Panel
No
Yes
Stabilizer Wheels
Stabilizer Wheels
No
Yes
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Removable Battery
Removable Battery
Yes
Yes
Gradeability (Empty)
Gradeability (Empty)
20%
20%
Gradeability (Loaded)
Gradeability (Loaded)
5%
5%

Frequently Asked Questions

How is the shipping fee calculated?

Shipping fees are automatically calculated at checkout based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional charges may apply for special delivery services or remote locations. If you are ordering multiple items, please contact info@apolloliftus.com as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically ship from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery times may vary depending on the carrier's schedule. Our logistics team will monitor the shipment throughout the process. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get an invoice?

Please email us your PO number at info@apolloliftus.com. Our team will process your request and send you the invoice.

Can I pick up my order?

Yes. Please select “Pick Up” as your delivery method when available. After your order is confirmed, our team will email you the pickup slip. Please bring a copy of the pickup slip and arrive at the designated time and address shown on the document. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. Spare parts are available for purchase on our website. If you are unsure which part you need or cannot find the correct part, please contact our service team at service@apolloliftus.com with product photos, the part name or photos, and the SKU so we can assist you.

Do electric products come with accessories?

Yes. Our electric products include the original charger and battery set. We recommend charging the battery promptly after receiving the equipment and before initial use.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries use mature technology and provide reliable performance in both high and low temperatures, but they generally require longer charging times and more routine maintenance. Lithium batteries are lighter and more compact, charge faster, require less maintenance, and are better suited for frequent-use applications.
