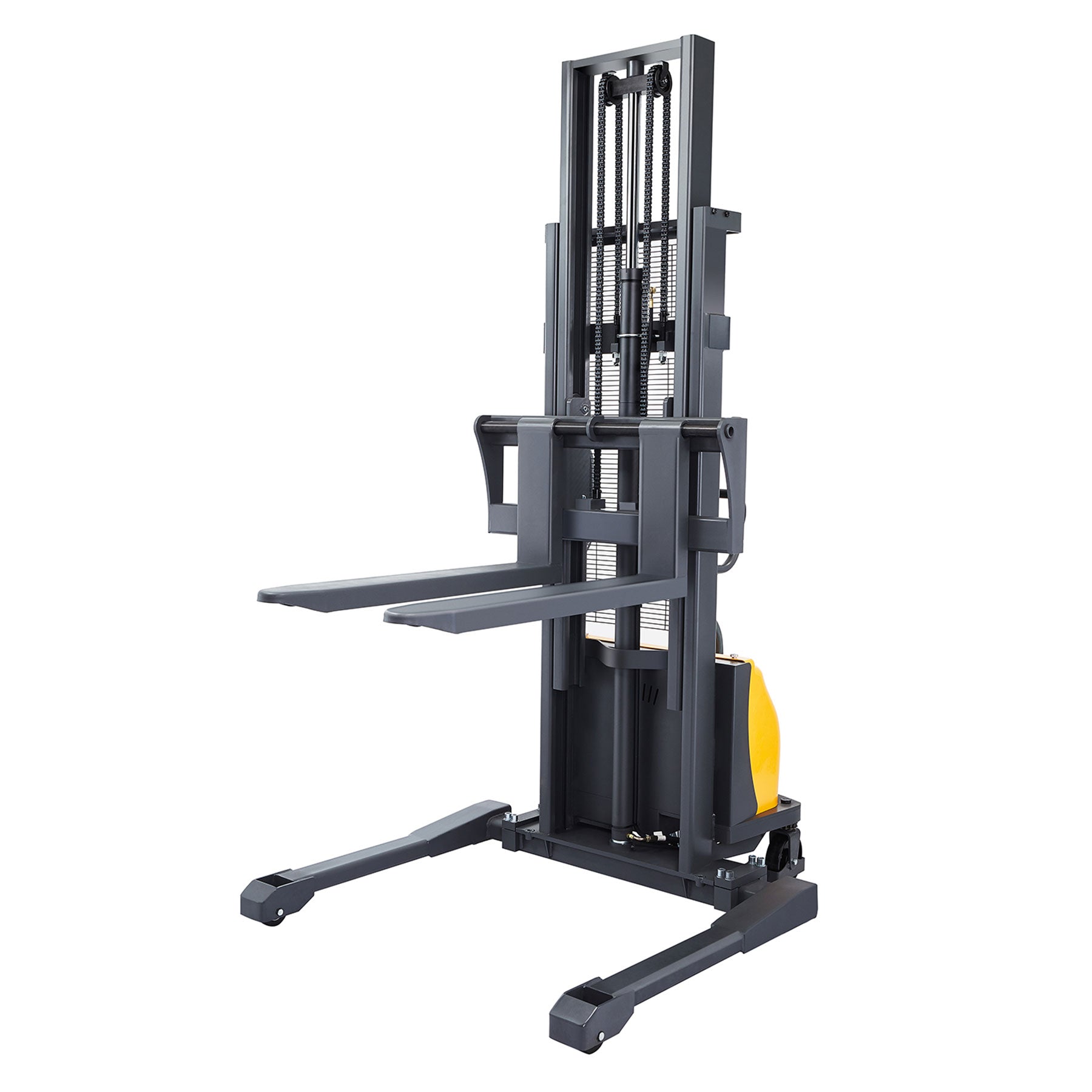

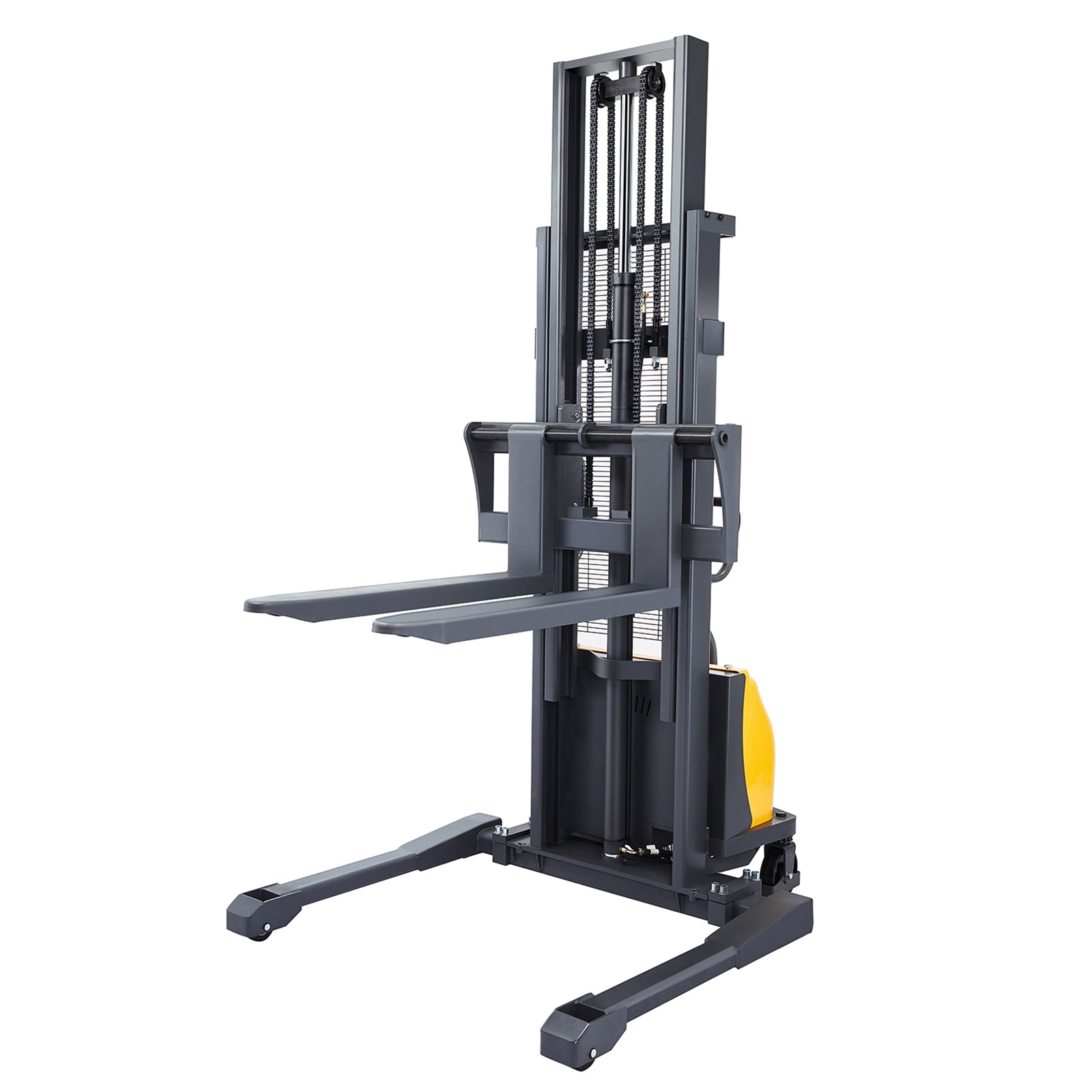

Semi-Electric Straddle Stacker 2200Lbs Cap. 98" Lifting
APOLLOLIFT
SKU: A-3007
MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING
- Special chain steering system.
- Integrate panel design.
- Foot pedal brake for safety and ramp usage.

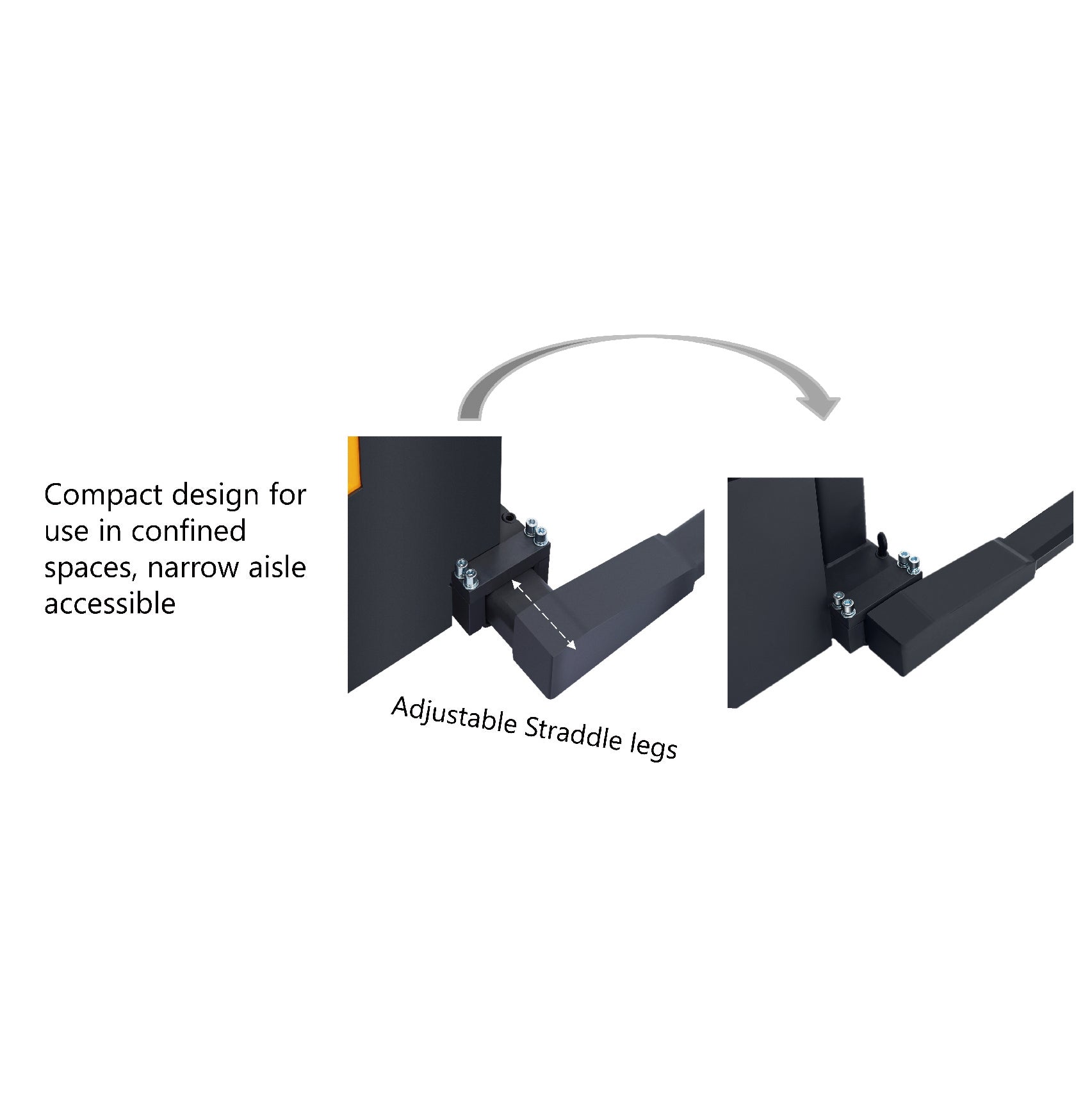

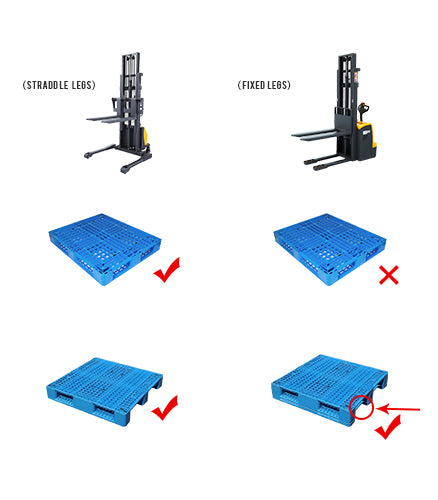

- Adjustable forks and straddle legs.
*SEMI-ELECTRIC STACKERS
| MODEL NO. | LOAD CAPACITY | LEGS TYPE | BATTERY CAPACITY | LIFTING HEIGHT | HEIGHT LOWERED | WT (LBS) | PRICE EACH |
| A-3006 | 2,200 lbs | Straddle | 12V/120AH | 63'' | 3.5'' | 924 | $3,250 |
| A-3007 | 2,200 lbs | Straddle | 12V/120AH | 98'' | 3.5'' | 1045 | $3,550 |
| A-3008 | 2,200 lbs | Straddle | 12V/120AH | 118'' | 3.5'' | 1078 | $3,770 |
| A-3013 | 2,200 lbs | Fixed | 12V/120AH | 63'' | 3.5'' | 848 | $3,080 |
| A-3014 | 2,200 lbs | Fixed | 12V/120AH | 98'' | 3.5'' | 902 | $3,290 |
| A-3015 | 2,200 lbs | Fixed | 12V/120AH | 118'' | 3.5'' | 1045 | $3,390 |
*REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | PRICE EACH | 2 PCS Price |
| S-1004 | lead-acid | 12V/120AH | 99 | $580 | $1,120 |

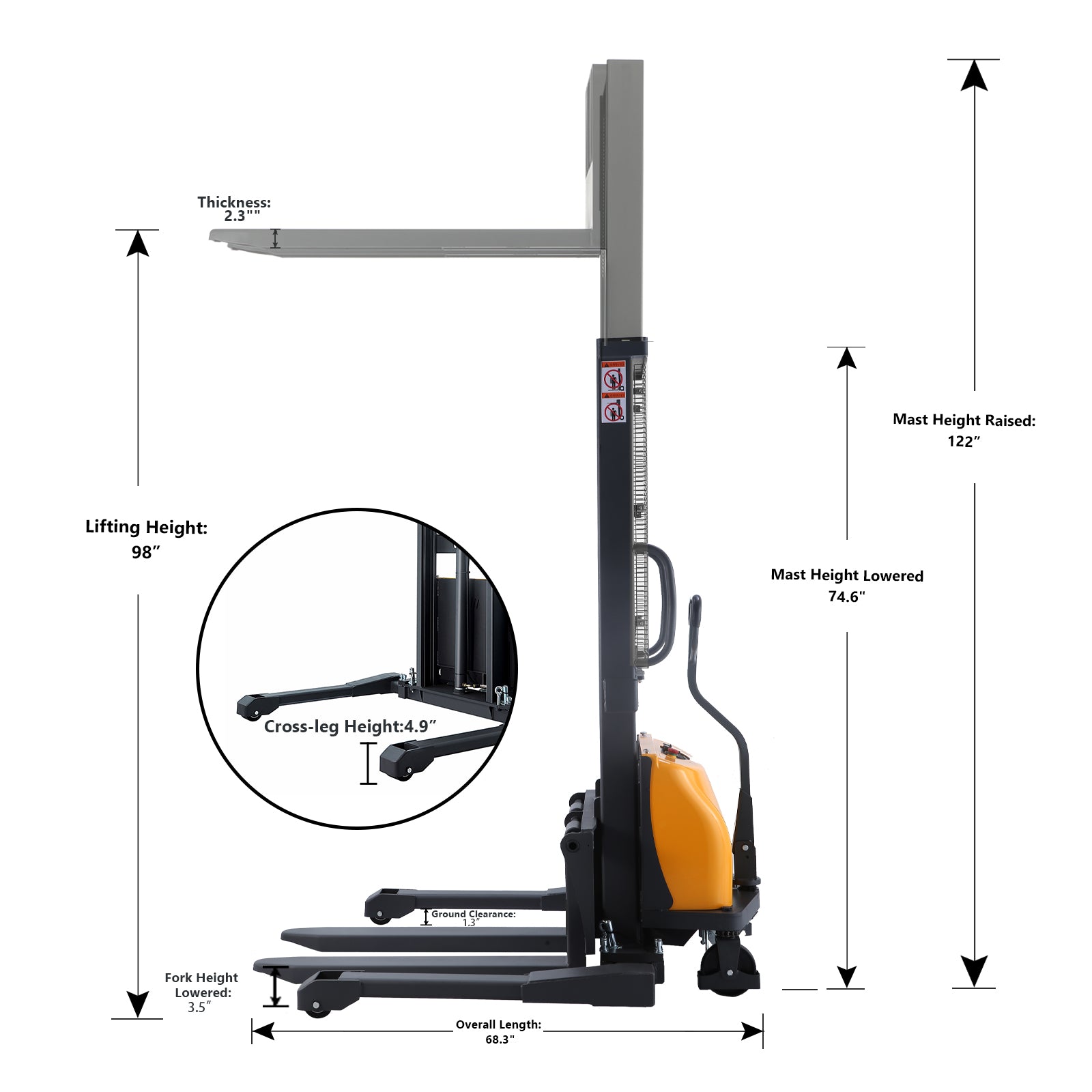

DIMENSIONS:
- Overall Length：68.3"
- Overall Width：44.5"-60.3''
- Recommended Aisle Width：89.2"
- Turning Radius：56.1"
- Mast Height Lowered：74.6"
- Mast Height Raised：122''
- Load Center：19.7"
- Wheel Diameter：7''/3.15''

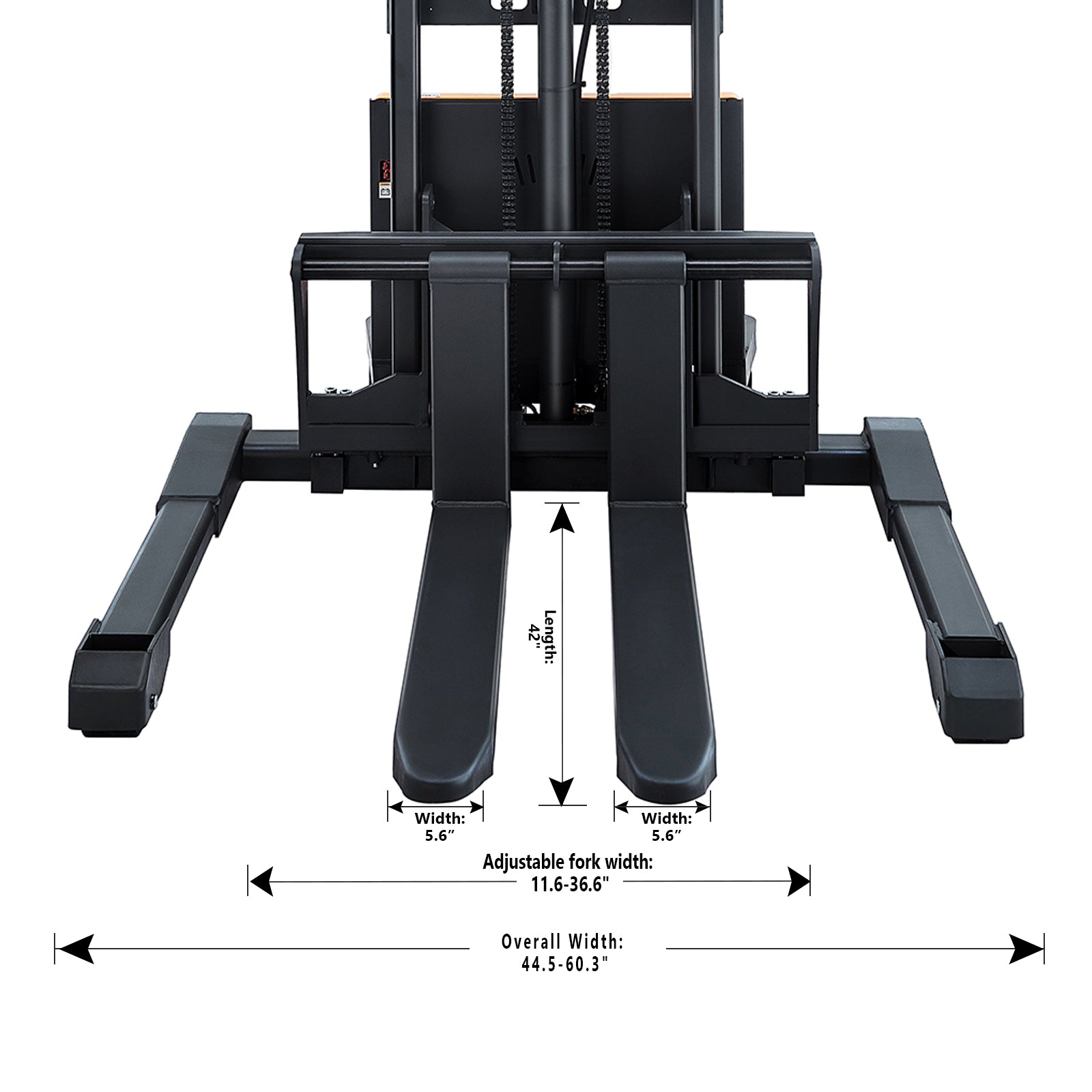

FORKS:
- Thickness：2.3''
- Width：5.6''
- Length：42''
- Adjustable fork width：11.6-36.6''
- Leg inner width：14.5''
- Leg outer width：22.4''
SPEED:
- Lifting speed(laden/unladen)：2.7/3.9mph
- Lowering speed(laden/unladen)：5.9/4.7mph

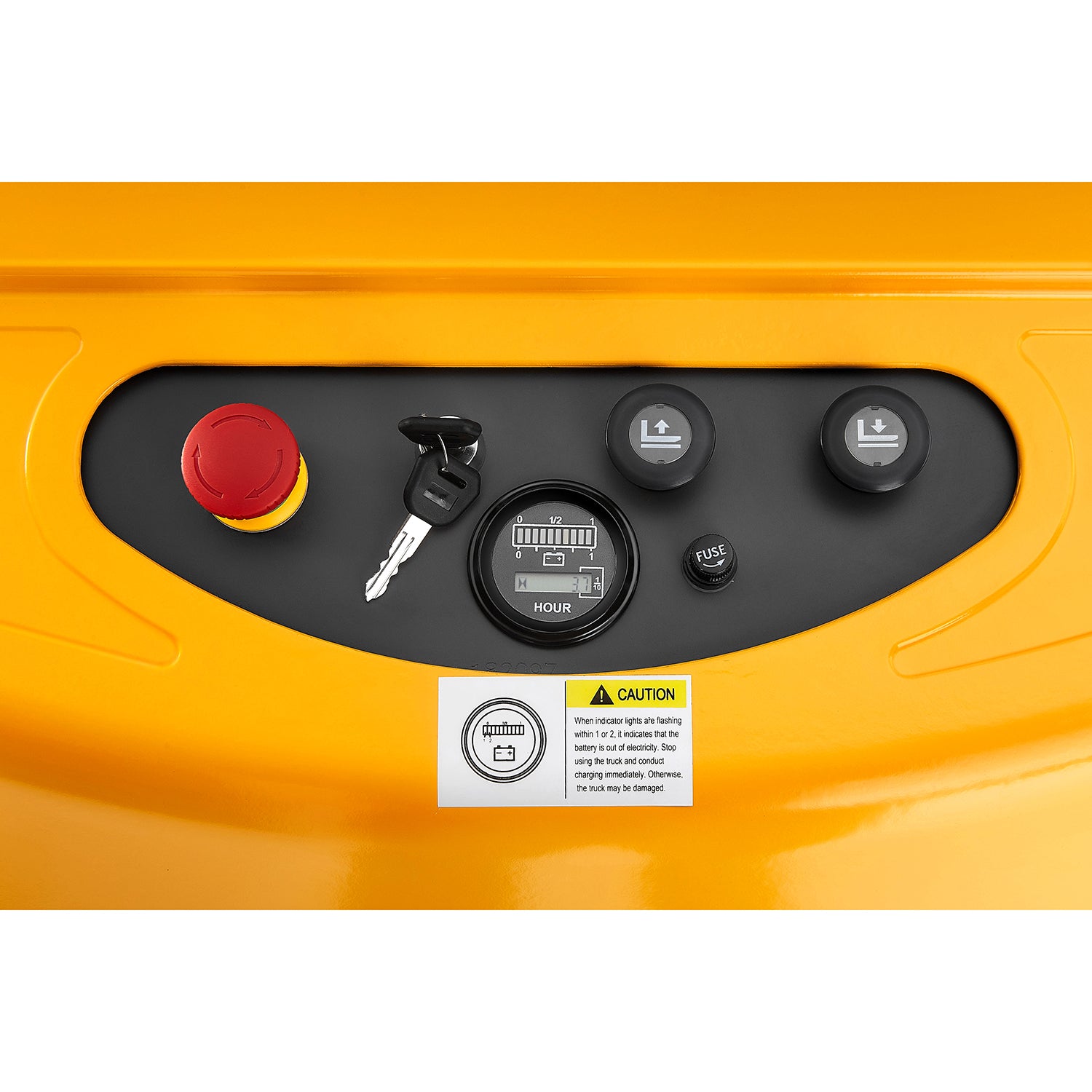

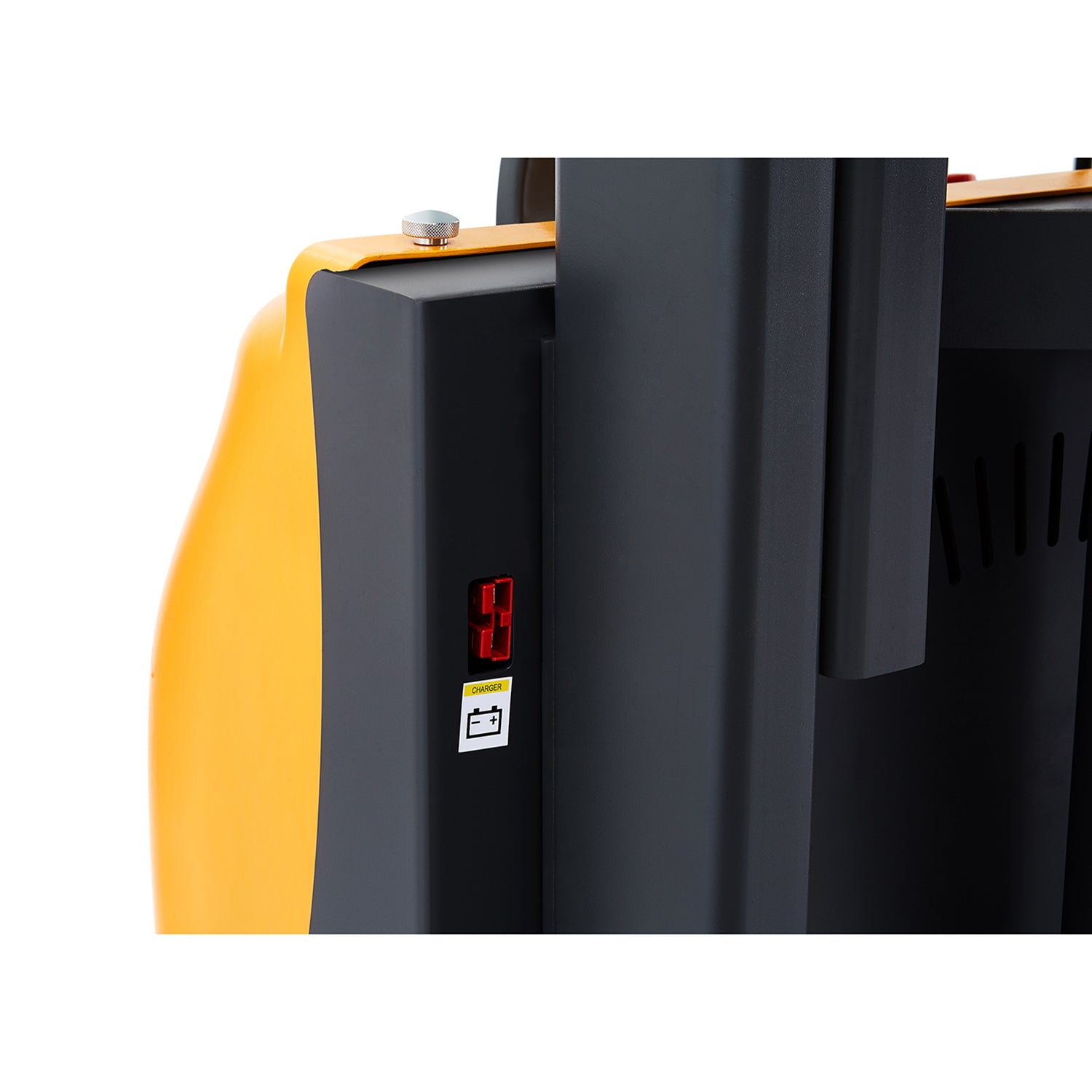

BDI:
- Multi-function battery display indicator.
- Red：the battery is less than 20% and need to be charged, the truck can walk only, not lift.
- Yellow：the battery is around 50%.
- Green：the battery is full.
SPECIFICATIONS:
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Temperature range of working environment below 50˚F~104˚F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
- Time to fully charge battery: 8 - 10 hrs.
Click Here :A-3007 Detail Page
Click Here :Assemble the welded fork.
1 YEAR
Parts covered.
Excludes: Wheels, axles & bushings
1 YEAR PLUS:
Contact Apollolift for assistance locating repair facilities.
Customer responsible for all charges.
