1 5
99.6"
99.6"
Aisle Width
24V/200AH
24V/200AH
Battery
3300 lbs.
3300 lbs.
Capacity
118"
118"
Max Lift Ht.
APOLLOLIFT  |  SKU: A-3028

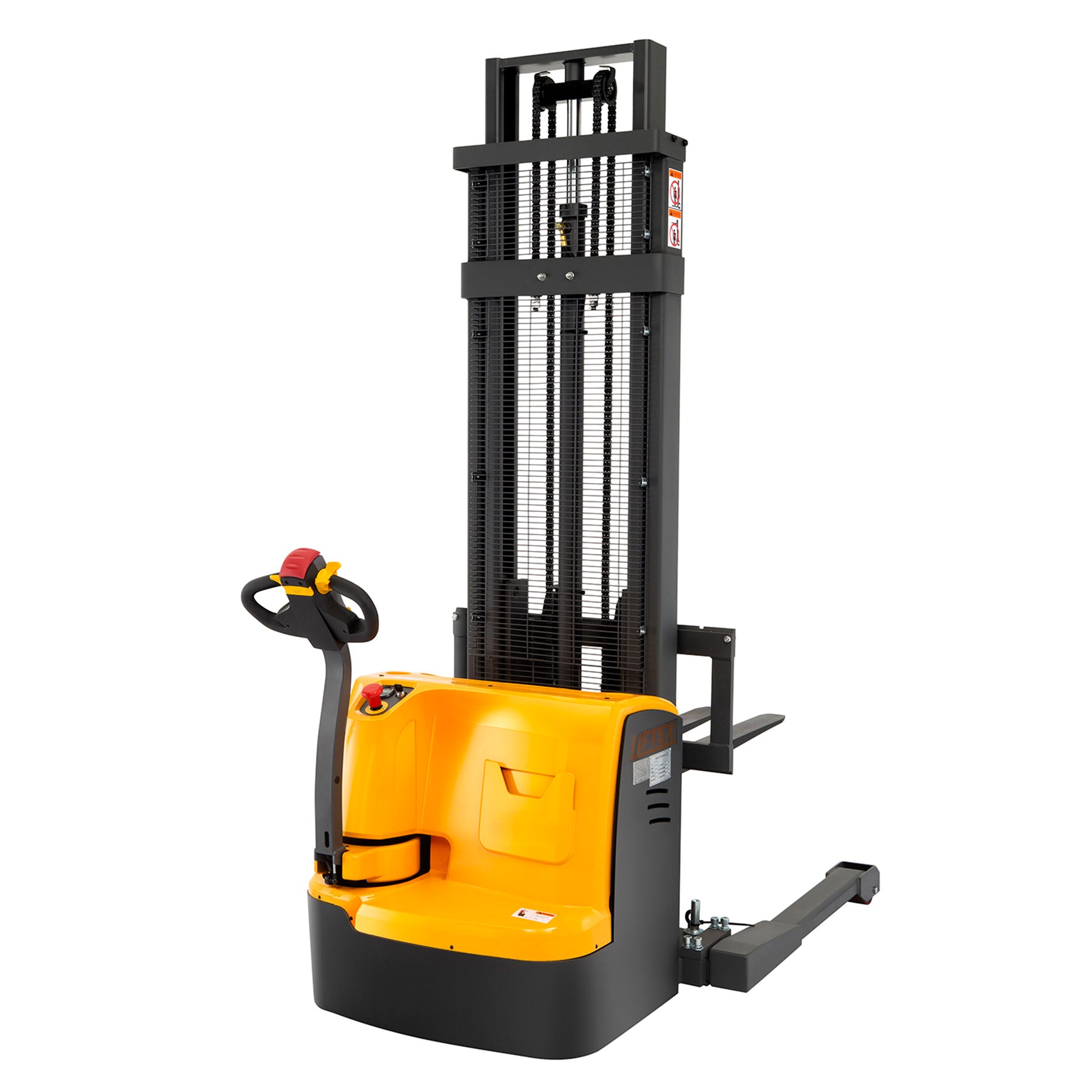

Electric Walkie Straddle Stacker| 3300 lbs. | 98" or 177" or 220" Lifting Height| 24V/200AH

$7,997.00
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Built for high-throughput operations: Bigger power package for warehouses that run the stacker hard every day (battery spec 24V/200Ah).

Heavy-duty capacity for serious pallets: A real workhorse for heavy loads (capacity 3300 lbs).

Standard lift height for most racks: Great reach without tall-mast constraints (max lift height 118", mast lowered height 84.4").

Faster travel for bigger facilities: Better productivity when moves are longer (driving speed 3.6–3.7 mph).

Built-out charging for heavy use: Designed around stronger charging hardware (charger 24V/30A built-out).

Wider aisle requirement, heavier-duty feel: More “industrial” platform compared to compact units (aisle width 99.6").

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    99.6"
  • Max.Lifting Height
    118"
  • Inside Distance Between Forks
    0.1-23.6"
  • Fork Length
    42"
  • Fork Overall Width
    7.9-31.5"
  • Single Fork Width
    3.9"
  • Overall Height
    84.4-143.5"
  • Overall Length
    79.5"
  • Overall Width
    46.9-62.3"
  • Driving Speed-Unladen
    3.7 mph
  • Driving Speed-Laden
    3.6 mph
  • Lifting Speed/Empty
    6.3 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Gradeability/Empty
    6 %
  • Gradeability/Loaded
    15 %
  • Support Leg Type
    Straddle
  • Turning Radius
    65.2"
  • Mast Lowered Height
    84.4"
  • Mast Extended Height
    143.5"
  • Load Centre Distance
    23.6"
  • Battery Capacity
    200AH
  • Battery Spec
    24V/200AH
  • Battery Voltage
    24V
  • Fork Thickness
    1.4"
  • Fork Lowered Height
    2.8"
  • Lowering Speed/Empty
    6.3 inch/s
  • Lowering Speed/Loaded
    5.9 inch/s
  • Service Weight
    2161 lbs.
  • Gross Weight
    2183 lbs.
  • Charger
    24V/30A built-out
  • Package Size
    80"x33"x85"

Links

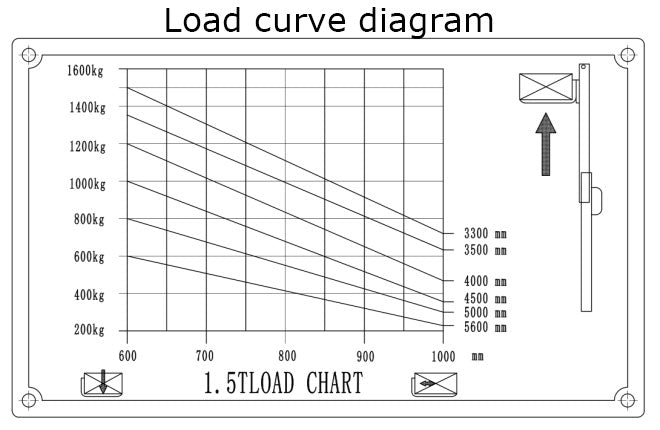

Load curve diagram
Load curve diagram

⚠️ Notice:

  • Support legs require installation before use. Installation Video: https://youtu.be/zBQyIxQ0JSM
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product Comparison

Electric Walkie Straddle Stacker| 3300 lbs. | 98" or 177" or 220" Lifting Height| 24V/200AH
Electric Walkie Straddle Stacker| 3300 lbs. | 98" or 177" or 220" Lifting Height| 24V/200AH
Electric Walkie Straddle Stacker| 3300 lbs. | 98" or 177" or 220" Lifting Height| 24V/200AH
Max.Lifting Height
Max.Lifting Height
118"
220"
177"
Support Leg Type
Support Leg Type
Straddle
Straddle
Straddle
Capacity
Capacity
3300 lbs.
Single Fork Width
Single Fork Width
3.9"
3.9"
3.9"
Charger
Charger
24V/30A built-out
24V/30A built-out
24V/30A built-out
Mast Lowered Height
Mast Lowered Height
84.4"

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
