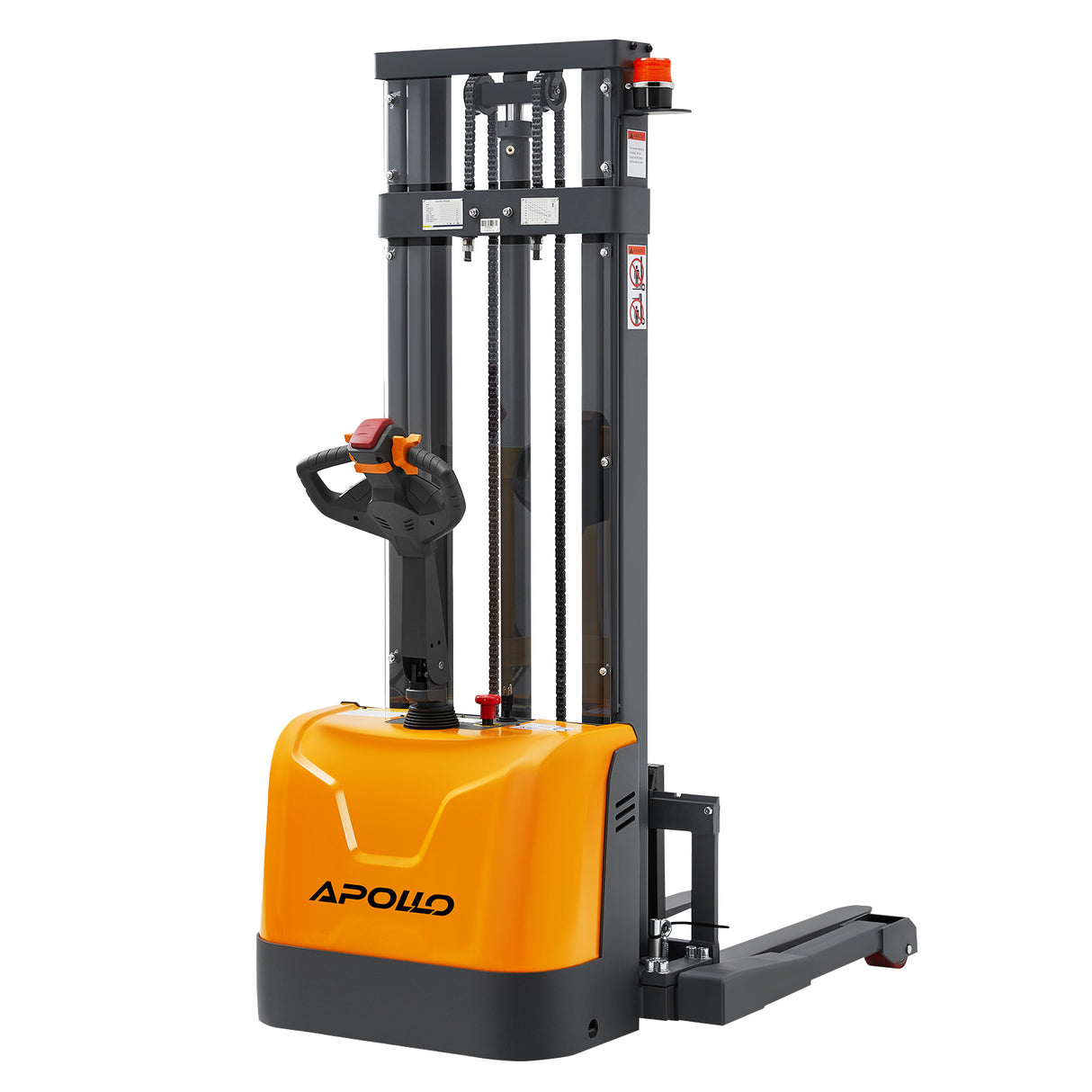

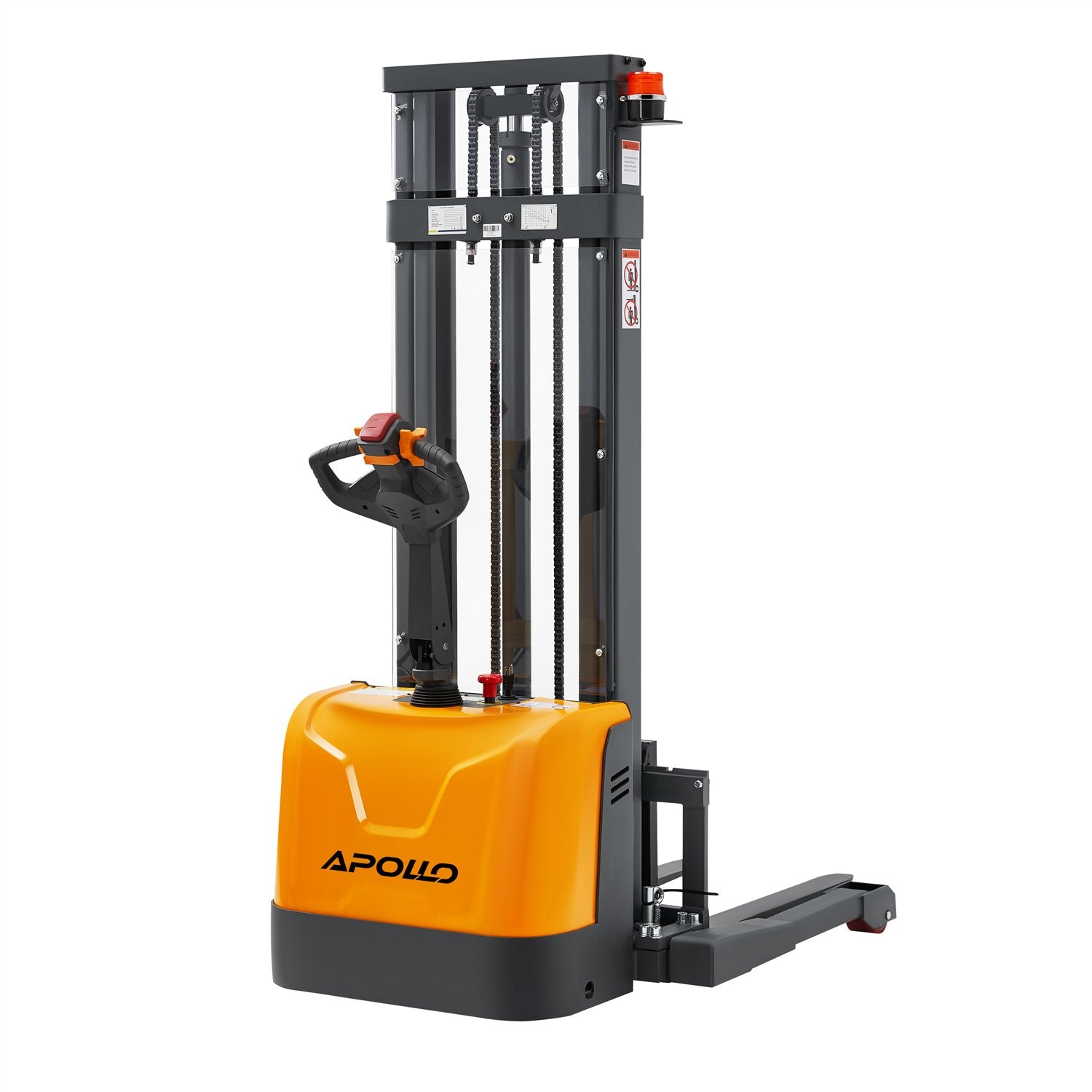

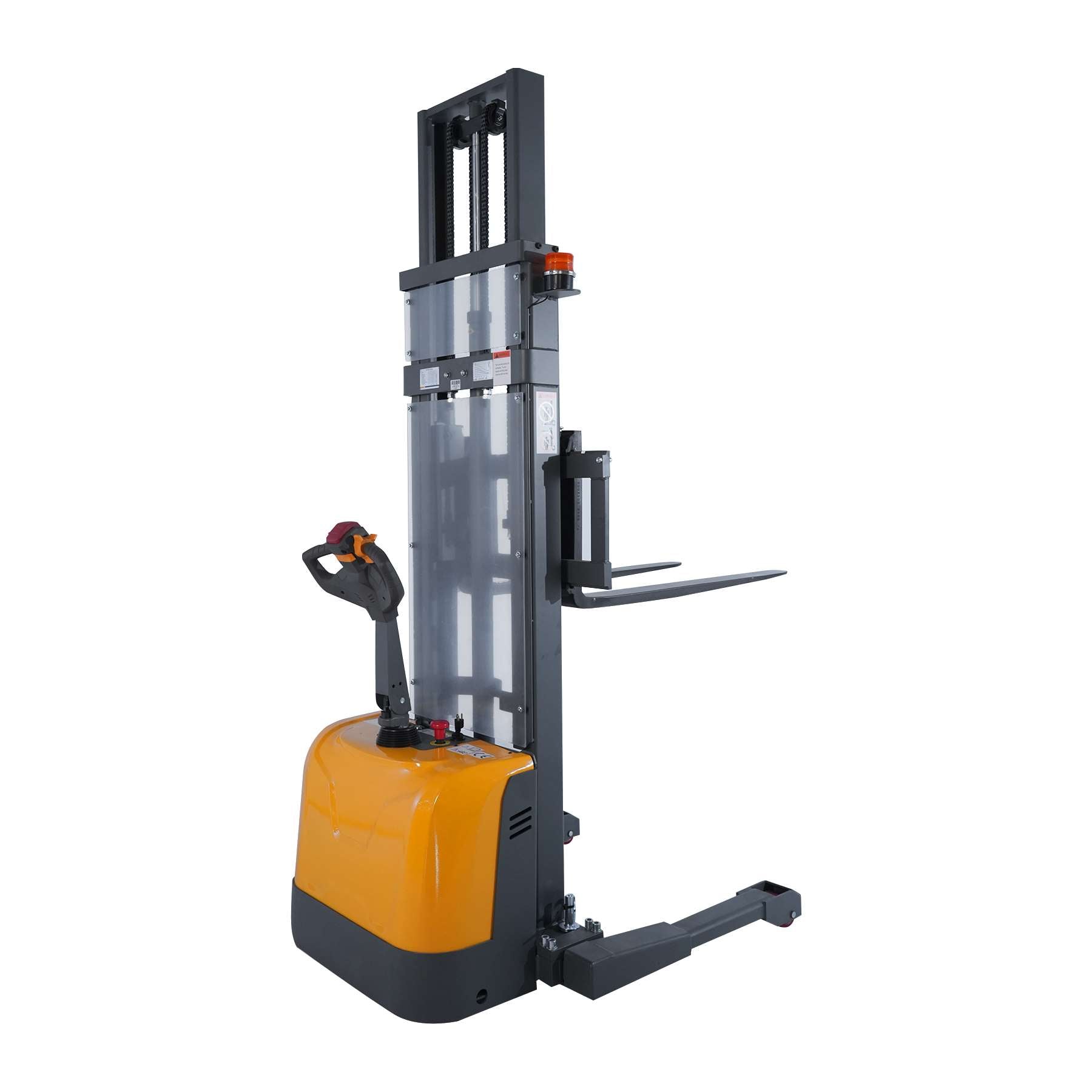

APOLLOLIFT  |  SKU: A-3049

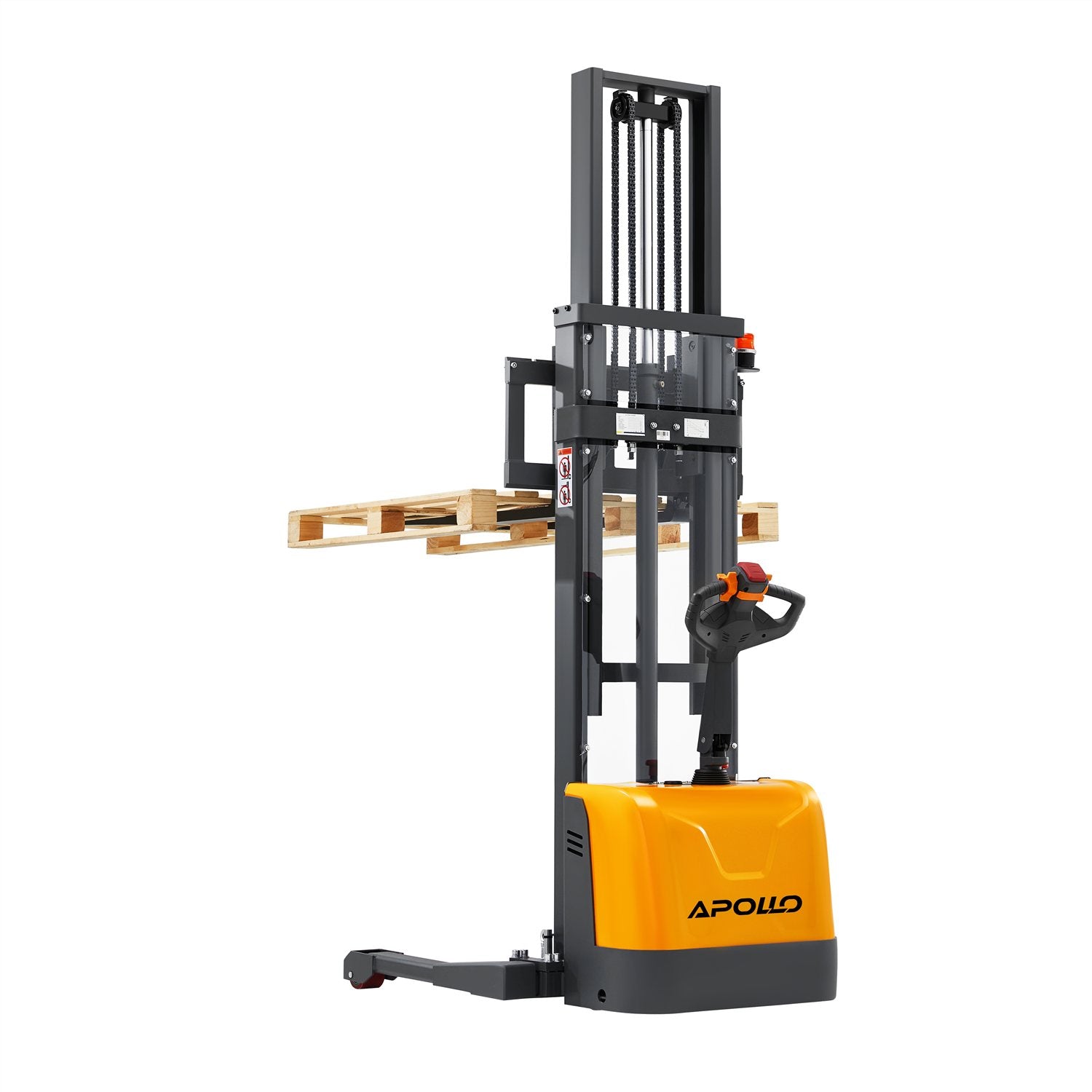

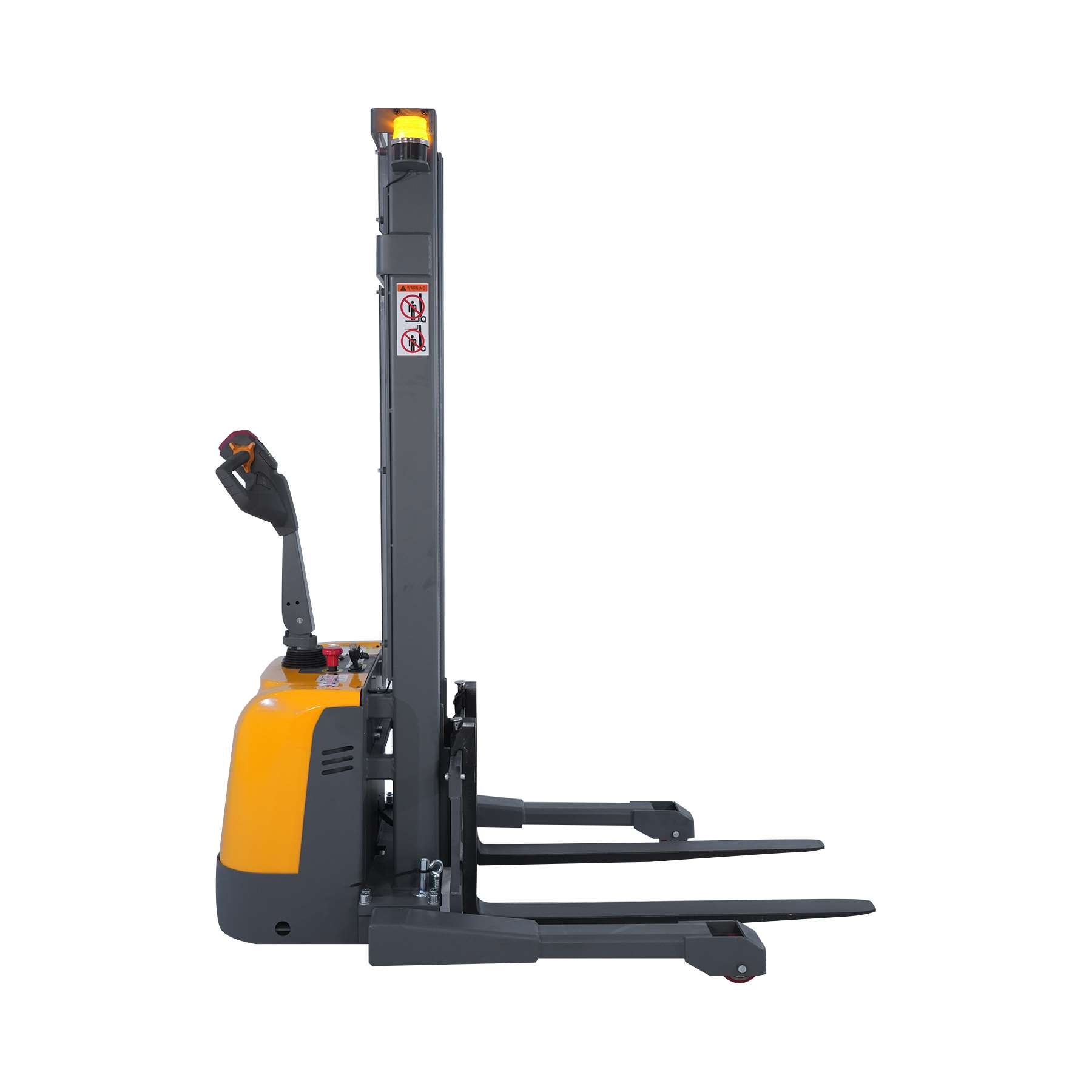

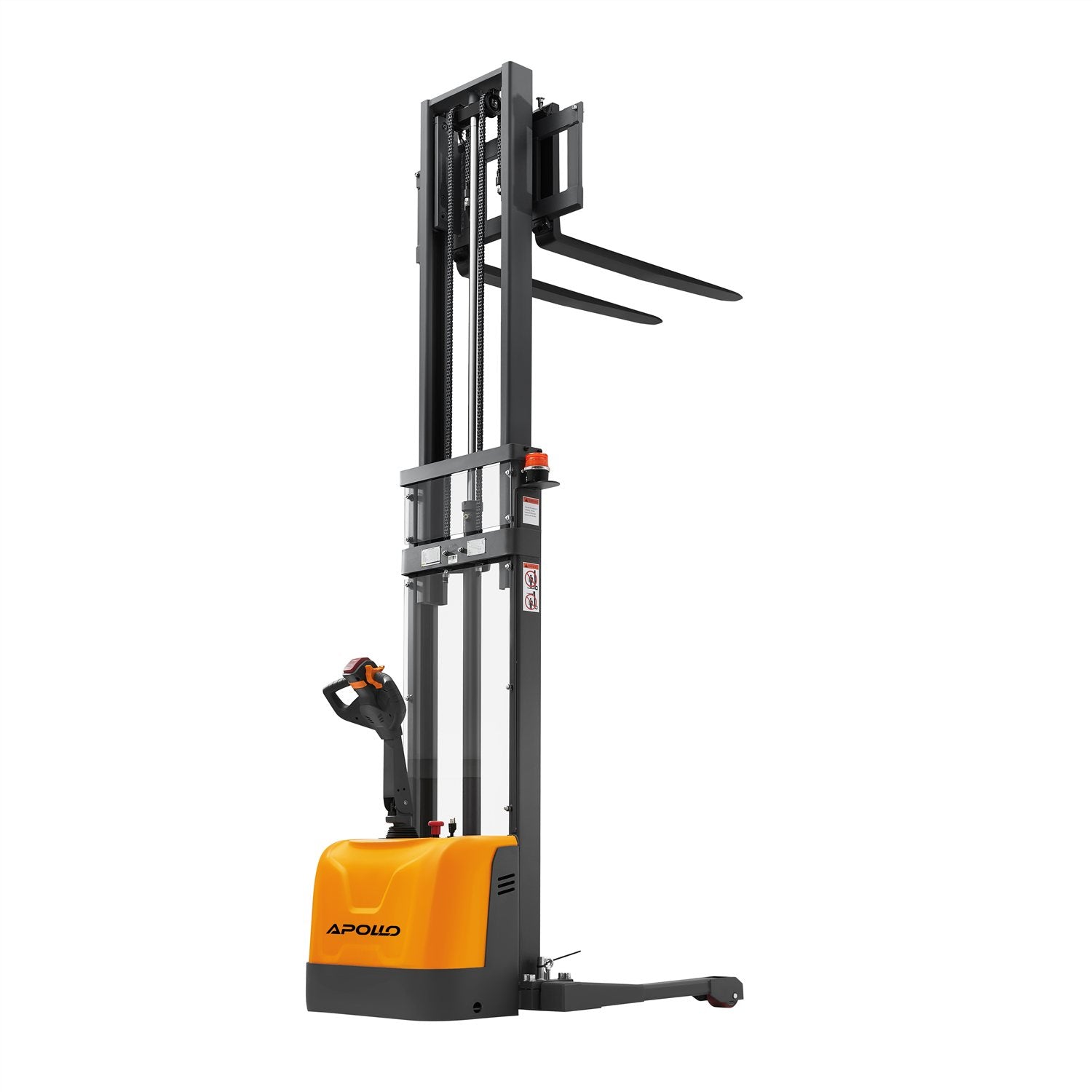

Full Electric Straddle Stacker

$5,700.00 $5,800.00
  • Capacity: 3300 lbs.
  • Max.Lifting Height: 98" or 118" or 130" or 138"
  • Battery Spec: 24V/100AH
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Step-up height for taller racks: The upgrade when 118" is just not enough (max lift height 130").

Heavy capacity for real loads: Built for demanding pallets (capacity 3300 lbs).

GEL battery preference covered: A practical choice for customers who prefer GEL (battery type Gel, battery spec 24V/100Ah).

Straddle design for pallet compatibility: Closed-deck-safe default for mixed pallets (support leg type Straddle).

Aisle-friendly footprint: Works in standard lanes and staging zones (aisle width 87.8").

Clearance check made easy: Helps you confirm fit before buying (mast lowered height 90.4").

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    87.8"
  • Max.Lifting Height
    130"

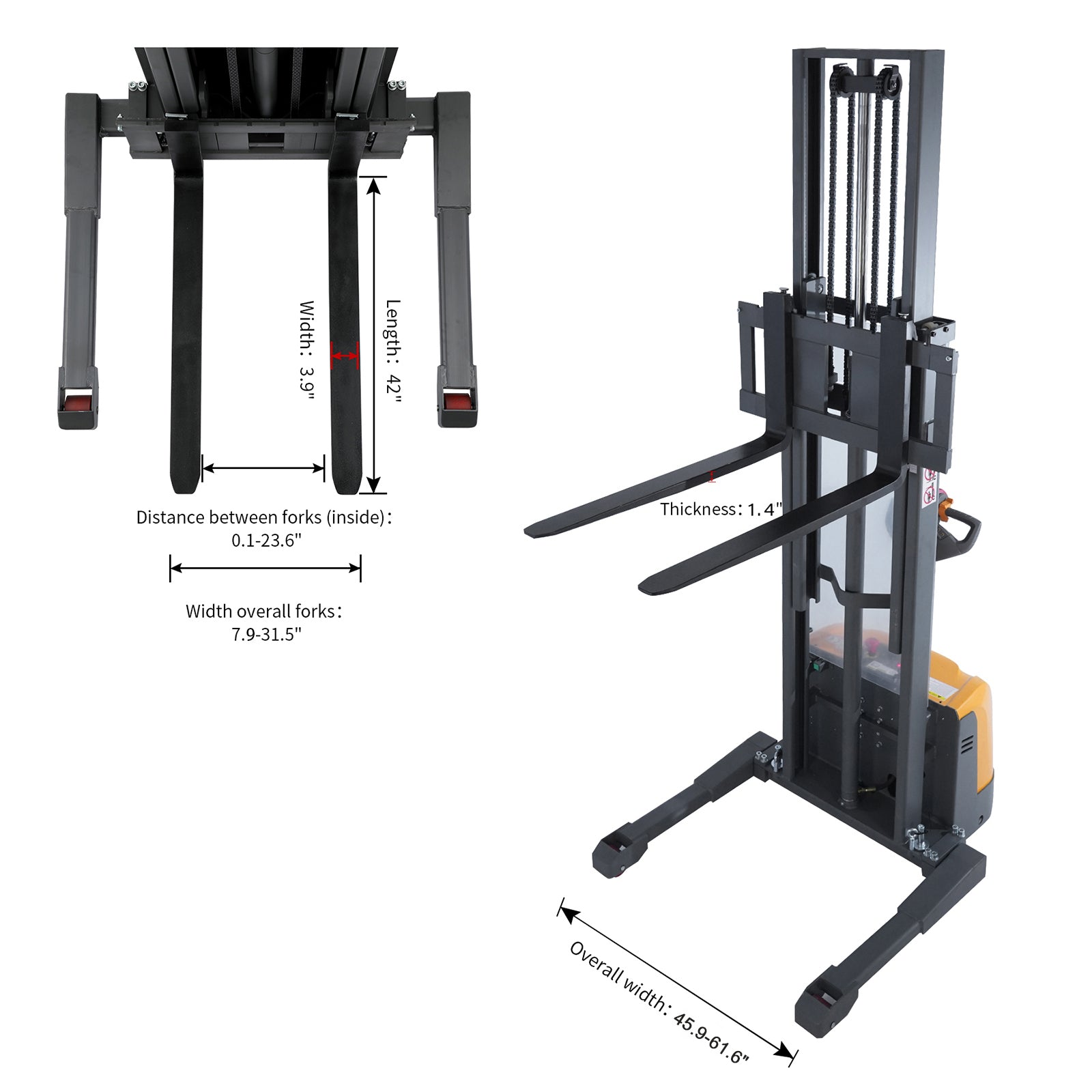

  • Inside Distance Between Forks
    0.1-23.6 in
  • Fork Length
    42"
  • Fork Overall Width
    7.9-31.5"
  • Single Fork Width
    3.9"
  • Overall Length
    68.9"
  • Driving Speed-Unladen
    3.1 mph
  • Driving Speed-Laden
    2.8 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Support Leg Type
    Straddle
  • Turning Radius
    53.0"
  • Mast Lowered Height
    90.4"
  • Mast Extended Height
    157.3 in
  • Load Centre Distance
    23.6"
  • Battery Capacity
    100AH
  • Battery Spec
    24V/100AH
  • Battery Voltage
    24V
  • Battery Type
    Gel Battery
  • Fork Thickness
    1.4"
  • Fork Lowered Height
    2.8"
  • Lowering Speed/Empty
    4.3 inch/s
  • Lowering Speed/Loaded
    5.9 inch/s
  • Service Weight
    1450 lbs.
  • Gross Weight
    1490 lbs.
  • Charger
    24V/10A built-in
  • Charging Time
    8-10 Hours
  • Continuous Working Time
    6-8 Hours
  • Package Size
    44x34x93"

Links

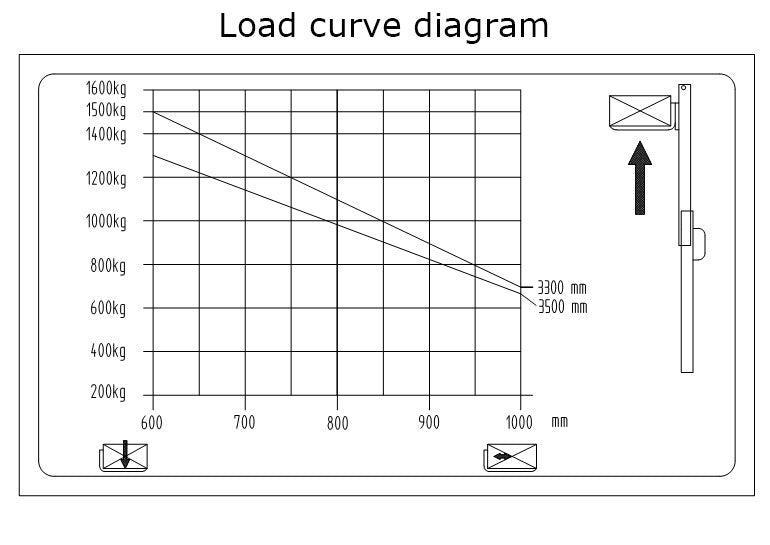

Load curve diagram
Load curve diagram

⚠️ Notice:

  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product Comparison

Full Electric Straddle Stacker
Full Electric Straddle Stacker
Max.Lifting Height
Max.Lifting Height
130"
118"
Support Leg Type
Support Leg Type
Straddle
Straddle
Mast Lowered Height
Mast Lowered Height
74.6"
74.6"

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
