THE BEST CHOICE FOR NARROW SITE

• 650-watt drive motor, 2,200-watt lift motor.
• Curtis (US Brand) Controller.
• Use GEL battery free to maintain.
• Fixed forks suits for EU type pallet.

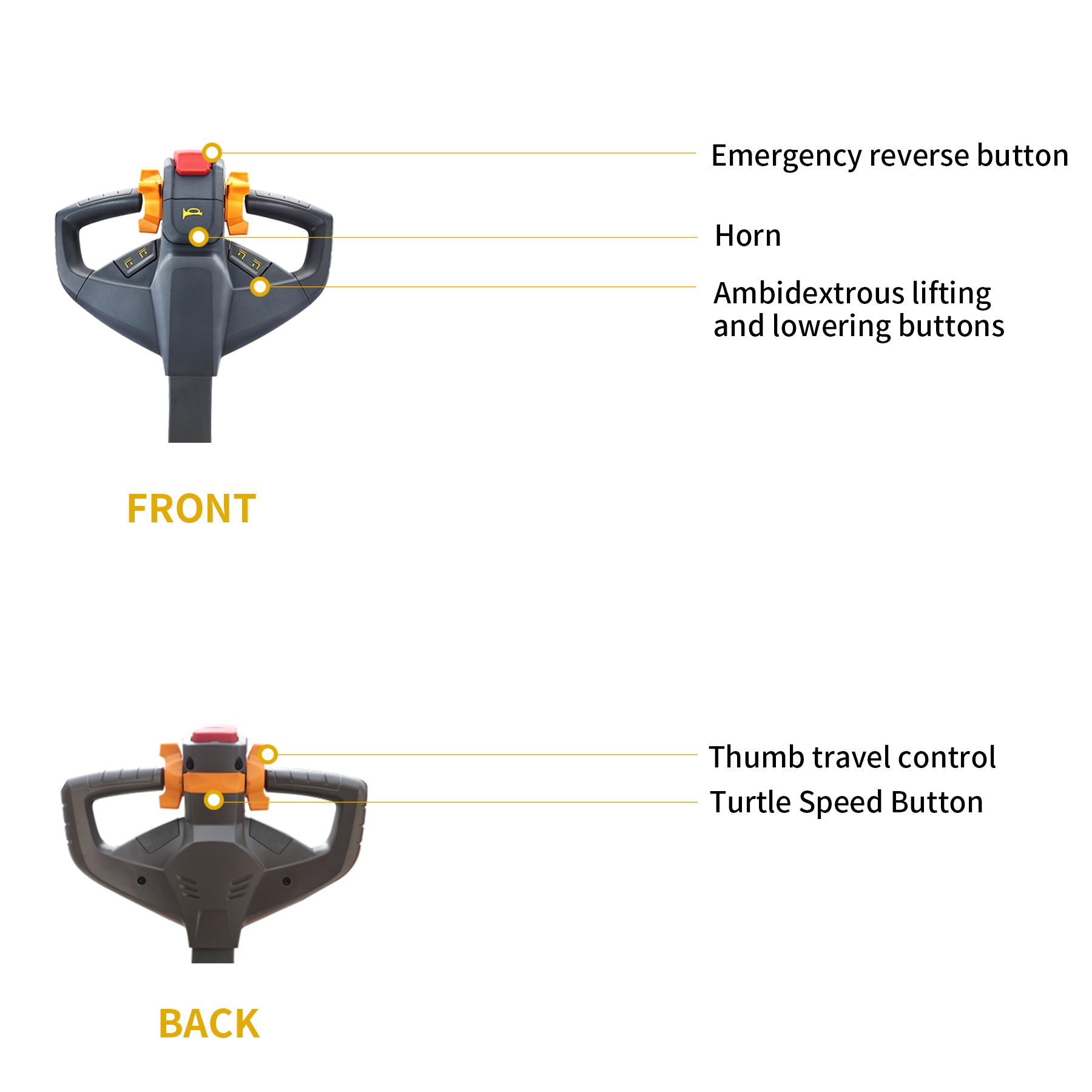

• Both sides of button for lifting and lowering operation.
• Red dot and IF design award winner
•

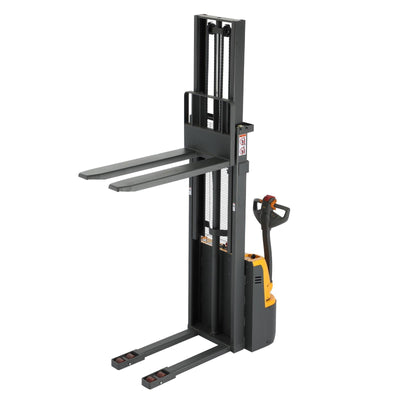

*FULLY POWERED STACKER

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*REPLACEMENT PARTS

DIMENSIONS:

• Overall Length：68.8"
• Overall Width: 31.5''
• Recommended Aisle Width：87.3"
• Turning Radius: 53.7"
• Mast Height Lowered:82.2''
• Mast Height Raised: 140.1''
• Load Center: 23.6"

FORKS:

• Fork height, Lowered: 3.5''
• Thickness: 2.3''
• Width: 6.7''
• Length: 45''

FEATURES:

• Smooth rolling polyurethane wheels.180° steering arc.
• 110V Built-in Charger.
• 6 hours service per charge: two 12-volt, 125 Ah rechargeable GEL batteries.

SPEED:

• Travel speed(laden/unladen) : 2.8/3.1mph
• Lifting speed(laden/unladen) : 4.3/5.5inch/s
• Lowering speed(laden/unladen) : 4.7/3.9inch/s

SPECIFICATIONS:

• Not explosion proof.
• This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Temperature range of working environment below 50˚F~104˚F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the forklift once a month even it's not in use.
