1 10
24V/125AH
24V/125AH
Battery
3300 lbs.
3300 lbs.
Capacity
DC Motor
DC Motor
Control System
118"
118"
Max Lift Ht.

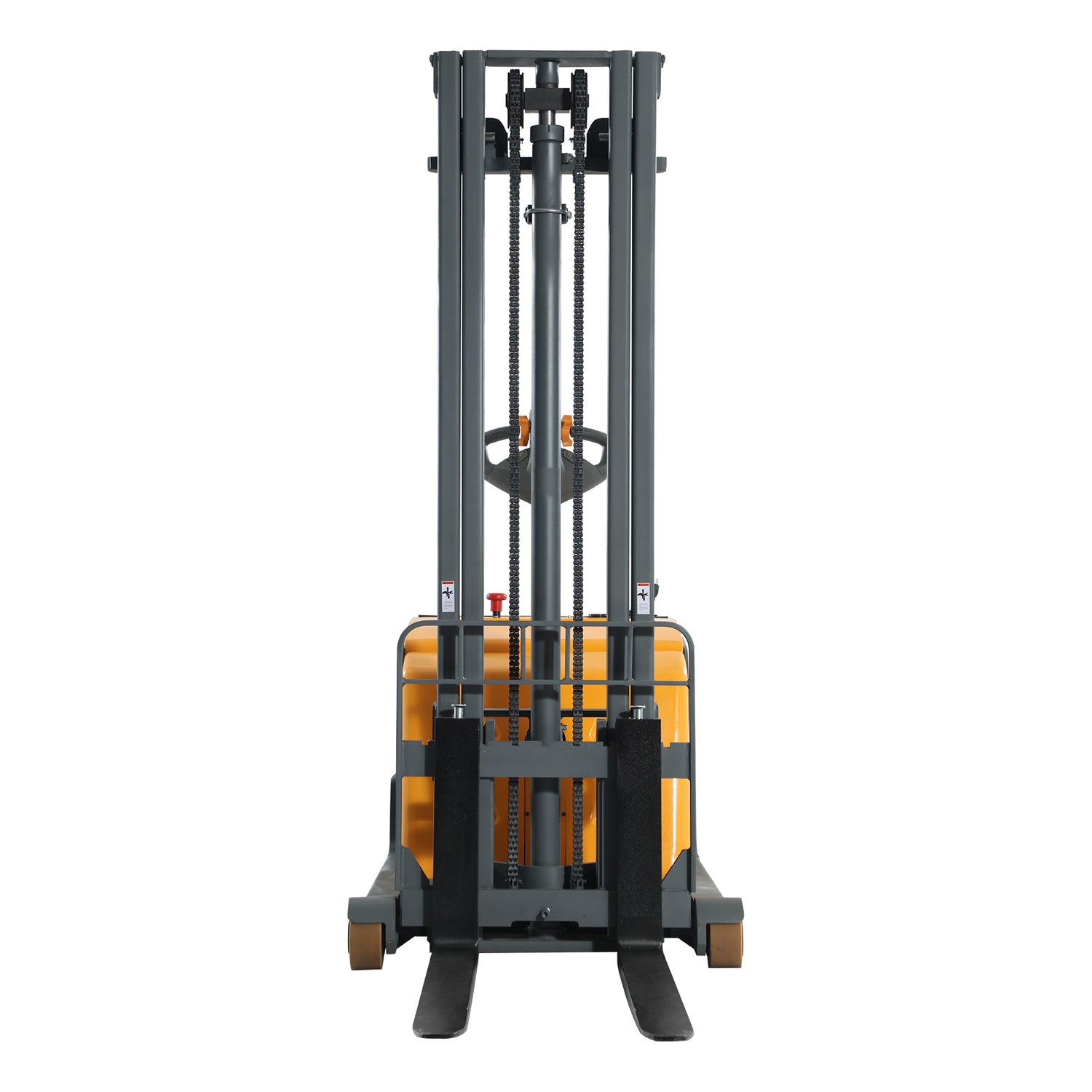

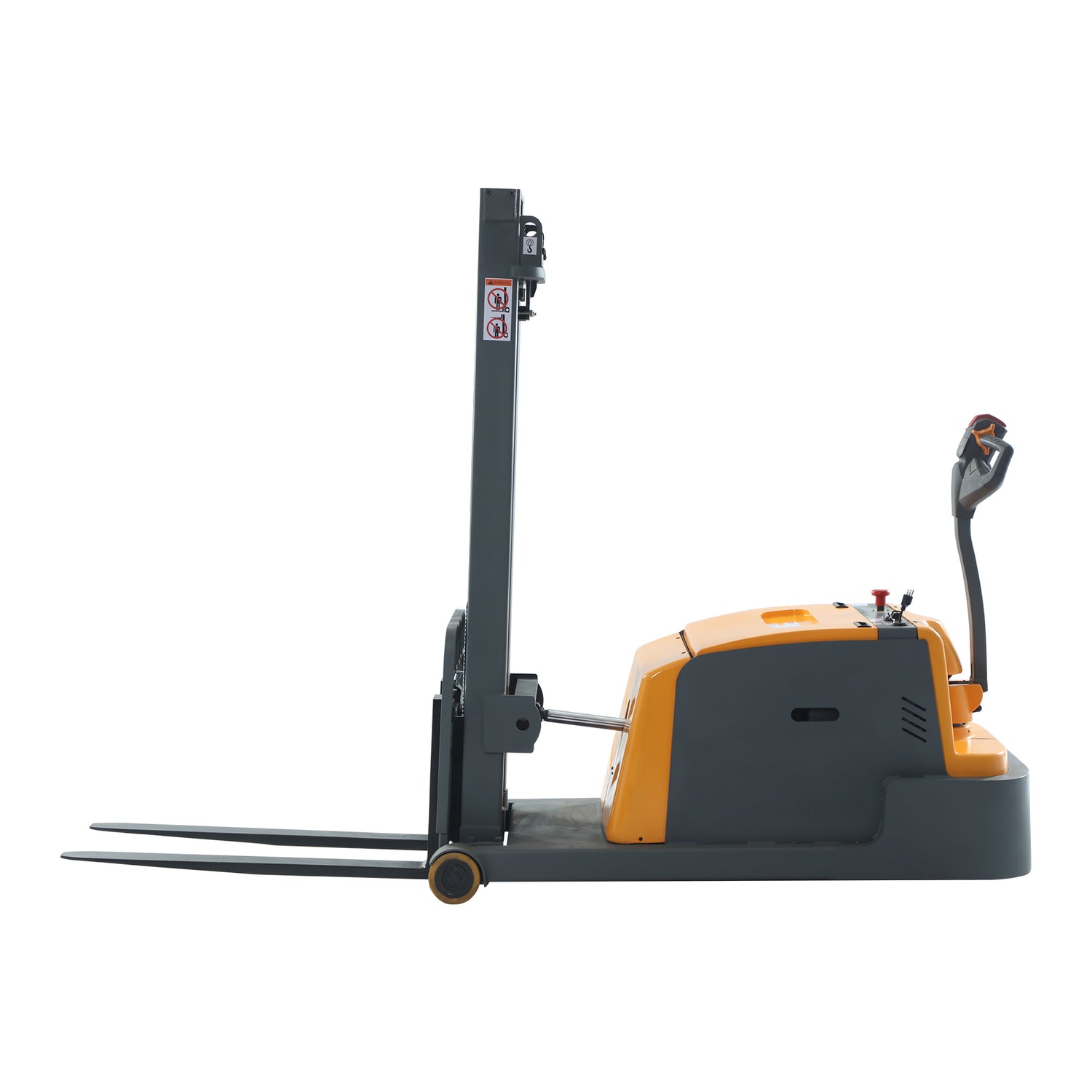

APOLLOLIFT  |  SKU: A-3048

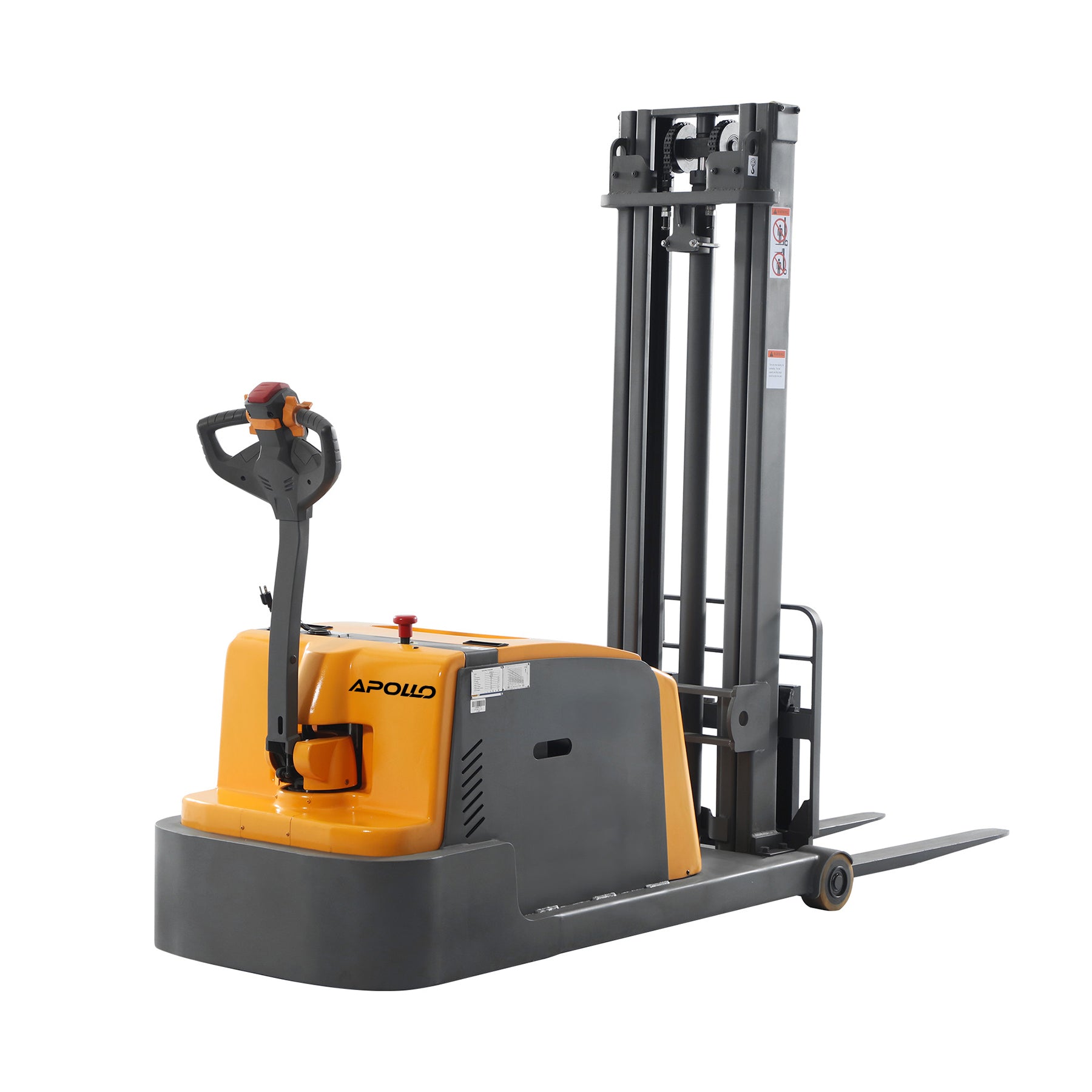

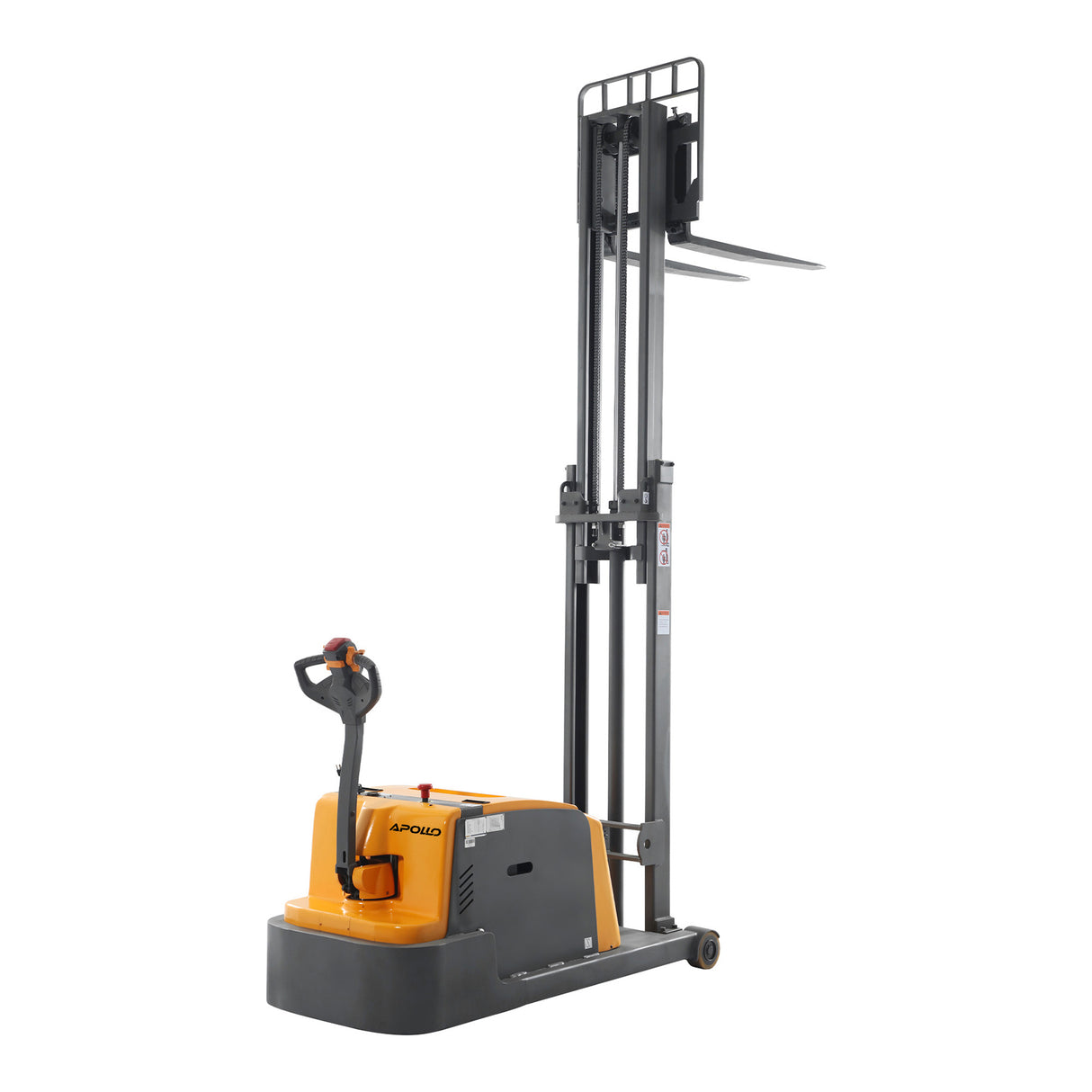

Counterbalanced Electric Stacker| | A-3048

$9,800.00
  • Capacity: 3300 lbs.
  • Max.Lifting Height: 118"
  • Battery Spec: 24V/125AH
  • Battery Type: GEL battery
  • Mast Lowered Height: 81.3"
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Legless Counterbalanced Design for Container Handling

With a legless fork design, tilt system, three-point support, and highly integrated electrics, this truck ensures smooth container loading and reduced downtime on hard, flat floors.

Heavy Capacity Without the Heavy Battery Package: A smart way to get serious lifting strength while keeping cost and complexity down (capacity 3300 lbs, 24V/125Ah GEL).

Reach High Storage Levels for Stacking and Replenishment: Built to place loads at rack height (max lift height 118").

Practical Runtime for Standard Duty Cycles: Designed for typical warehouse shifts and repeated tasks (continuous working time 6–8 hours).

Steady, Straightforward Operation: Predictable DC control for day-to-day heavy handling (DC system, driving speed 2.2–2.5 mph).

Better Value for Heavy-Lift Needs: Ideal when you need 3300-lb capability but don’t require maximum runtime hardware.

Works in Longer Aisles and Open Areas: Best suited where you have room to operate and want capacity over compactness (aisle width 128").

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    128"
  • Max.Lifting Height
    118"

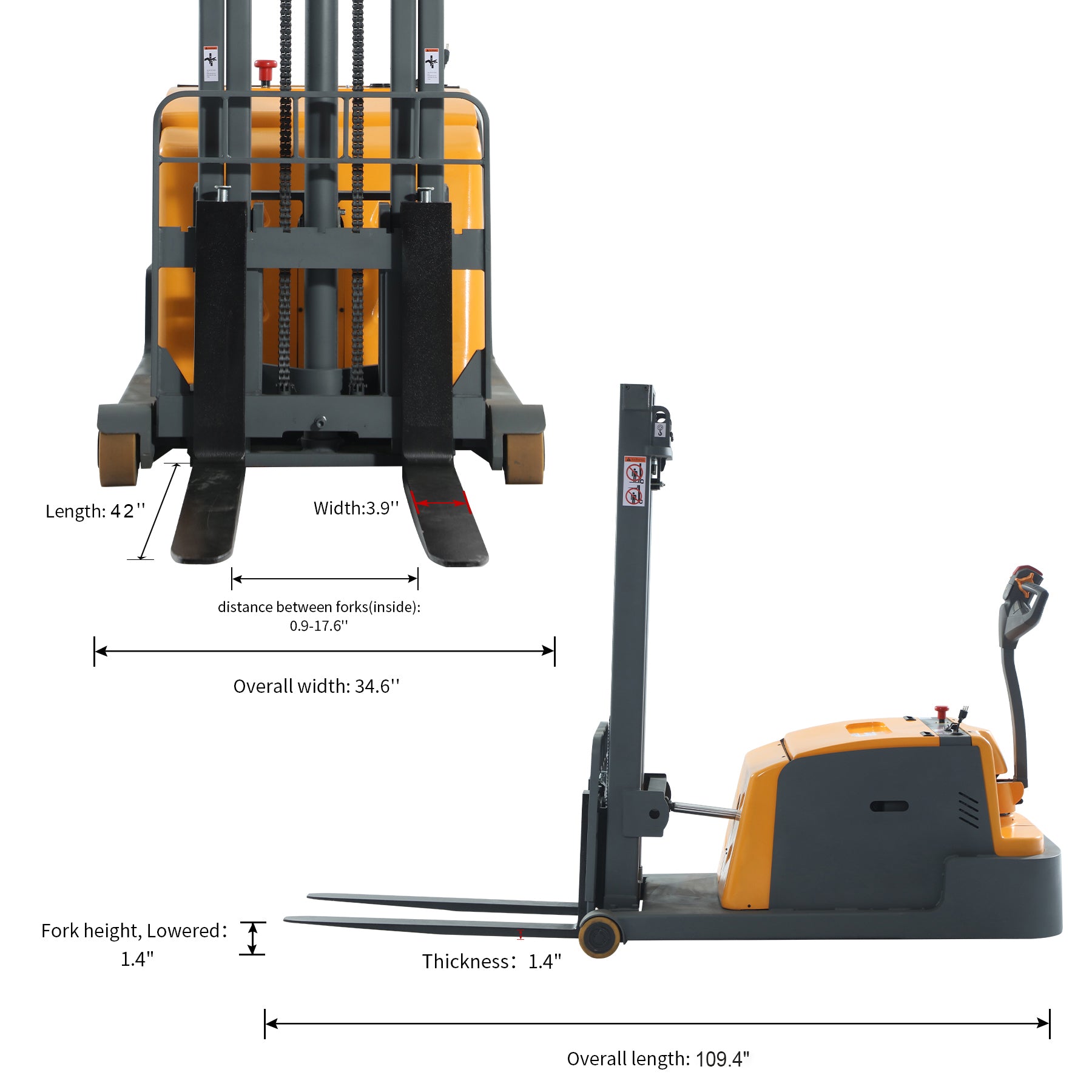

  • Inside Distance Between Forks
    0.9-17.6"
  • Fork Length
    42"
  • Fork Overall Width
    8.7-25.4"
  • Single Fork Width
    3.9"
  • Overall Height
    81.3-146.1"
  • Overall Length
    109.4"
  • Overall Width
    34.6"
  • Driving Speed-Unladen
    2.5 mph
  • Driving Speed-Laden
    2.2 mph
  • Lifting Speed/Empty
    4.7 inch/s
  • Lifting Speed/Loaded
    3.2 inch/s
  • Gradeability/Empty
    5 %
  • Gradeability/Loaded
    10 %
  • Total Wheel Count
    5
  • Turning Radius
    66.9"

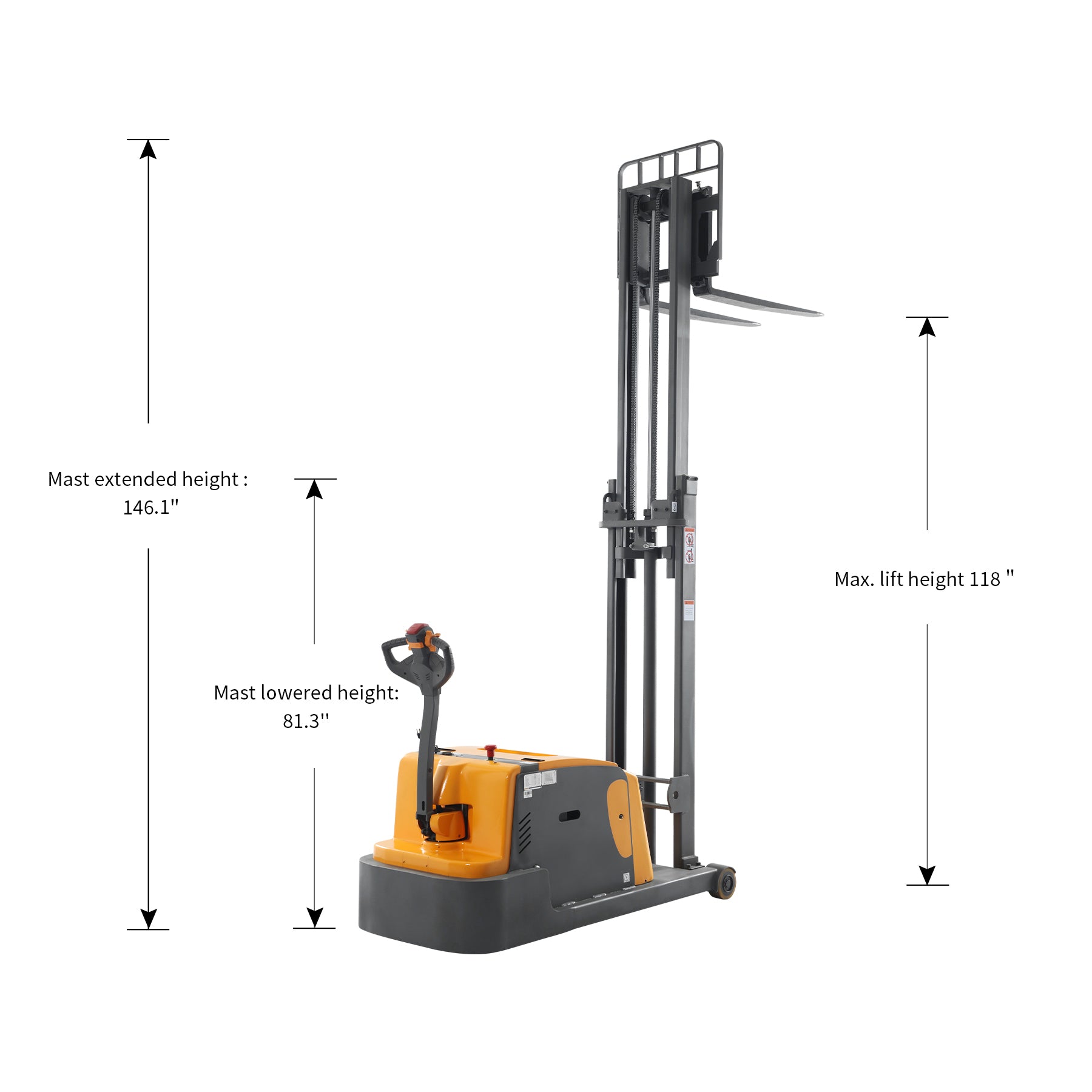

  • Mast Lowered Height
    81.3"
  • Mast Extended Height
    146.1"

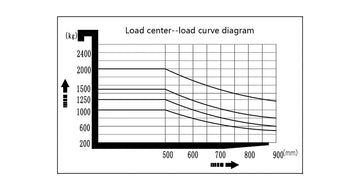

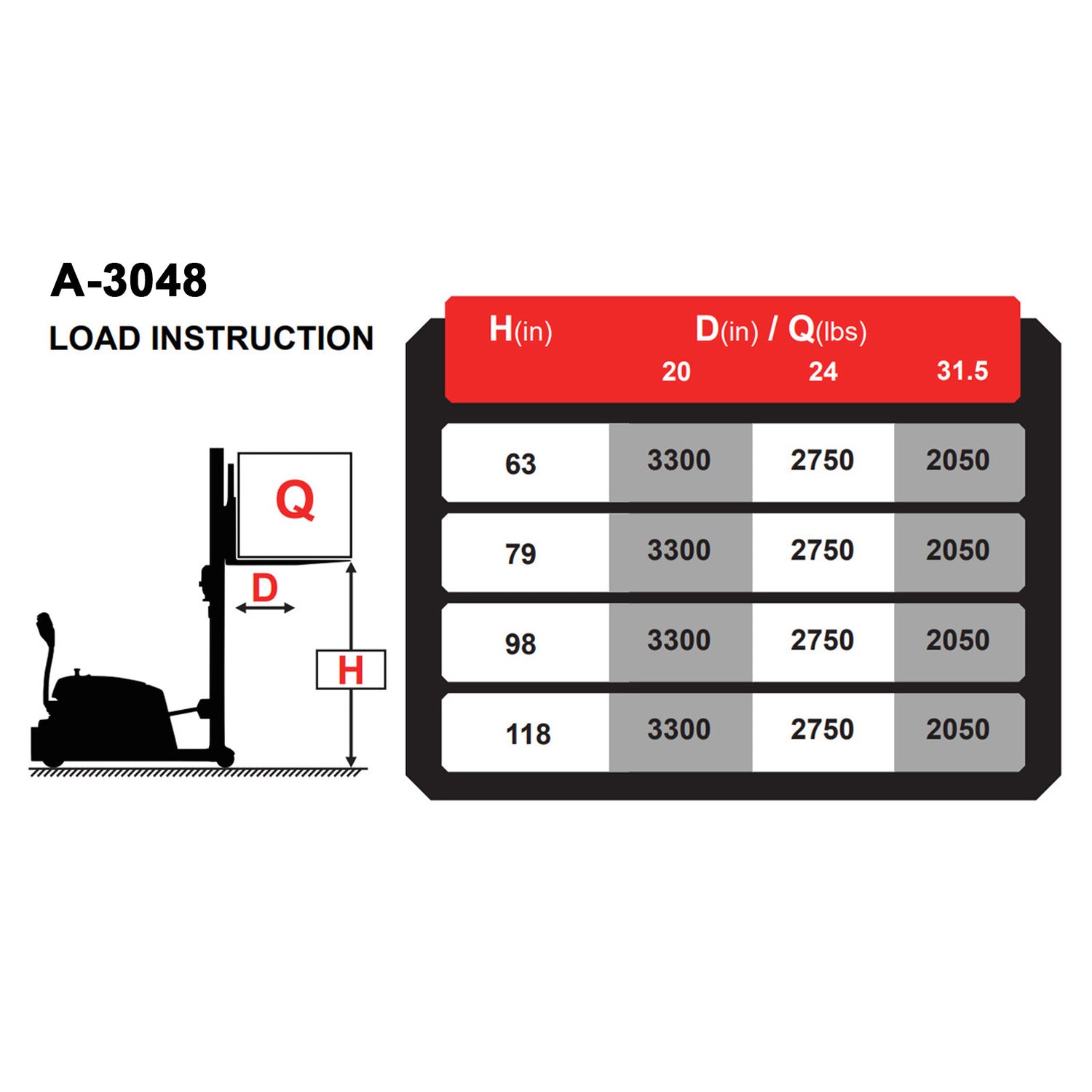

  • Load Centre Distance
    19.7"

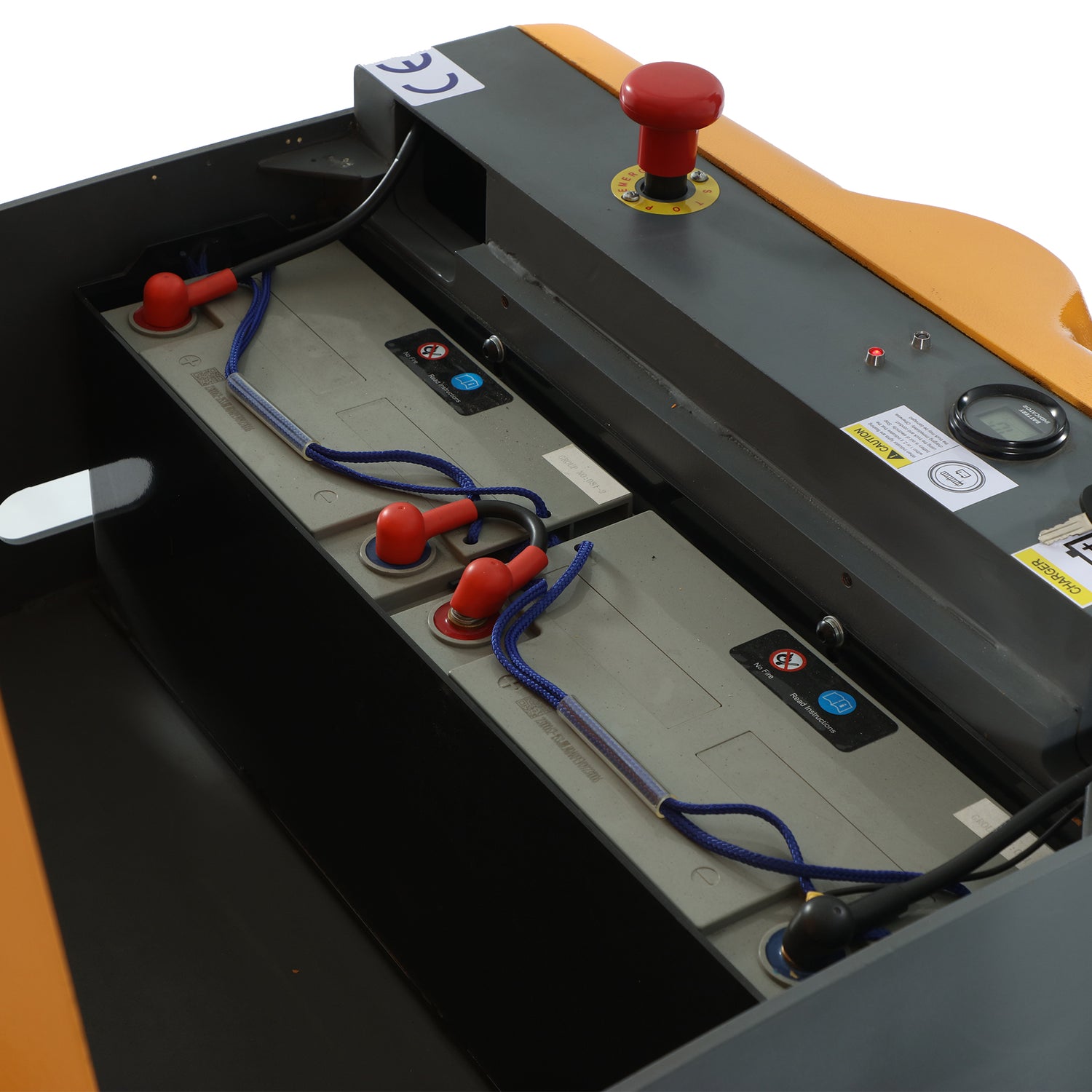

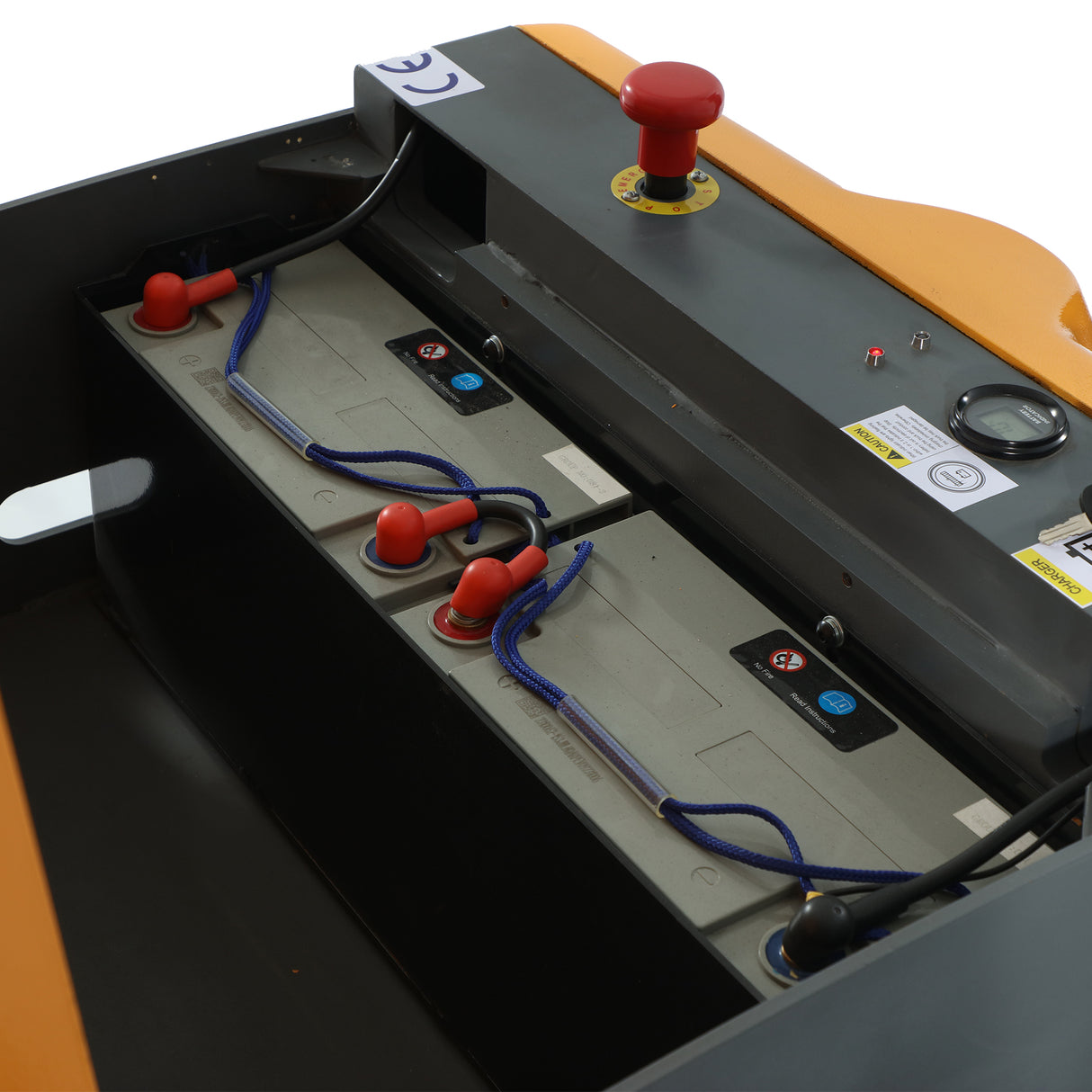

  • Battery Capacity
    125AH
  • Battery Spec
    24V/125AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    1.4"
  • Control System
    DC
  • Fork Lowered Height
    1.4"
  • Lowering Speed/Empty
    4.7 inch/s
  • Lowering Speed/Loaded
    3.9 inch/s
  • Service Weight
    3460 lbs.
  • Gross Weight
    3540 lbs.
  • Charger
    24V10A built-in
  • Charging Time
    8-10 Hours
  • Continuous Working Time
    6-8 Hours
  • Package Size
    59"x34"x86"

⚠️ Notice:

  • Before use: Forks must be installed. Installation Video: https://youtu.be/x9f5pDO8Jxg
  • Cannot be unloaded using a lift gate; a loading dock or a forklift on-site is required for delivery.
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product comparison

Counterbalanced Electric Stacker| | A-3048
Counterbalanced Electric Stacker
Counterbalanced Electric Stacker A-3031
Counterbalanced Electric Stacker
Counterbalanced Electric Stacker A-3032
Max.Lifting Height
Max.Lifting Height
118"
98"
118"
118"
118"
Capacity
Capacity
3300 lbs.
2200 lbs.
1200 lbs.
2200 lbs.
3300 lbs.
Battery Spec
Battery Spec
24V/125AH
24V/125AH
24V/105AH
24V/125AH
24V/280AH
Charger
Charger
24V10A built-in
24V/10A built-in
24V/10A built-in
24V/10A built-in
24V/40A built-out
Control System
Control System
DC
DC
DC
DC
AC

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
