* DOUBLE SCISSOR LIFT TABLES
*SINGLE SCISSOR LIFT TABLES
MODEL NO. | PLATFORM L*W | CAPACITY | HEIGHT LOWERED | HEIGHT RAISED | WHEEL DIAMETER | WT (LBS) | PRICE EACH |
A-2012 | 27*18" | 330 lbs | 9'' | 29.1'' | 3.9'' | 92 | $319 |
A-2001 | 32*20'' | 660 lbs | 11'' | 35.4'' | 5'' | 165 | $399 |
A-2002 | 32*20'' | 1100 lbs | 11'' | 35.4'' | 5'' | 187 | $459 |
A-2005 | 40*20'' | 1760 lbs | 16.5'' | 39.5'' | 6'' | 254 | $559 |
A-2013 | 39.4x19.7'' | 440 lbs | 13'' | 26.3'' | 7.8'' | 156 | $569 |
MOBILE LIFT TABLE WITH HUGE CAPACITY
- Foot pump hydraulically scissors lift table.
- Overload valve protects pump and operator.

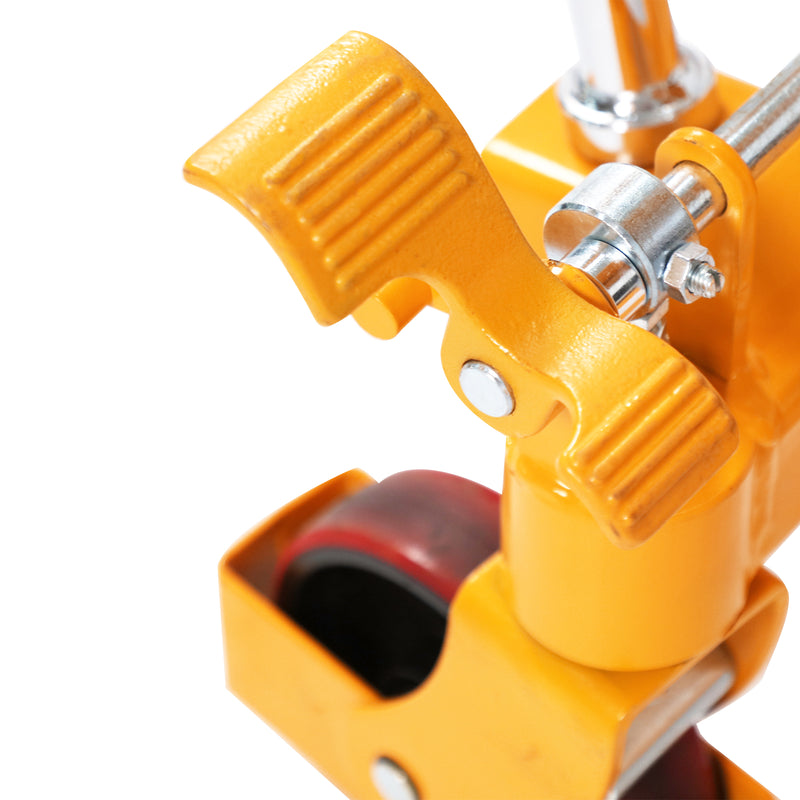

- Easy-release lever to lower.
DIMENSIONS:
- Capacity: 3300lbs
- Platform (Actual): 48.03"*24.01"*2.36" (L x W x Thickness)
- Height:
- Total height: 37.87"
- Min. height of table: 16.53"
- Max.lifting height: 39.37"
- Lifting height: 22.83"
- Wheel size: 5.9"(diameter)
- Overall length:54.29"
- Table Material: Steel
- Frame Material: Steel
- Brake Type: Foot brake
- Lift Control: Foot Pump
- Lift Mechanism: Hydraulic
- Yellow & black components are powder coated.
FEATURES:
- Number of Pumps to Reach Full Height: ≤70
- Handle plate provides protection from falling items.
