Product description

MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING

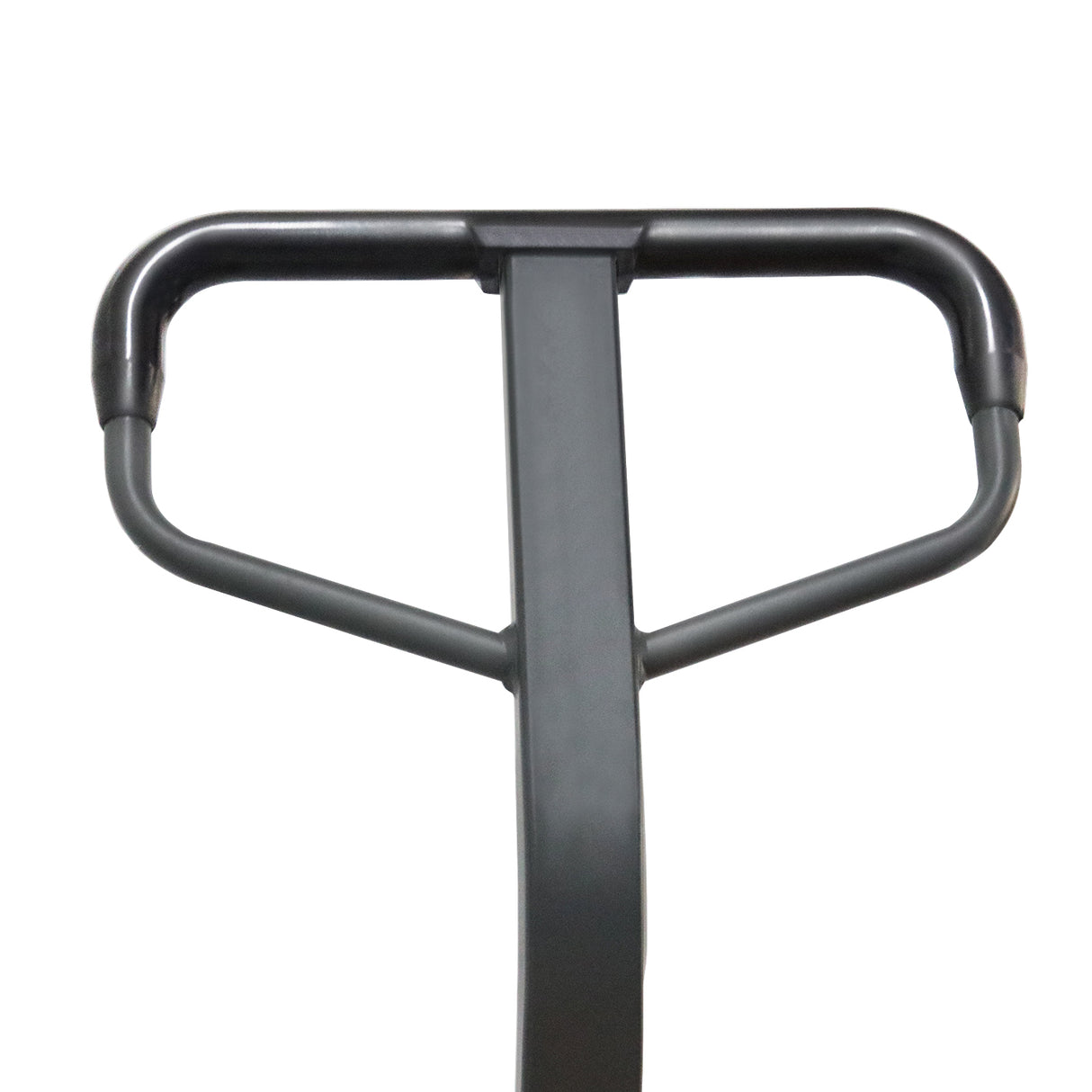

  • Special chain steering system.
  • Integrate panel design.
  • Foot pedal brake for safety and ramp usage.

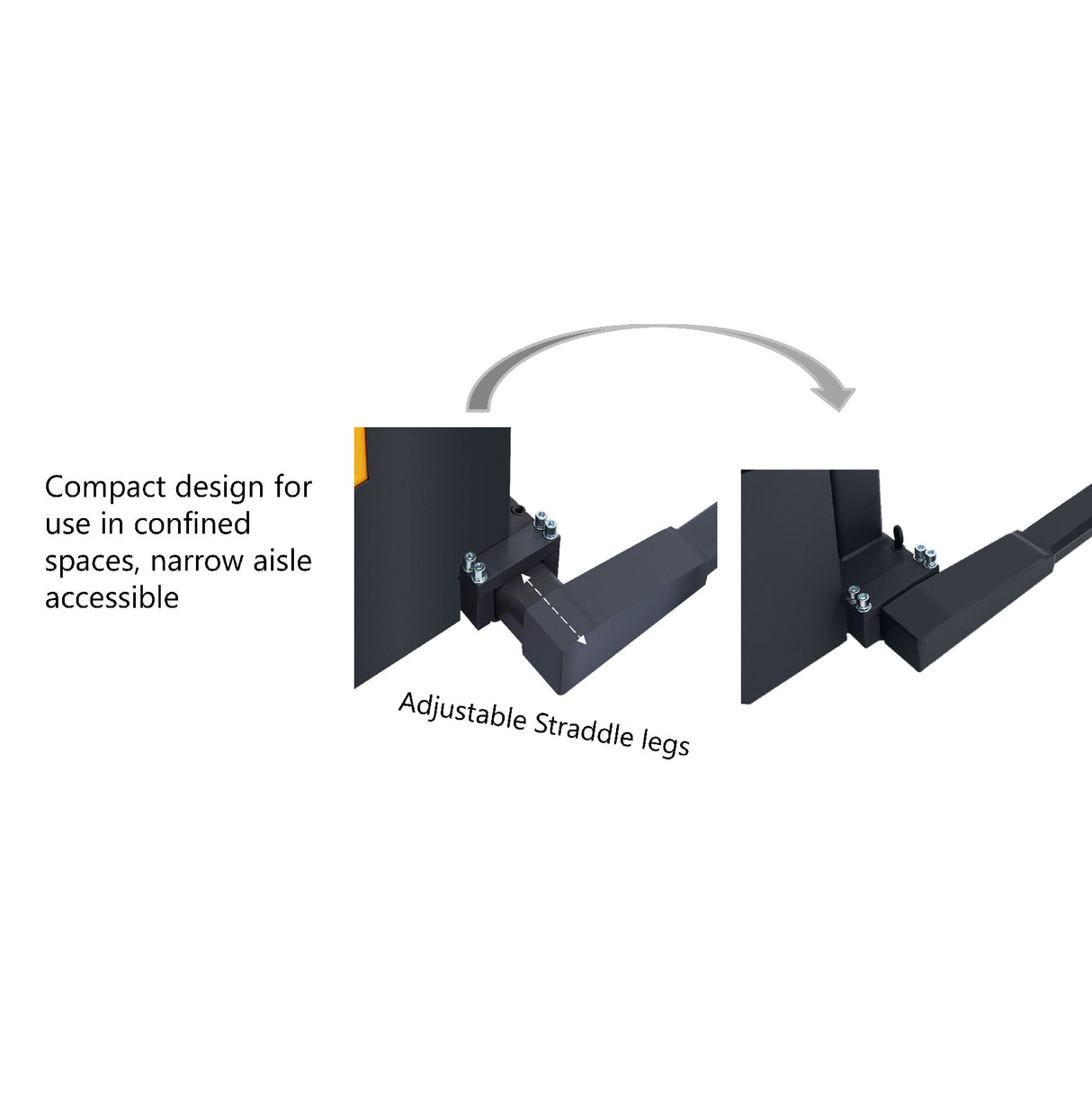

  • Adjustable forks and straddle legs.

*SEMI-ELECTRIC STACKER

MODEL NO. LOAD CAPACITY  BATTERY CAPACITY LIFTING HEIGHT FORK HEIGHT        LOWERED  WHEEL DIAMETER  WT (LBS)  PRICE EACH
A-3007 2,200 lbs 12V/120AH 98'' 3.5'' 7''/3.15'' 1045 $3837
A-3008 2,200 lbs 12V/120AH 118'' 3.5'' 7''/3.15'' 1078 $4037
A-3009 3,300 lbs 24V/120AH 63'' 3.5'' 7''/3.15'' 1005 $3587
A-3010 3,300 lbs 24V/120AH 118'' 3.5'' 7''/3.15'' 1168 $4237

*REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) PRICE EACH 2 PCS Price
S-1004 lead-acid  12V/120AH 99 $580 $1,120

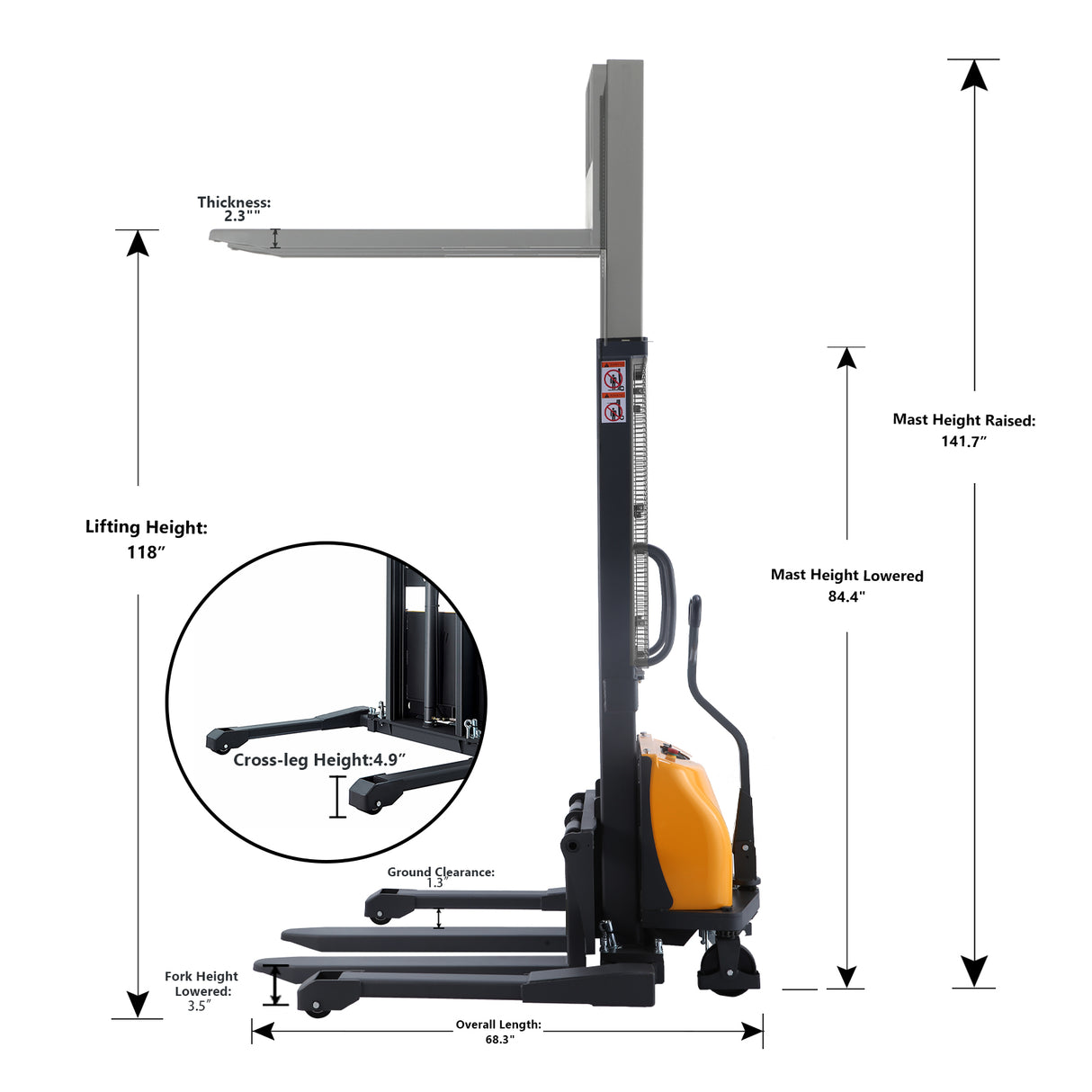

DIMENSIONS:

  • Overall Length: 72.2"
  • Overall Width: 44½"-60.3"
  • Recommended Aisle Width: 92.4"
  • Turning Radius:59.3"
  • Mast Height Lowered: 84.4"
  • Mast Height Raised: 141.7''
  • Load Center: 19.7"

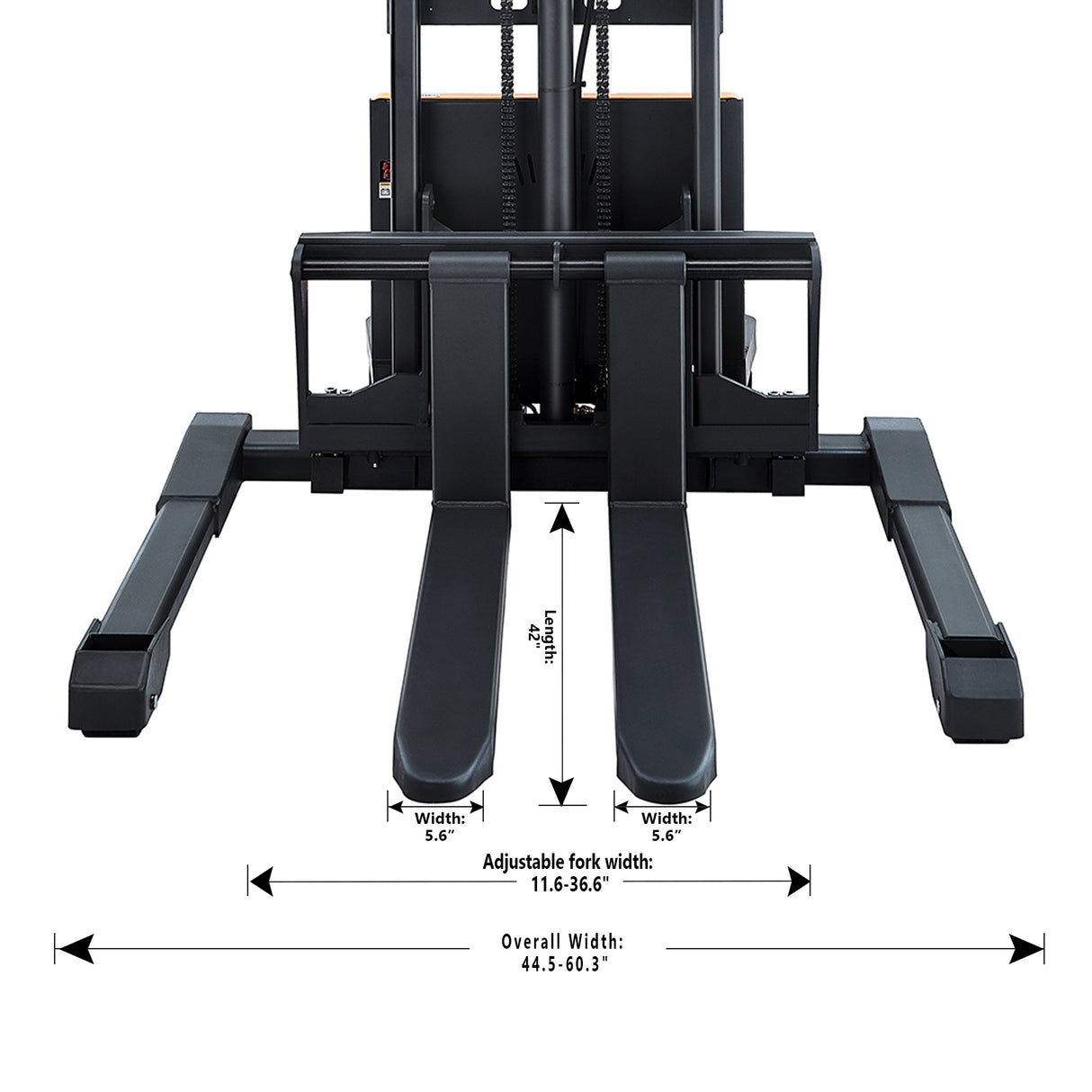

FORKS:

  • Thickness: 2.3''
  • Width: 5.6''
  • Length: 42''
  • Adjustable fork width: 11.6-36.6''
  • Leg inner width: 14.5''
  • Leg outer width: 22.4''

SPEED:

  • Lifting speed(laden/unladen): 2.7/3.9mph
  • Lowering speed(laden/unladen): 5.9/4.7mph

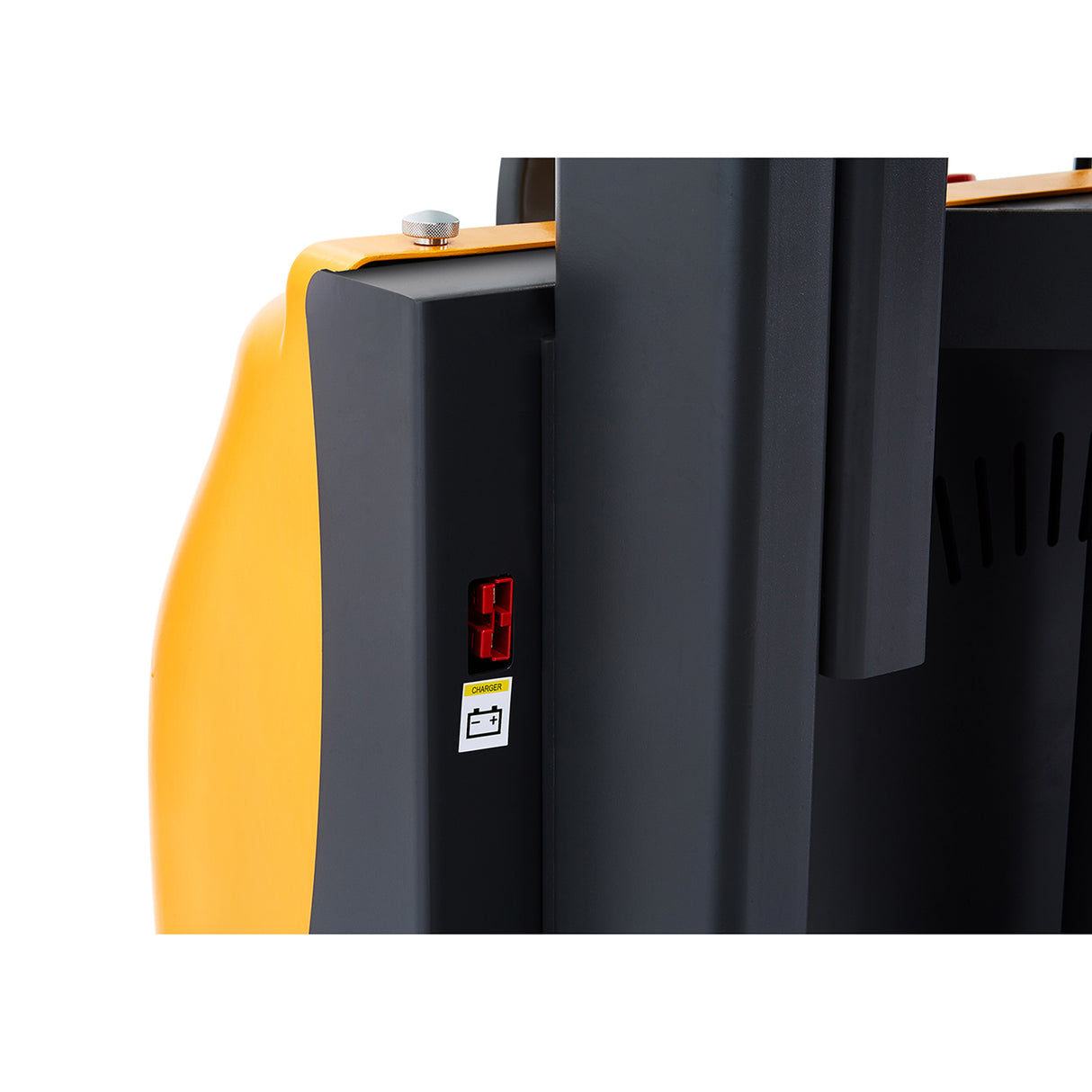

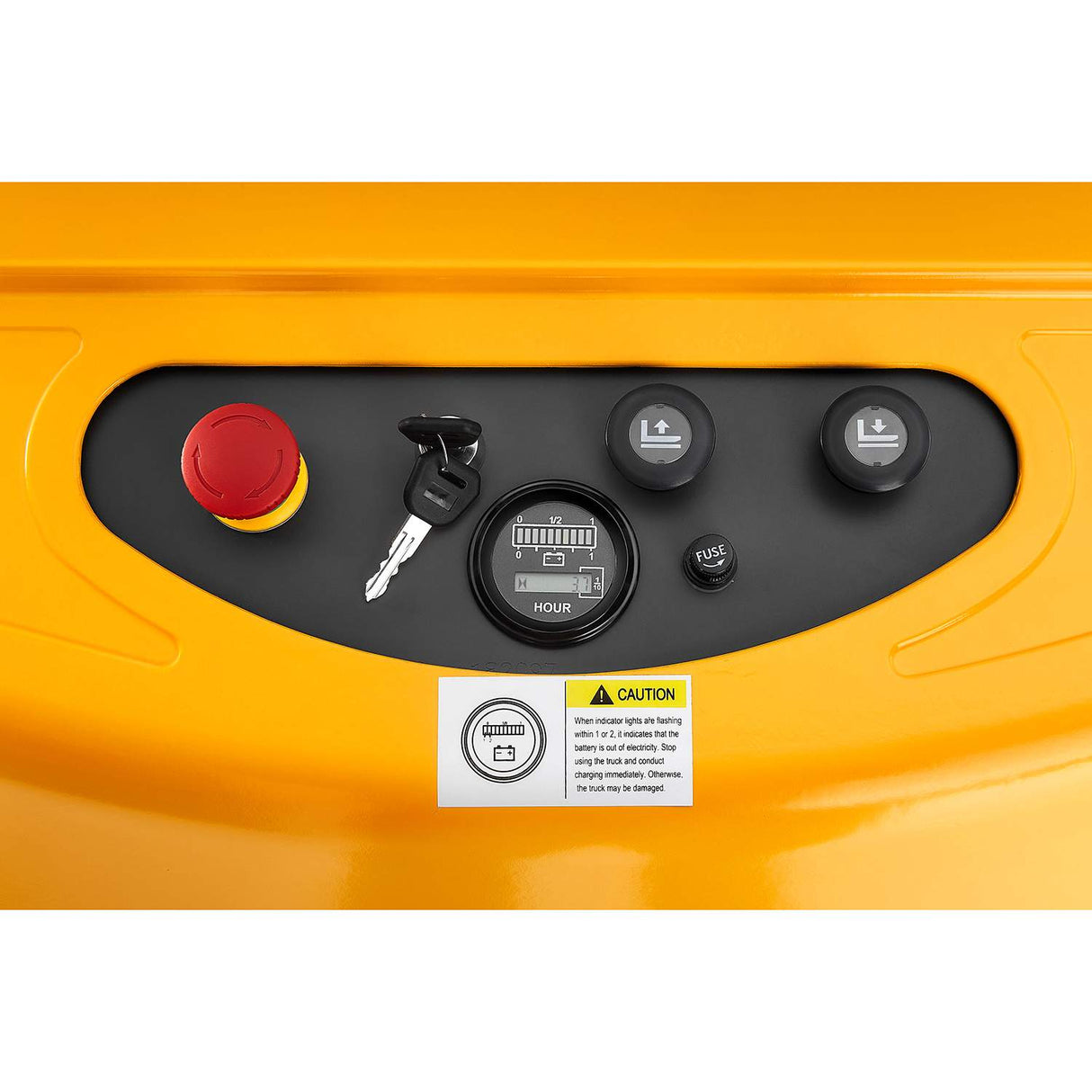

BDI:

  • Multi-function battery display indicator.
  • Red: the battery is less than 20% and  need to be charged, the truck can walk only, not lift.
  • Yellow: the battery is around 50%.
  • Green: the battery is full.

 SPECIFICATIONS:

  • Not explosion proof.
  • This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Fully charge battery before use to avoid damaging cells.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even it's not in use.
  • Time to fully charge battery: 8 - 10 hrs.
