Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019

SKU: A-3019
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Apollolift Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. 118" Lifting - APOLLOLIFT (6814931222696)
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019
Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019

Powered Forklift Full Electric Walkie Stacker 2200lbs Cap. Straddle Legs. 118" Lifting A-3019

SKU: A-3019
Type
Regular price $5,297.00
/
  • Excellent Quality
  • Professional after-sales service
  • Good packing
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Shipping calculated at checkout.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Forks are adjustable to fit most pallets.
  • Curtis (US Brand) Controller.
  • Use GEL battery free to maintain.
  • Both sides of button for lifting and lowering operation.

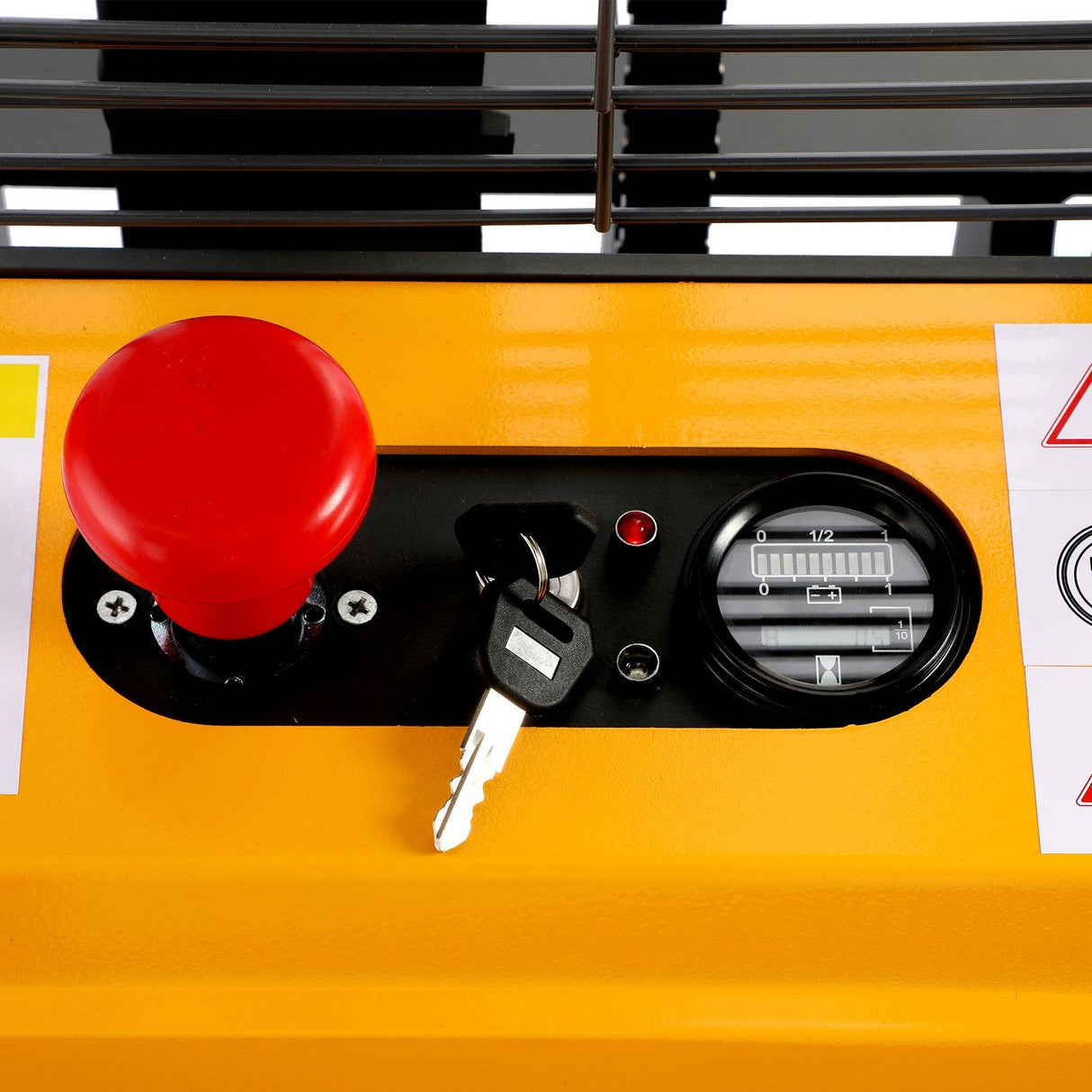

  • Multi-function display shows the working hours, battery status and low-voltage protection.

*FULLY POWERED STACKERS

MODEL NO. LOAD         CAPACITY  BATTERY CAPACITY HEIGHT           RAISED  WHEEL           DIAMETER  WT(LBS)  PRICE EACH
A-3017 2,200 lbs 24V/105AH 98'' 7.7"  1,225 $4897
A-3019 2,200 lbs 24V/105AH 118'' 7.7"  1,270 $5297
A-3020 2,640 lbs 24V/105AH 98'' 7.7"  1,250 $6097
A-3021 2,640 lbs 24V/105AH 118'' 7.7"  1,270 $6297
A-3022 3,300 lbs 24V/125AH 98'' 7.7"  1,420 $7247
A-3023 3,300 lbs 24V/125AH 118'' 7.7"  1,466 $7447

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) DIMENSIONS PRICE EACH 2 PCS PRICE
S-1005 Gel Battery 24V/105AH 115 10.2x6.6x8.5" $600 $1,150

DIMENSIONS

  • Overall Length: 70"
  • Recommended Aisle Width: 89.7"
  • Turning Radius : 58.7"
  • Mast Height Lowered: 84.4''
  • Mast Height Raised: 141.7"
  • Load center: 23.6"
  • Ground Clearance: 1.38"

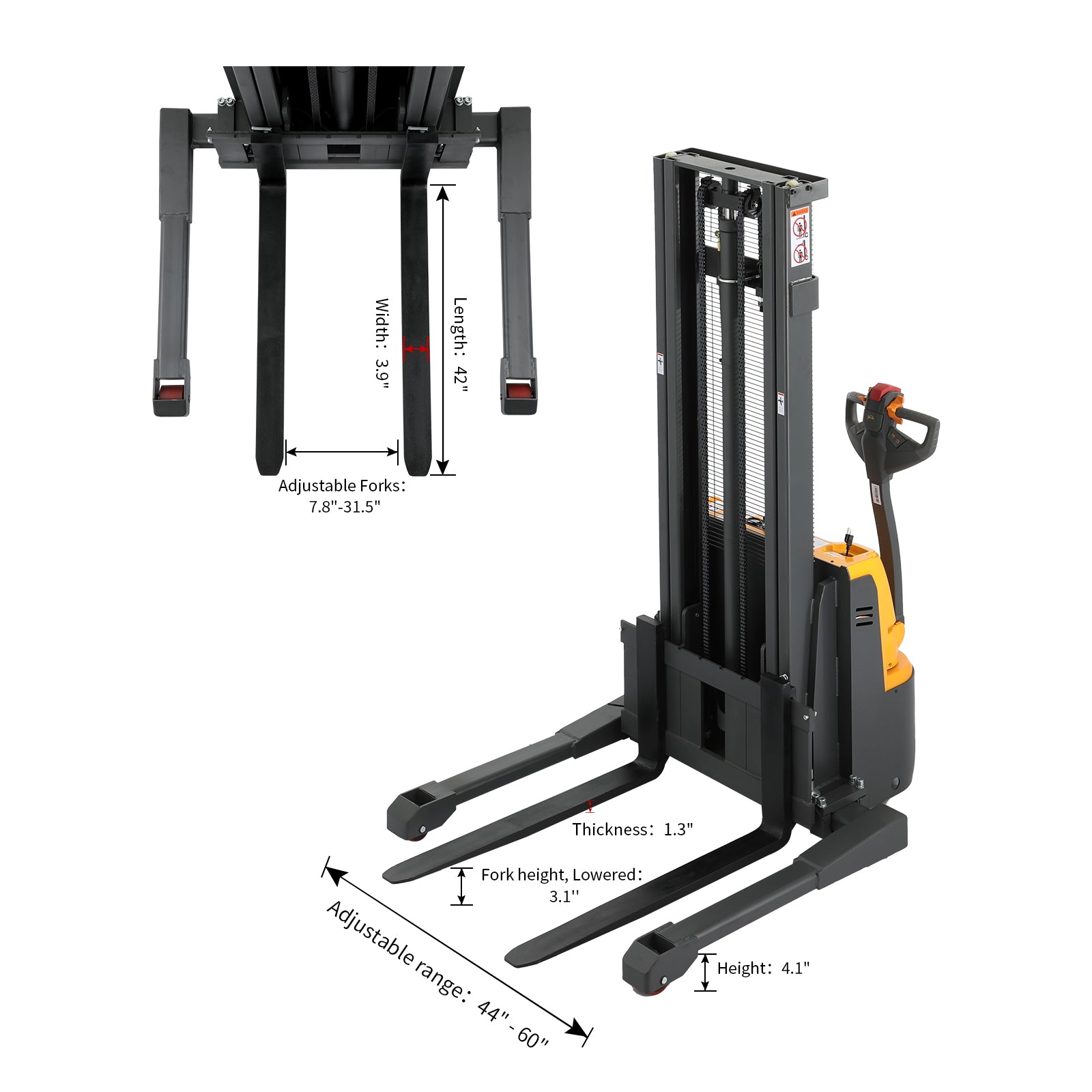

FORKS

  • Fork height, Lowered: 3.15''
  • Adjustable Forks: 7.8"-31.5"
  • Thickness: 1.3"
  • Width: 3.9"
  • Length: 42"

STRADDLE LEGS

  • Height: 4.1"
  • Adjustable range: 44" - 60"

FEATURES

  • Smooth rolling polyurethane wheels.180° steering arc.
  • 110V Built-in Charger.
  • 6 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.

SPEED

  • Travel speed(laden/unladen) : 2.8/3.1mph
  • Lifting speed(laden/unladen) : 3.5/5.5inch/s
  • Lowering speed(laden/unladen) : 4.7/3.9inch/s

SPECIFICATIONS

  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Temperature range of working environment below 50˚F~104˚F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.

Click Here :A-3019  Detail Page

Click Here :Assemble the forged fork of stackers.

Apollo Forklift provides 1 Year limited warranty upon the date of product’s receipt, easy-wearing parts and human damages are not covered by warranty. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty.
1- Within 30 days of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided. In case our after-sale department determines the product needs to return for repair, all round-trip shipping costs will be borne by us."

2- Within 30 days-1 year of the receipt, if the product exists any quality problem, free replacement parts and professional remote technical guidance will be provided, if the product needs to return for repair as necessary, the customer needs to bear half of the shipping costs.
3- After 1 year of the receipt, if the product exists any quality problem, free technical guidance will be provided, however the customer needs to pay for the replacement parts, and if needs to return for repair, related maintenance costs as well as all round-trip shipping costs will be charged, which will be quoted in depends

Please note for spare parts orders, the warranty period is 3months, battery is 6months.
