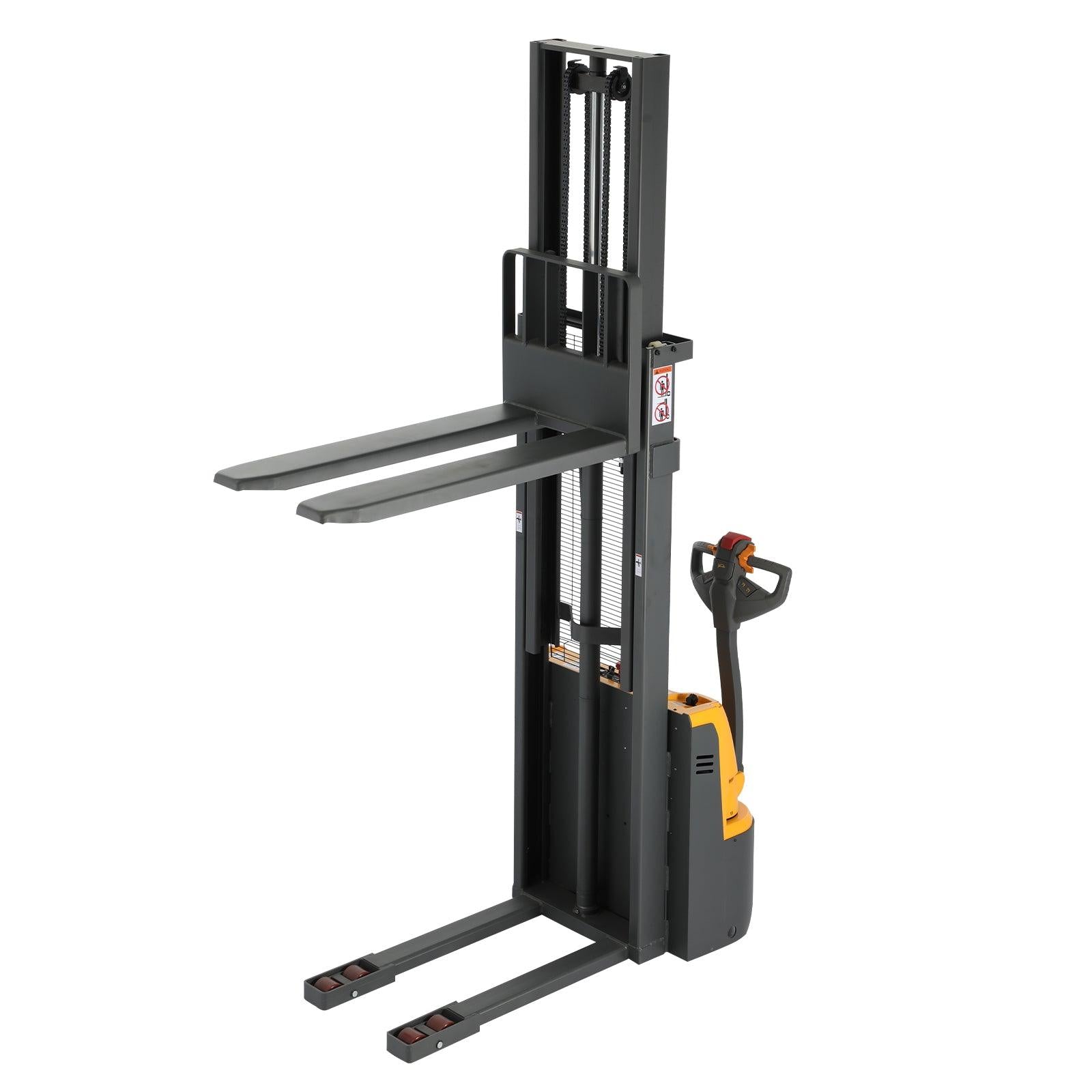

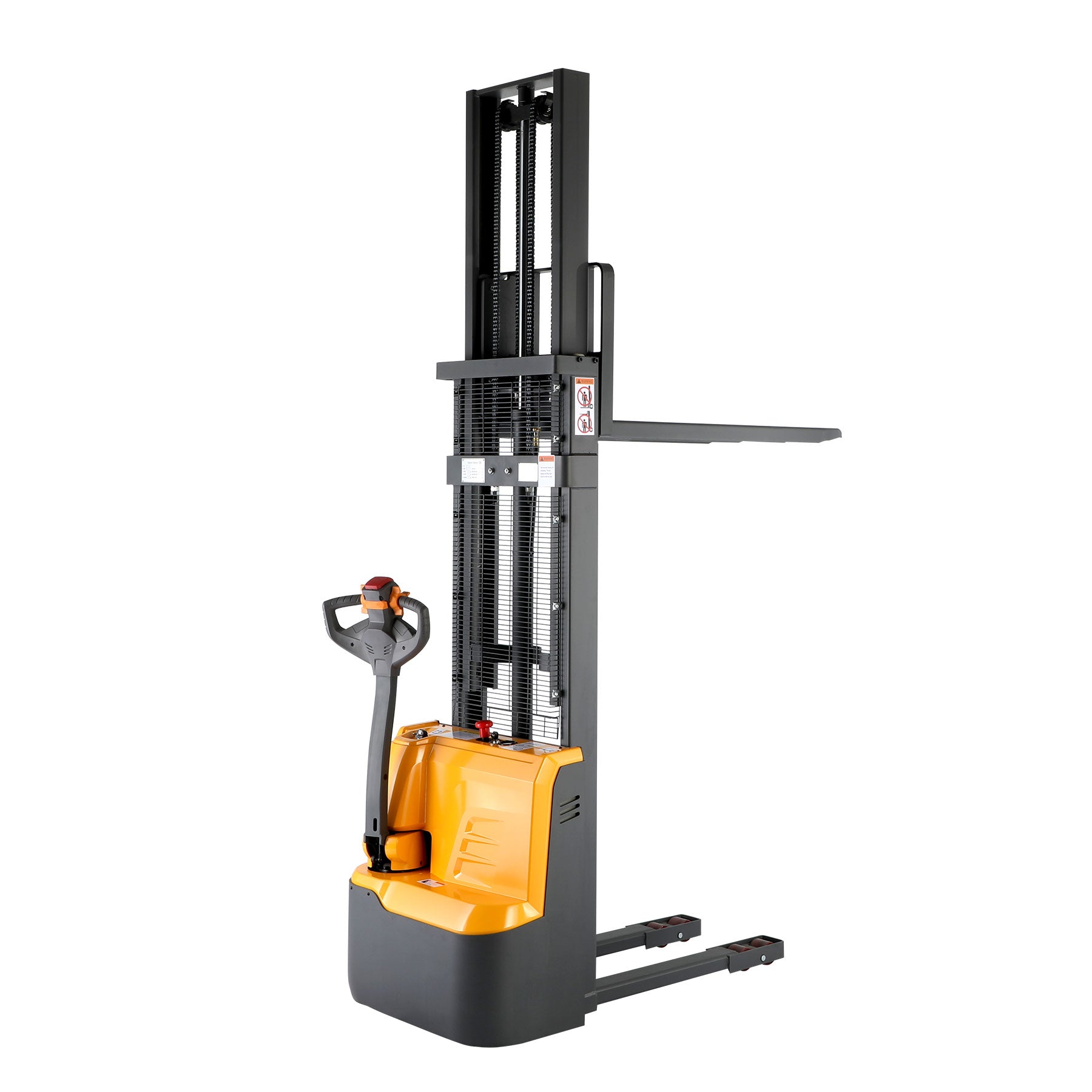

Fully Powered Electric Stacker 2640lbs Cap. Fixed Legs. 98" Lifting

APOLLOLIFT SKU: A-3026
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting
Wix CTD pallet.jpeg
Fully Powered Electric Stacker  2640lbs Cap. Fixed Legs. 98" Lifting

Fully Powered Electric Stacker 2640lbs Cap. Fixed Legs. 98" Lifting

APOLLOLIFT SKU: A-3026
Type
Regular price $5,368.00
/
  • Excellent Quality
  • Professional after-sales service
  • Good packing
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Shipping calculated at checkout.

 THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Curtis (US Brand) Controller.

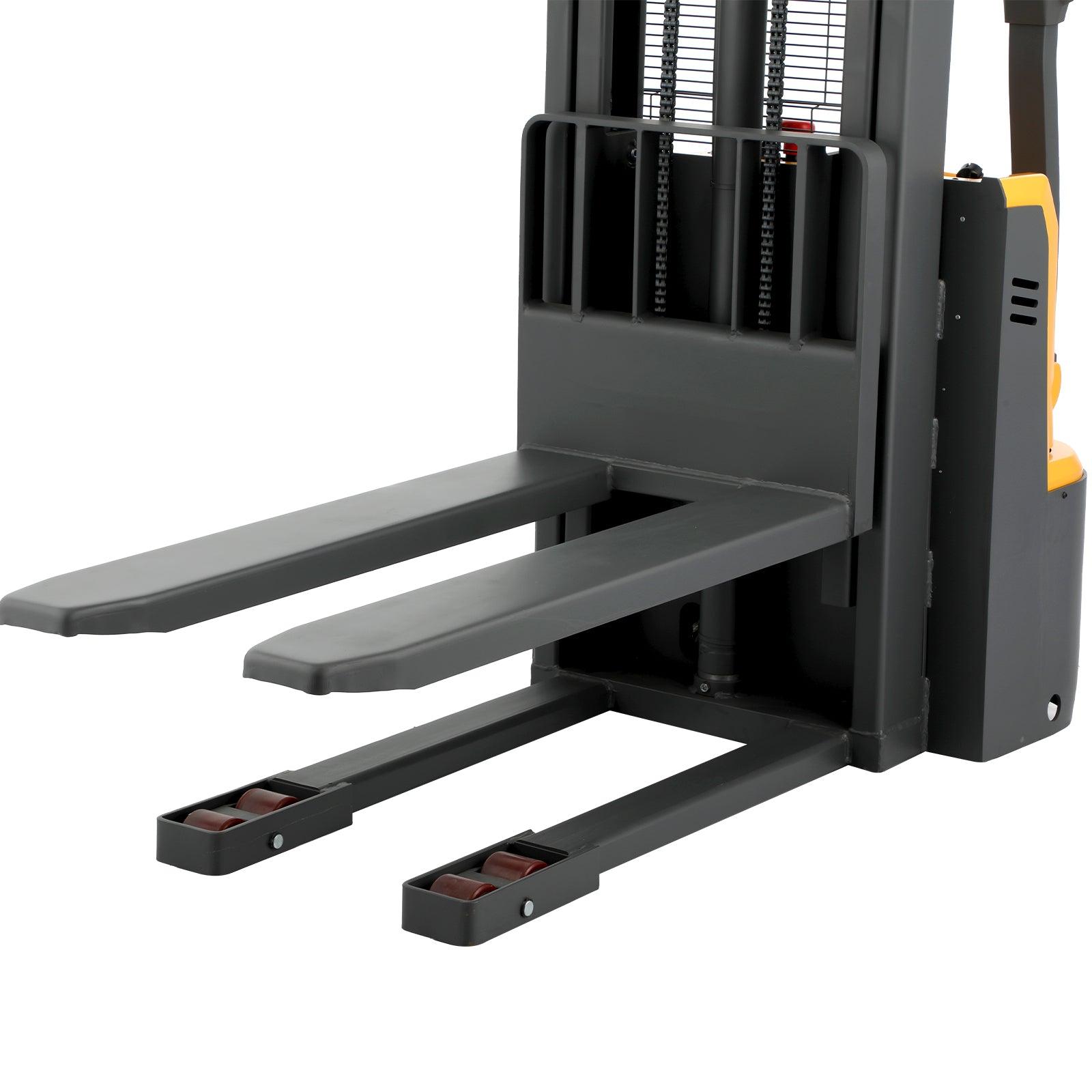

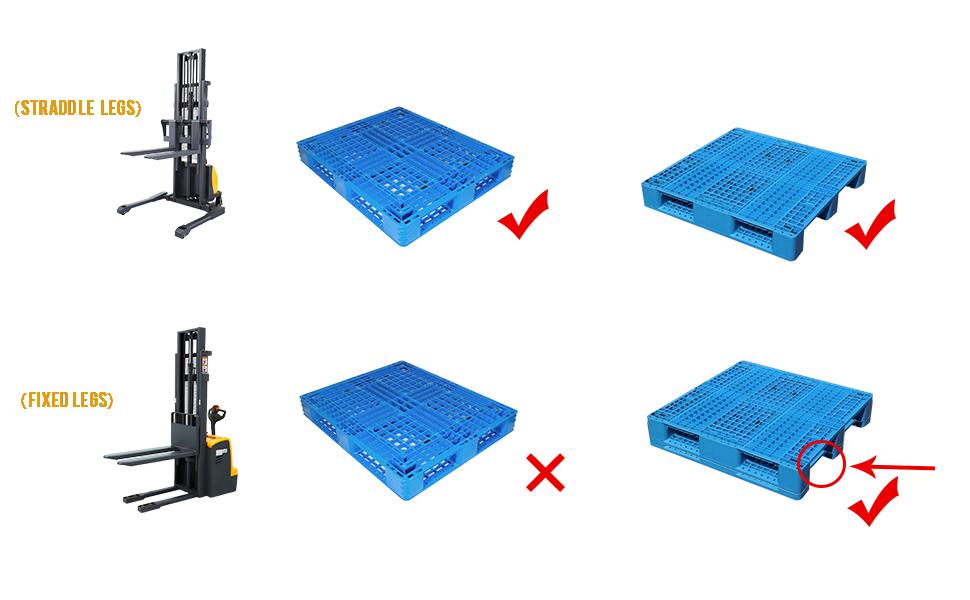

  • Fixed forks suits for EU type pallet.
  • Both sides of button for lifting and lowering operation.
  • Red dot and IF design award winner

*FULLY POWERED STACKER

MODEL NO. LOAD CAPACITY  BATTERY CAPACITY LIFTING HEIGHT HEIGHT        LOWERED  WHEEL           DIAMETER  WT (LBS)  PRICE EACH
A-3024 2,200 lbs 24V/105AH 98'' 3.5'' 7.7"  1,400 $5018
A-3025 2,200 lbs 24V/105AH 118'' 3.5'' 7.7"  1,474 $5268
A-3026 2,640 lbs 24V/105AH 98'' 3.5'' 7.7"  1,470 $5368
A-3027 2,640 lbs 24V/105AH 118'' 3.5'' 7.7"  1,540 $5518

*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) DIMENSIONS PRICE EACH 2 PCS PRICE
S-1005 Gel Battery 24V/105AH 115 10.2x6.6x8.5" $600 $1,150

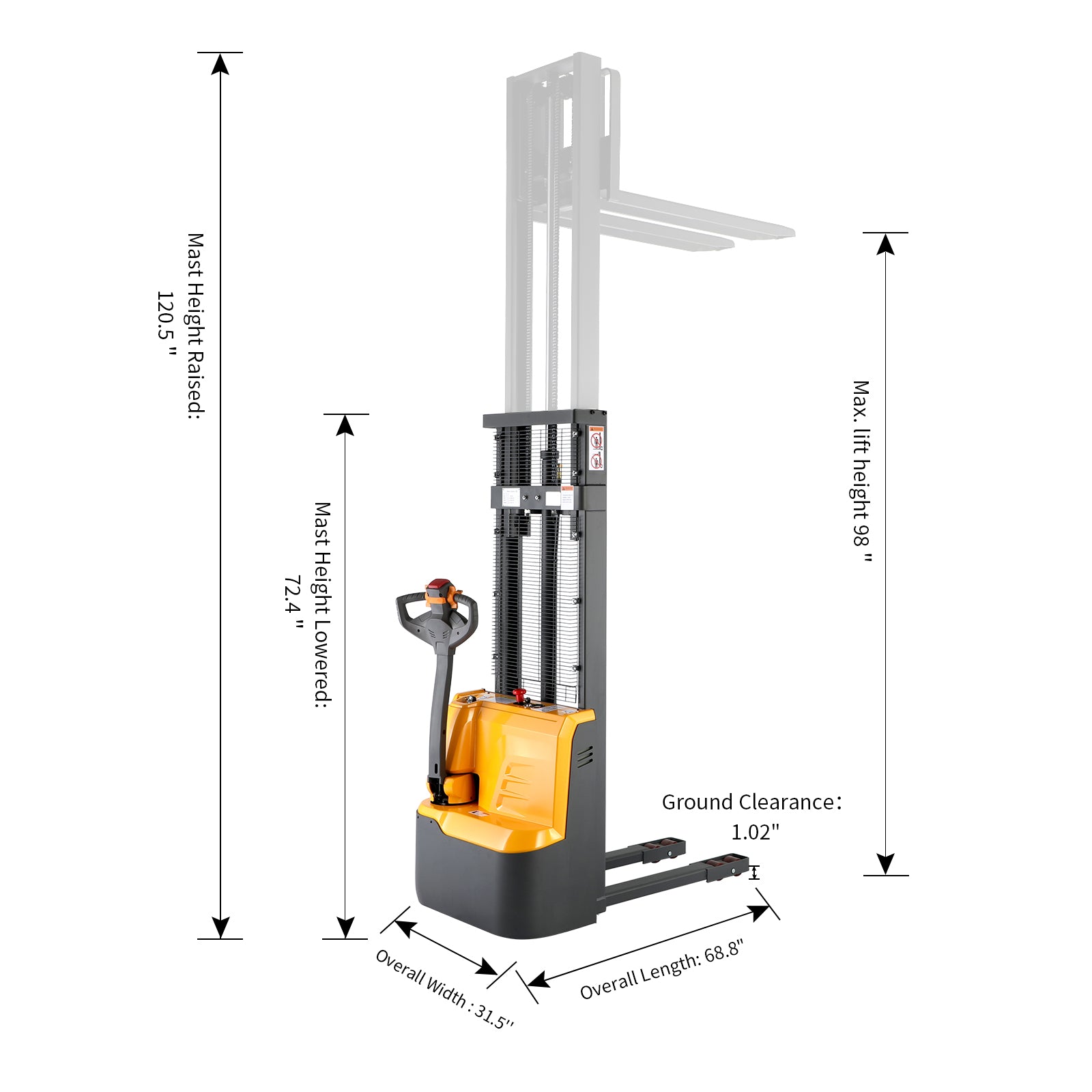

DIMENSIONS

  • Overall Length:68.8"
  • Overall Width: 31.5''
  • Recommended Aisle Width:87.3"
  • Turning Radius: 53.7"
  • Mast Height Lowered:72.4''
  • Mast Height Raised: 120.5''
  • Load Center: 23.6"

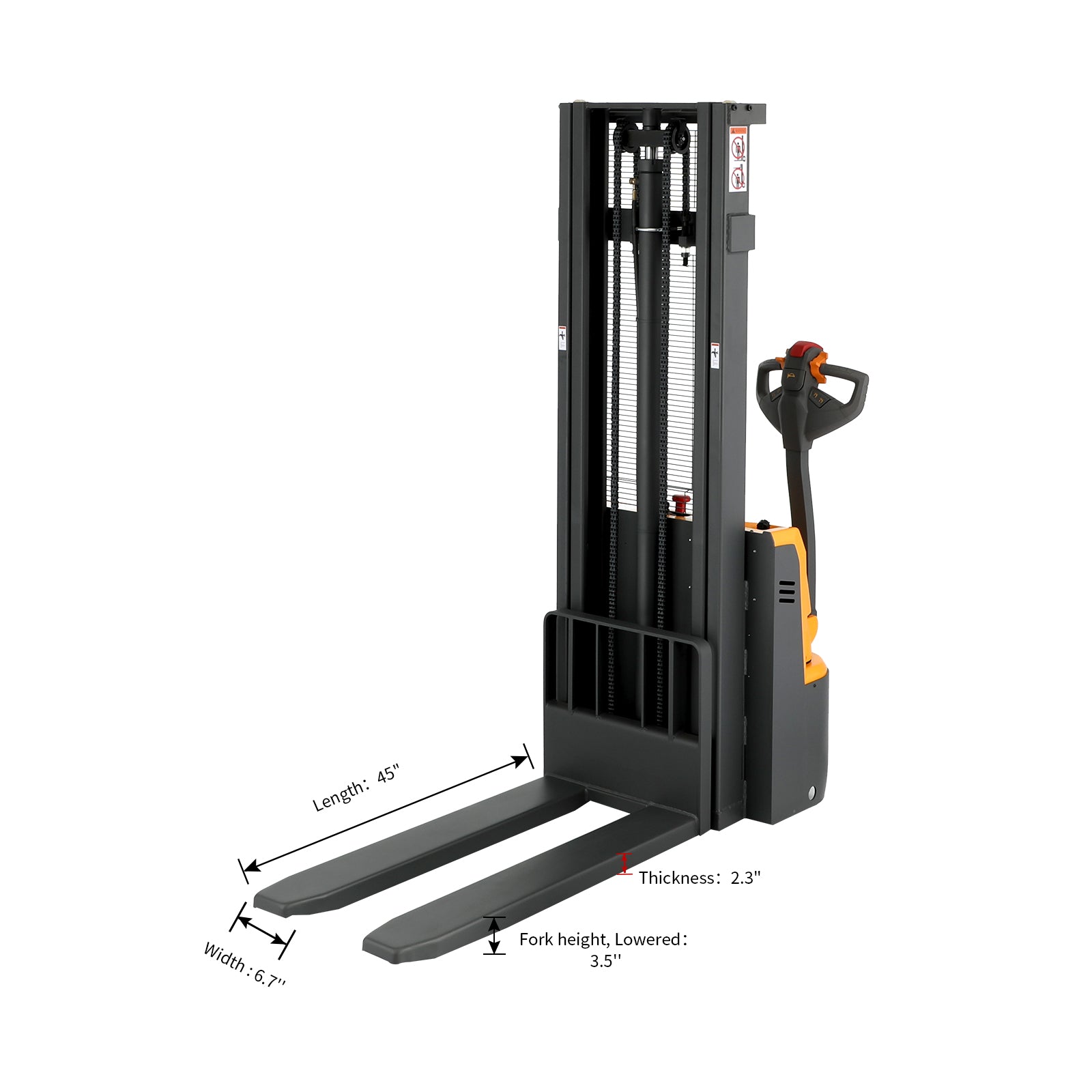

FORKS

  • Fork height, Lowered: 3.5''
  • Thickness: 2.3''
  • Width: 6.7''
  • Length: 45''

FEATURES

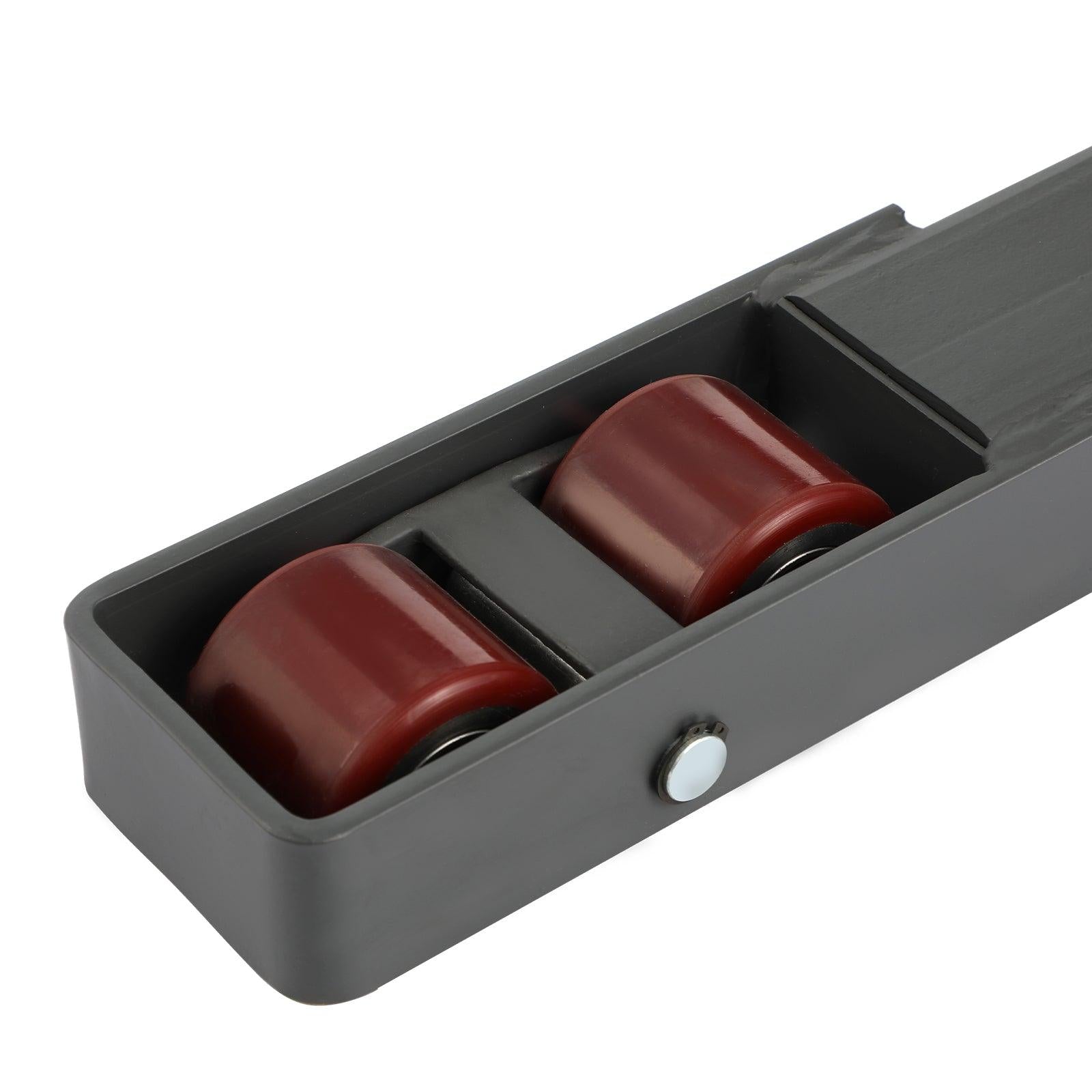

  • Smooth rolling polyurethane wheels.180° steering arc.
  • 110V Built-in Charger.
  • 6 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.

SPEED

  • Travel speed(laden/unladen) : 2.8/3.1mph
  • Lifting speed(laden/unladen) : 3.5/5.5inch/s
  • Lowering speed(laden/unladen) : 4.7/3.9inch/s

SPECIFICATIONS

  • Not explosion proof.
  • This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Temperature range of working environment below 50˚F~104˚F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the truck once a month even it's not in use.

Click Here :A-3026  Detail Page
Click Here :Assemble the welded fork.
